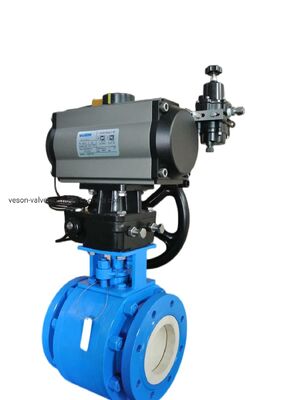

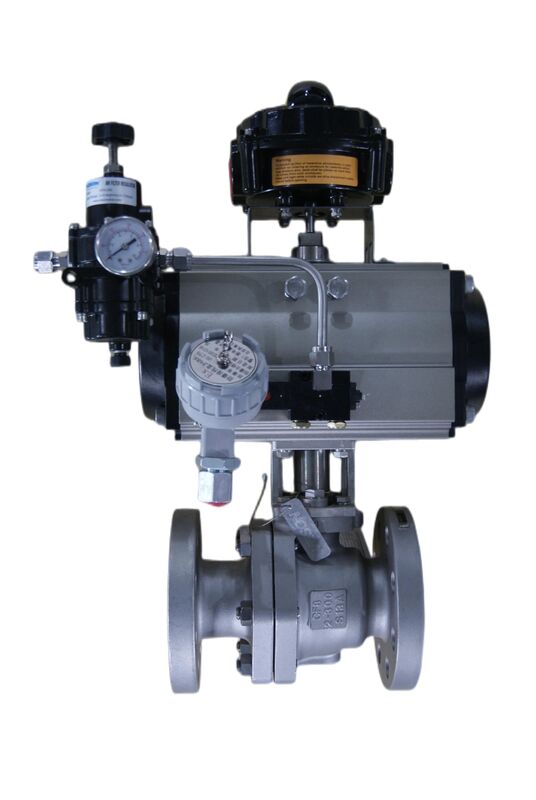

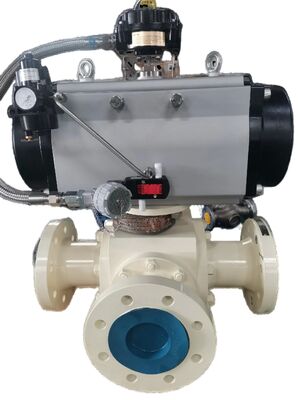

316 Stainless Steel Full Port Pneumatic Ball Valve with ISO5211 Mounting for Industrial Applications
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Connection Form: | Flange | Driving Mode: | Pneumatic |
|---|---|---|---|
| Nominal Pressure: | JIS10-20K | Channel: | Straight Through Type |
| Structure: | Floating Ball Valve | Type: | Floating Ball Valve |
| Function: | Blow-Down Valve | Temperature: | Normal Temperature |
| Application: | Industrial Usage | Transport Package: | Plywood Case Package Or Carton Case Package |
| Specification: | 1 Inch-12 Inch | Trademark: | VESON Or Cusomer"s |
| Origin: | China | HS Code: | 8481804090 |
| Production Capacity: | 50000PC / Y | ||
| Highlight: | 316 Stainless Steel Pneumatic Ball Valve,Full Port Actuated Ball Valve,ISO5211 Mounting Flanged Ball Valve |
||
Product Description
Veson air actuated ANSI 150# stainless steel flanged ball valves are designed for general chemical and industrial applications. Full port 2-piece designed investment cast valve direct mounts to the actuator with standard ISO5211 mounting pad. Double acting actuators use an air pressure signal (80-120 PSI) to open and close the valve. High temperature valve mounting kit available for extended temperature range or wall mounting applications. Ball valve can be mounted in any orientation. All valves are tested per API 598.
Ball Valve Standard Features
Blow out proof stem
Ball Valve Standard Features
Full port for unrestricted flow
316 stainless steel body, ball and stem
Blow out proof stem
RTFE ball seats extend cycle life
Triple RTFE/Viton stem seal design, live loaded and adjustable
ISO5211 direct mounting
Anti-Static Design
Pneumatic Actuator Standard Features
Extended cycle life (1 million cycles)
Quarter turn rack & pinion design
Highly visible valve position indicator
Dry or lubricated pilot air
Factory lubricated for normal life
Anodized aluminum body with epoxy-polyester coated end covers
Namur & ISO mounting
Options (see Accessories tab)
