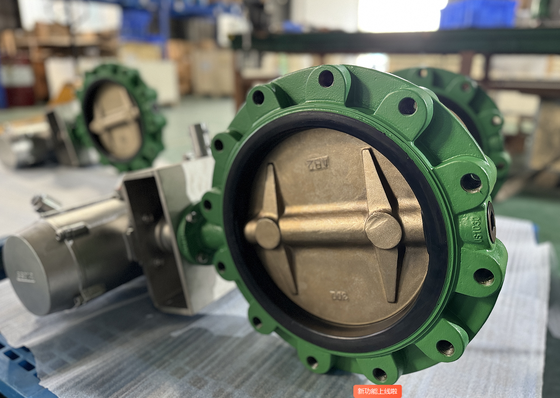

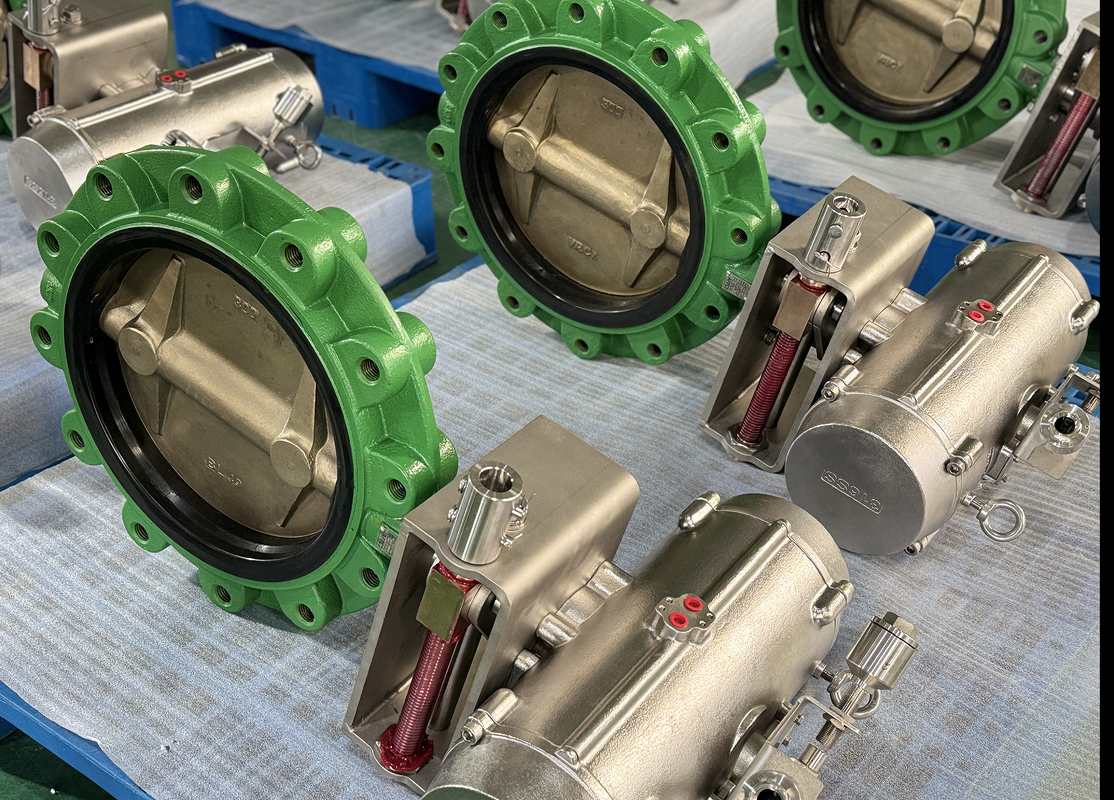

12 Inch ANSI 150lb Lug Butterfly Valve Precision Configured with NBR Seat Remote Valve Operation
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | VESON |
| Certification: | ISO 9001:2015 SGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | USD 150-3500 / Piece |
| Packaging Details: | VESON branded plywood case with shock-proof foam insert, export-grade packaging |
| Delivery Time: | 3-5 working days for stock, 15-25 days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 3000 Pieces per Month |
|
Detail Information |
|||
| Valve Type: | Lug Butterfly Valve | Size: | 12 Inch (DN300) |
|---|---|---|---|
| Pressure Rating: | ANSI 150lb (PN16) | Body Material: | Ductile Iron GGG40 Epoxy Coated |
| Disc Material: | SS416 / SS316 / Duplex | Seat Material: | NBR |
| Operation: | VSM Remote Gear Transmission | Flange Standard: | ANSI B16.5 Class 150 |
| Certificate: | ABS Marine Classification | Application: | Marine, Water Treatment, HVAC |
| Highlight: | Lug Butterfly Valve,NBR Seat Remote Gear,12 Inch ANSI 150lb |
||
Product Description
12-Inch ANSI 150lb Lug Butterfly Valve with NBR Seat and VSM Remote Transmission
The VESON 12-Inch ANSI 150lb Lug Butterfly Valve is engineered for marine and heavy industrial applications requiring reliable shutoff and flow regulation. Featuring a ductile iron body with NBR seat, SS416 disc, and VSM remote gear transmission system, this valve is ABS-certified for shipboard and offshore installations.
Key Features
- Lug Type Design: Threaded insert lugs allow downstream dismantling without affecting upstream pipeline integrity
- NBR Seat: Excellent resistance to oils, fuels, and hydrocarbons making it ideal for marine bilge and ballast systems
- VSM Remote Transmission: Worm gear operator with extended spindle for remote manual operation through decks and bulkheads
- ABS Certificate: Full ABS marine classification approval for shipboard piping systems
- Epoxy Coated Body: Fusion-bonded epoxy coating provides superior corrosion protection in saltwater environments
Technical Specifications
| Parameter | Specification |
| Valve Type | Lug Butterfly Valve |
| Size | 12 Inch (DN300) |
| Pressure Rating | ANSI 150lb (PN16) |
| Body Material | Ductile Iron GGG40 Epoxy Coated |
| Disc Material | SS416 / SS316 / Duplex |
| Seat Material | NBR |
| Stem Material | SS420 / SS316 |
| Operation | VSM Remote Gear Transmission |
| Flange Standard | ANSI B16.5 Class 150 |
| Operating Temperature | -20°C to +90°C |
| Certificate | ABS, ISO 9001:2015, SGS |
Target Applications
- Shipboard ballast and bilge systems
- Marine engine cooling water lines
- Offshore platform firewater systems
- Water treatment plant isolation
- HVAC chilled water systems
Each valve undergoes factory hydrostatic shell and seat leakage testing per API 598. ABS certificate, material test reports, and NDE documentation included.
