Marine-Grade Pneumatic Actuated Butterfly Valve Package Certified with ABS Certificate Anti-Corrosion Coating
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | VESON |
| Certification: | ISO 9001:2015 SGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | USD 150-3500 / Piece |
| Packaging Details: | VESON branded plywood case with shock-proof foam insert, export-grade packaging |
| Delivery Time: | 3-5 working days for stock, 15-25 days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 3000 Pieces per Month |
|
Detail Information |
|||
| Valve Type: | Marine Butterfly Valve (Wafer / Lug / Flanged) | Size Range: | DN50 To DN600 (2" To 24") |
|---|---|---|---|
| Pressure Rating: | ANSI 150lb (PN16) | Body Material: | Ductile Iron GGG40 Marine Epoxy Coated |
| Disc Material: | SS316 / Duplex / Aluminum Bronze | Seat Material: | NBR / EPDM / Viton |
| Actuator Type: | Smart Electric Multi-Turn Actuator | Enclosure Rating: | IP68 Submersible |
| Control Protocol: | 4-20mA Modulating / Modbus RTU | Coating: | Marine-Grade Anti-Corrosion Epoxy (300μm DFT) |
| Certificate: | ABS, ISO 9001:2015, SGS | ||
| Highlight: | Marine-Grade Butterfly Valve,Electric Actuator Package,ABS Certified Anti-Corrosion |
||
Product Description
Product Description

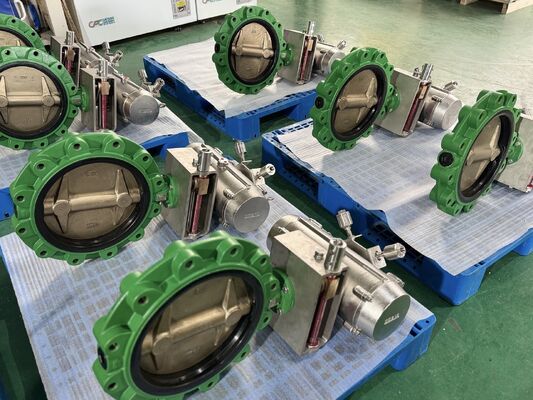

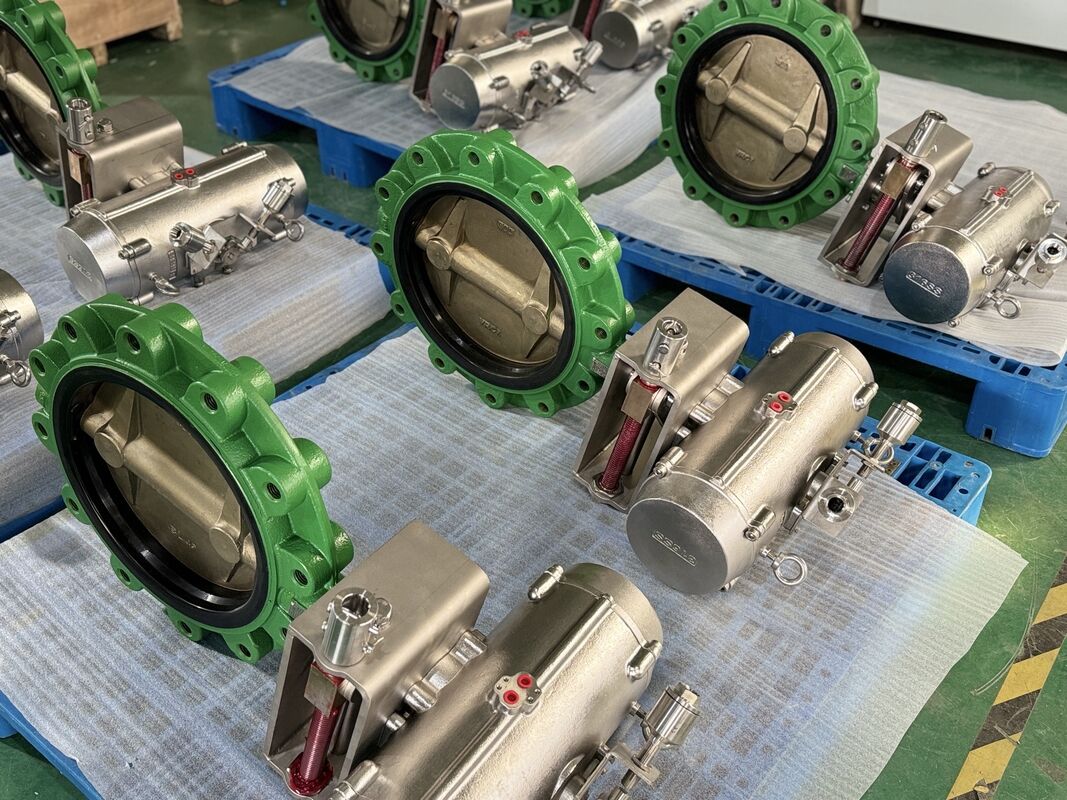

The 12" Lug Style Butterfly Valve (DN300, ANSI Class 150) is an industrial-grade flow control solution specifically engineered for harsh marine, offshore, and seawater environments. Manufactured with a Ductile Iron JS1030 body, a Nickel Aluminum Bronze (AB2) disc, and a durable NBR seat, this valve offers exceptional resistance to seawater corrosion, cavitation, and mechanical wear.
Equipped with an ISO 5211 top works, an intermediate handwheel operating mechanism, a VSM valve remote transmission device, and a 316SS bracket for linear-to-rotary proximity switches, it provides seamless switching between local manual operation and remote control in inaccessible areas. Fully tested and certified with ABS (American Bureau of Shipping) Type Approval.
Technical Specifications
Feature / Parameter
Detail / Material Standard
Nominal Diameter
12 Inch / DN300
Body Style
Lug Type (Bare Stem with ISO 5211 Mounting)
Pressure Rating
ANSI Class 150 / 150LB (PN16/PN20 equivalent)
Body Material
Ductile Iron JS1030 (EN-GJS-400-15 / GGG40)
Disc Material
AB2 Aluminum Bronze (CuAl10Fe5Ni5 Marine Grade)
Seat / Liner
NBR (Nitrile Rubber - Bubble Tight Shutoff)
Remote Transmission
VSM Valve Remote Control System / Flexible Shaft Device
Manual Override
Gearbox Handwheel Mechanism (Between Actuator and Valve)
Switch Accessories
316 Stainless Steel Bracket (Linear to Rotary Conversion)
Feedback Signal
Passive Dry Contact Proximity Switch
Marine Certification
ABS Inspection & Factory Acceptance Test (FAT)
Why Choose This Marine Lug Butterfly Valve Assembly?
1. Superior Seawater Corrosion Resistance
The combination of a JS1030 ductile iron housing and an AB2 Nickel-Aluminum Bronze disc makes this 12-inch butterfly valve ideal for seawater intake, ballast systems, and marine cooling lines. The resilient NBR seat delivers zero-leakage bidirectional sealing.
2. VSM Remote Operation for Inaccessible Areas
When installed in deep hull compartments, narrow pipe trenches, or hazardous areas, the integrated VSM remote transmission device allows operators to control the valve safely from a distance via a flexible reach rod/cable system.
3. Integrated Handwheel Manual Override
Featuring standard ISO 5211 top works, the intermediate handwheel operating mechanism ensures smooth manual override capabilities during power losses or routine maintenance without disconnecting the primary actuator.
4. Precision Signal Feedback System
Equipped with a custom 316SS travel converter bracket, the valve accurately translates linear travel signals into rotary switch activation, sending passive dry contact status feedback directly to your shipboard PLC or SCADA system.
5. ABS Certified Quality Assurance
Every unit undergoes rigorous hydrostatic shell, seat leakage, and functional testing witnessed and certified under ABS (American Bureau of Shipping) standards.
Industrial Applications
Shipbuilding & Marine Engineering: Ballast Water Treatment Systems (BWTS), Bilge Stripping, Seawater Circulation, Firemain Lines.
Offshore Platforms & FPSO: Hazardous zone fluids control, deep compartment remote valve operation.
Desalination & Water Infrastructure: High-salinity raw water pumping stations and industrial wastewater treatment.
12" Lug Style Butterfly Valve Technical Specifications
Specification Category
Parameter
Standard / Material / Description
Basic Information
Valve Type
Bare Stem Lug Style Butterfly Valve
Nominal Size
12 Inch / DN300
Pressure Rating
ANSI Class 150 / 150LB
Top Flange Mounting
ISO 5211 Standard Top Works
Marine Approval
ABS (American Bureau of Shipping) Certified
Material Specifications
Body Material
Ductile Iron JS1030 (EN-GJS-400-15 / GGG40)
Disc Material
Nickel Aluminum Bronze AB2 (CuAl10Fe5Ni5)
Seat / Liner
NBR (Nitrile Rubber - Bi-directional Zero Leakage)
Bracket Material
316 Stainless Steel (316SS)
Operating & Control Systems
Manual Override
Handwheel Operating Mechanism (Mounted between Actuator & Valve)
Remote Operation
VSM Valve Remote Transmission Device (Flexible Drive System)
Position Feedback
Passive Dry Contact Proximity Switch
Switch Adapter
Heavy-duty 316SS Bracket for Linear-to-Rotary Travel Conversion
Application & Performance
Applicable Media
Seawater, Ballast Water, Fresh Water, Mild Chemicals
Operating Conditions
Remote Operation in Confined, Inaccessible, or Hazardous Marine Spaces
