Pneumatic Butterfly Valve with EPDM Seal Mid-Pressure Lug Support Air Actuated Lug Butterfly Valve
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Connection Form: | Lug Support | Structure: | Centre Sealing |
|---|---|---|---|
| Seal Form: | EPDM | Valve Stem: | Normal |
| Work Pressure: | Mid-Pressure (2.5mpa< Pn <6.4mpa) | Working Temperature: | Normal Temperature (-40°C |
| Seal Surface Material: | Soft Sealed | Valve Body: | Casting |
| Valve Size: | 1-1/2"~40" (DN15~DN1000) | Body Material: | FC, FCD, WCB, CF8, CF8M |
| Disc Material: | FCD, WCB, CF8, CF8M, CF3M | Seat Material: | EPDM, NBR, VITON |
| Rating: | PN10, PN16, ANSI: 150#, 300# | Connection: | Wafer, Lug, Flange |
| Specification: | 2 Inch-24 Inch | ||
| Highlight: | Pneumatic butterfly valve with EPDM seal,Industrial pneumatic lug butterfly valve,EPDM seal butterfly valve for industrial |
||
Product Description
Pneumatic Actuator Butterfly Valve (Lug Type)
Product Overview
VS series pneumatic actuated butterfly valve featuring rack and pinion or scotch yoke valve system integration for reliable industrial performance.
Technical Specifications
| Drive System | Pneumatic Actuator |
|---|---|
| Valve Type | Center Line-Type Butterfly Valve |
| Valve Size Range | 1-1/2" to 40" (DN15 to DN1000) |
| Body Materials | FC, FCD, WCB, CF8, CF8M |
| Disc Materials | FCD, WCB, CF8, CF8M, CF3M |
| Seat Materials | EPDM, NBR, VITON |
| Pressure Rating | PN10, PN16, ANSI: 150#, 300# |
| Connection Types | Wafer, Lug, Flange |

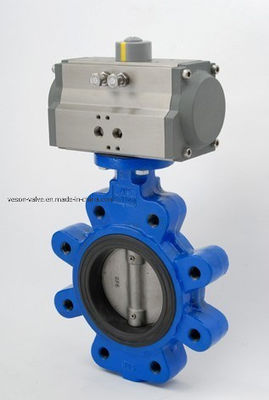

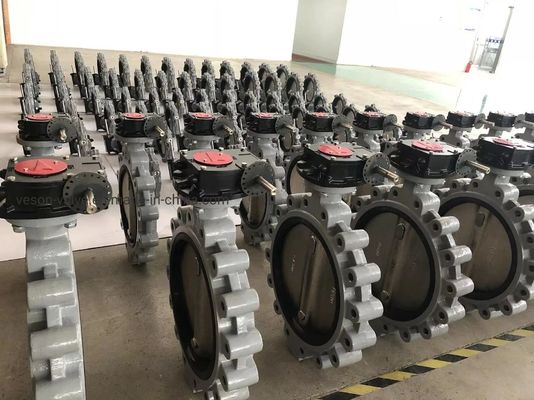

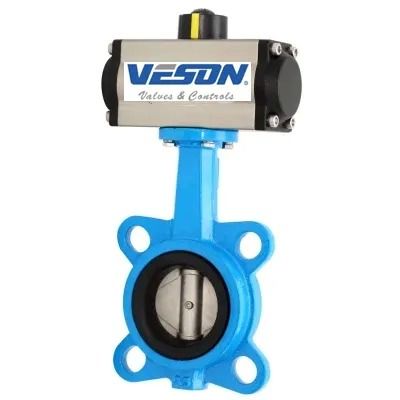

Product Image
