Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Model NO.: | VS-063DA | Connection Form: | Flange |
|---|---|---|---|
| Structure: | Centre Sealing | Seal Form: | Force Sealed |
| Valve Stem: | Normal | Work Pressure: | Mid-Pressure (2.5mpa< Pn <6.4mpa) |
| Working Temperature: | Medium Temperature (120°C| Seal Material: |
Soft Sealed |
|
| Valve Body: | Sheet Metal | Size Specification: | 2 Inch-24 Inch |
| Actuator Air Pressure: | 80-120 PSI | Actuator Cycle Life: | 1 Million Cycles |
| Actuator Design: | Rack Pinion | Weatherproof Rating: | IP66 & IP68 |
| Mounting Standard: | ISO5211 | ||
| Highlight: | Mid-Pressure Air Actuated Butterfly Valve,Medium Temperature Butterfly Valve,2 inch-24 inch Pneumatic Butterfly Valve |
||
Product Description

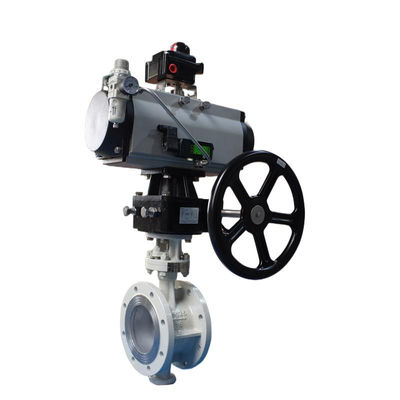

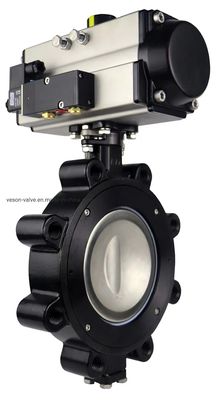

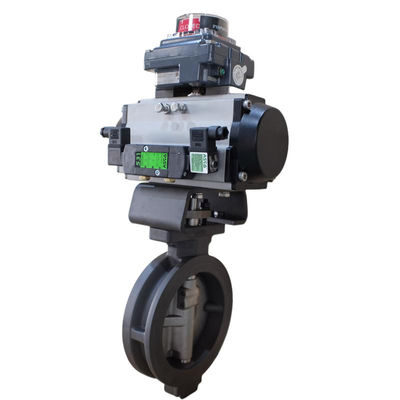

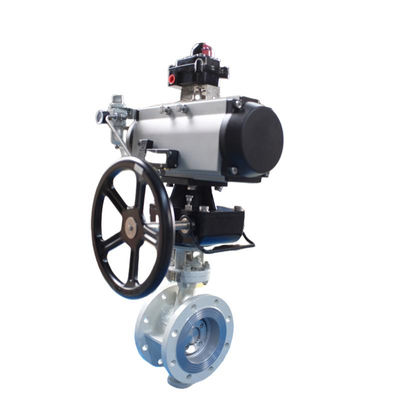

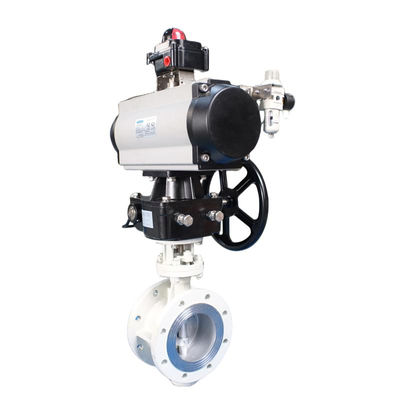

Air Actuated Butterfly Valve with Topworks Limit Switch Box Signal Box
Air actuated soft seated butterfly valve designed for on-off control of water and other compatible media. Features spring return actuators that use air pressure (80-120 PSI) to open and springs to close, ensuring fail-closed operation upon loss of air signal.
Butterfly Valve Standard Features
- Rugged epoxy coated ductile iron body with stainless steel disc for maximum corrosion resistance
- Extended lifespan with unique wave line seat and special disc shape design
- Reduced torque from wave seal and disc design allows for smaller, more cost-effective actuators
- Increased flow capacity through unique profile disc and two-piece shaft design
- Standard ISO5211 mounting for direct actuator connection
Pneumatic Actuator Standard Features
- Extended cycle life (1 million cycles)
- Rack pinion design for reliable operation
- Highly visible valve position indicator
- Type IP66 & IP68 weatherproof rating
- Anodized aluminum body with epoxy-polyester covers
- Compatible with dry or lubricated pilot air
- Namur & ISO mounting options
Product Images
