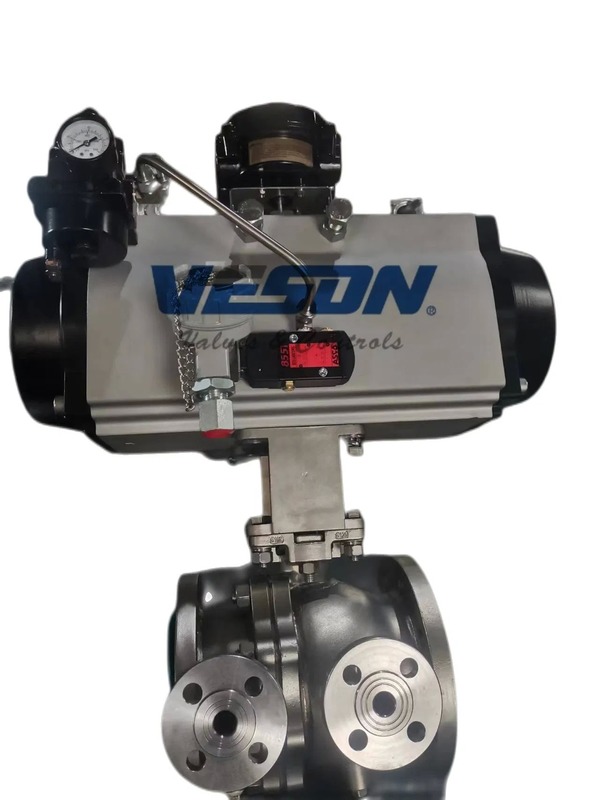

Pneumatic Jacketed Ball Valve with Pressure Rating 150#-600# Size 1/2"-24" DN15-DN600 for Steam Sulphur Applications
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Channel Type: | Straight Through Type | Structure: | Floating Ball Valve |
|---|---|---|---|
| Valve Type: | Floating Ball Valve | Class Rating: | 150#---600# PN16-PN110 |
| Size Range: | 1/2"-24" DN15-DN600 | Body Material: | Carbon Steel, Stainless Steel, Duplex Stainless Steel, Bronze, Inconel |
| End Connection: | Flange End (RF, RTJ) | Operation Type: | Manual, Gear, Pneumatic, Electric |
| Pressure Rating: | Class150 - Class 2500 Or PN 16 - PN 420 | Material Options: | WCB, LCB, CF3, CF8M, CF3M, A105, LF2, F304, F304L, F316, F316L, Hastelloy, Super Duplex, Inconel, C95500, Alloy 20 |
| Heat Preservation: | Yes | Cold Insulation: | Yes |
| Flow Diameter: | Full-diameter | Leakage Performance: | No Leakage |
| Construction Type: | Monolithic | ||
| Highlight: | Pressure Rating 150#-600# Pneumatic Ball Valve,Size 1/2"-24" Jacketed Ball Valve,DN15-DN600 Steam Sulphur Ball Valve |
||
Product Description
| PRODUCT NAME | Pneumatic Jacket ball valve |
|---|---|
| BRAND | Veson |
| ORIGIN | China |
| Packing | Plywood case |
| Class / Rating | 150#---600# PN16-PN110 |
| Size | 1/2"-24"DN15-DN600 |
| Materials | Body Material: Carbon steel, Stainless steel, Duplex stainless steel, Bronze, Inconel etc |
| Ends | Flange End (RF, RTJ) |
| Operation | Manual, Gear, Pneumatic, Electric, etc |
Jacket ball valve features excellent heat-preservation and cold-insulation properties. The full-diameter design matches pipe diameter to minimize heat loss from pipeline media. Primarily used for transporting viscous media that solidifies at normal temperatures in petroleum, chemical, metallurgical, pharmaceutical, and food industries.
The monolithic construction design provides superior sealing performance with more compact dimensions and lighter weight than traditional ball valves. The carbon steel welded jacket offers enhanced pressure resistance and durability compared to cast alternatives.
- Superior heat preservation and cold preservation capabilities
- Full-diameter design reduces media flow resistance
- Monolithic construction prevents leakage
- Compact and lightweight design
- Enhanced pressure resistance
Sizes: 1/2" - 24", DN 15 - DN 600
Pressure Rating: Class150 - Class 2500 or PN 16 - PN 420
Material of valve body: WCB, LCB, CF3, CF8M, CF3M, CF8M, A105, LF2, F304, F304L, F316, F316L, Hastelloy, Super Duplex, Inconel, C95500, Alloy 20 etc
