ASME B16.34 Pneumatic Ball Valve with 8Nm-4583N.m Torque and CF8/CF8M/CF3M Construction
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Model NO.: | VS-210SR08-FO | Connection Form: | Flange |
|---|---|---|---|
| Channel Type: | Straight Through | Structure: | Floating Ball Valve |
| Valve Size: | 1/4"~4" (DN6~DN100) | Body Material: | CF8/CF8M/CF3M |
| Ball Material: | CF8/CF8M/CF3M | Seat Material: | PTFE, RTFE, Graphite & Others |
| Pressure Rating: | 1000WOG, 2000WOG | Connection Type: | Female Thread, SW, Butt-weld |
| Torque Range: | 8Nm-4583N.m | Function: | Blow-Down Valve, Relief Valve, Bypass-Valve |
| Actuation Type: | Pneumatic Quarter-Turn | Valve Type: | 2-Way |
| End Connection: | 3-PC Screwed End | ||
| Highlight: | ASME B16.34 Pneumatic Ball Valve,8Nm-4583N.m Actuated Ball Valve,CF8/CF8M/CF3M Pneumatic Actuated Valve |
||
Product Description
2-Way Pneumatically Actuated Ball Valve Pneumatic Quarter-Turn Actuator Actuated Valve

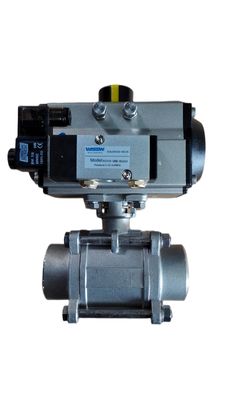

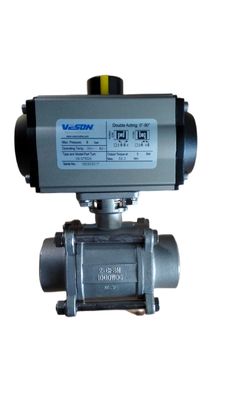

VS series pneumatic actuated ball valve (3-PC SCREWED END) offers reliable performance for industrial fluid control applications.
Product Specifications
| Feature | Specification |
|---|---|
| Valve Type | 3-PC Screwed End Ball Valve (two way) |
| Valve Size | 1/4"~4" (DN6~DN100) |
| Body/Ball Material | CF8/CF8M/CF3M |
| Seat Material | PTFE, RTFE, Graphite & Others |
| Rating | 1000WOG, 2000WOG |
| Connection | Female Thread, SW (Socket Welded), Butt-weld |
Key Features
- Pneumatic quarter-turn actuator for precise control
- Durable construction with CF8/CF8M/CF3M materials
- Multiple seat material options for different applications
- Available in various connection types for flexible installation
- Suitable for high-pressure applications with 1000WOG/2000WOG ratings
