Pneumatic Ball Valve with Class 150-1500 Lb Pressure Rating and PN 10 ~ 250 for DN15-200 Applications
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Model NO.: | VS-052~VS-400 | Channel Type: | Straight Through |
|---|---|---|---|
| Structure Type: | Floating Ball | Operated Way: | Lever, Gear, Pneumatic, Electric |
| Body Material: | Carbon Steel, Stainless Steel, Duplex Stainless | Size Range: | NPS 1/2"-8", DN15-200 |
| Pressure Class: | Class 150-1500 Lb, PN 10-250 | End Connection: | Flange, BW, SW, NPT |
| Ball Material: | Free Cutting Steel, Stainless Steel (1.4571/316Ti) | Sealing Material: | Plastics, Metal |
| Max Pressure: | PN500 | Temperature Range: | -20°C To +80°C (-4 To +176°F) |
| Surface Finish: | Black Oxide, Zinc-layer, Zinc Nickel | Production Capacity: | 50000PC/Y |
| DN Range: | DN04 To DN25 | ||
| Highlight: | Class 150-1500 Lb Pneumatic Ball Valve,PN 10 ~ 250 Pneumatic Ball Valve,DN15-200 Pneumatic Ball Valve |
||
Product Description

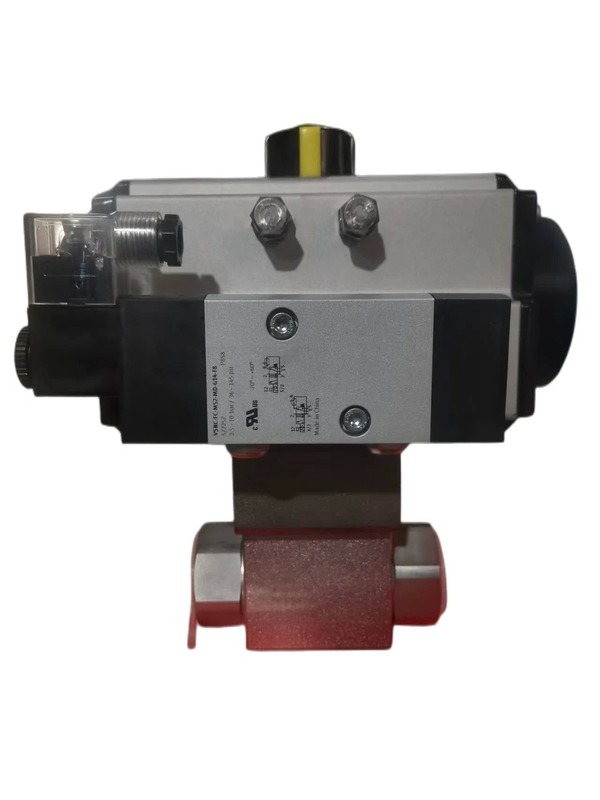

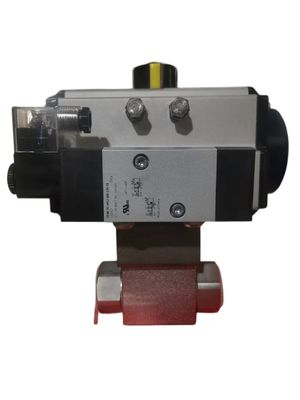

BKH - Block-Type Ball Valve with Pneumatic Actuator
High-performance 2-way ball valves designed for demanding industrial applications including construction machinery, agricultural equipment, mobile hydraulics, mining, and gas industries.
Key Features
- Available in sizes DN 4 to DN 25
- Multiple connection options including thread, compression fitting, and welding ends
- Robust construction with pressure ratings up to PN500
- Optional configurations with actuators, position switches, and locking devices
- Wide temperature range: -20°C to +80°C (-4 to +176°F)
Technical Specifications
| Component | Material |
|---|---|
| Body | S460N, S355 steel |
| Ball & Stem | Free cutting steel or stainless steel (1.4571/316Ti) |
| Sealing | Plastics or metal |
| Surface Treatment | Black oxide finishing, zinc-layer, or zinc nickel |
Connection Options
Compression fitting (light and heavy series), BSP thread, NPT thread, welding end and welding taper, UNC/UNF female thread, bulkhead connection, plug-in socket, plug nipple, and thread connection.
Applications
Ideal for hydraulic systems in construction, agriculture, mining, and gas industries. Materials and seals can be customized for specific application requirements.
