Actuated Sanitary Ball Valve with Tri-Clamp Connection, Full Port Design, and 1000 PSI WOG Rating
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Connection Form: | Flange | Channel Type: | Straight Through |
|---|---|---|---|
| Valve Structure: | Floating Ball | Material: | SS304/SS316 |
| Port Design: | Full Port | Pressure Rating: | 1000 PSI WOG |
| Operating Pressure: | 60-90 PSI | Seat Material: | PTFE |
| Gasket Material: | PTFE FDA 177.2600 | Ball Material: | SS316 |
| Actuation Time: | <1 Second At 80 PSI | Cycle Life: | 100,000+ Cycles |
| Size Range: | 1 Inch-12 Inch | Actuation Type: | Pneumatic |
| Position Indicator: | Visual | ||
| Highlight: | Tri-Clamp Connection Ball Valve,Full Port Design Ball Valve,1000 PSI WOG Ball Valve |
||
Product Description

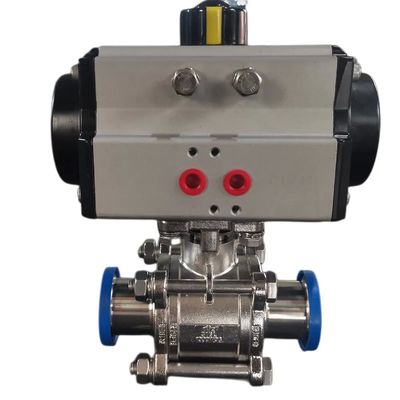

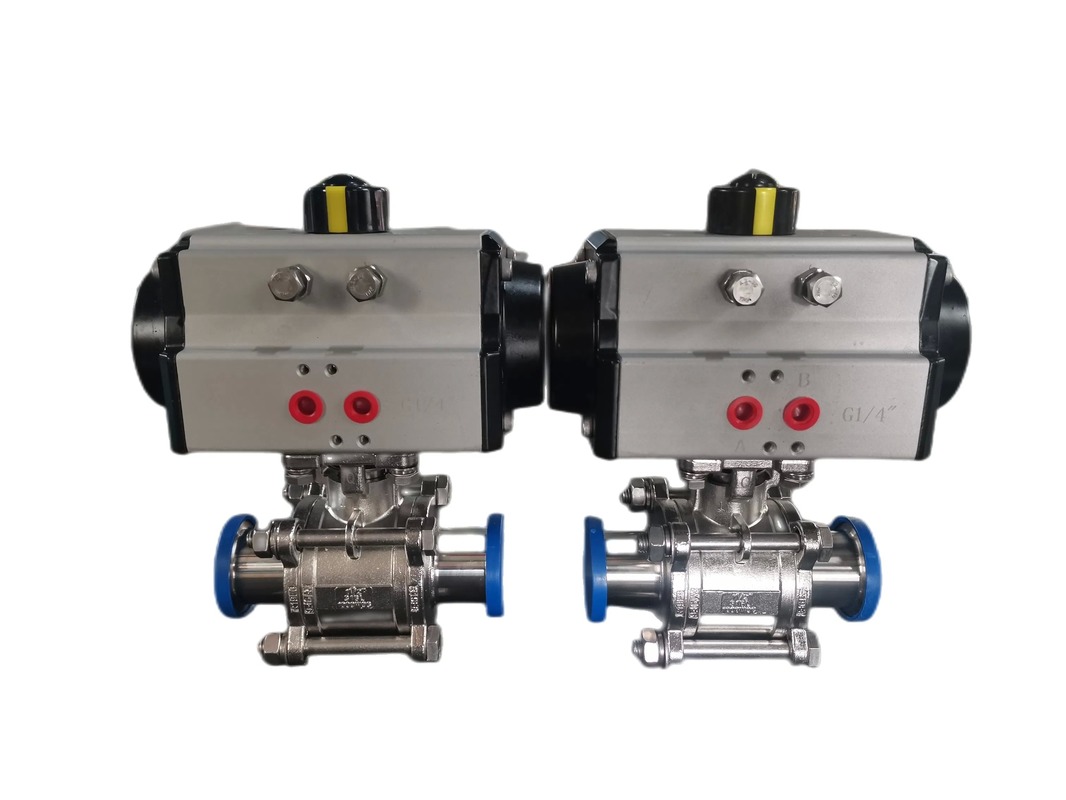

Actuated Sanitary Tri-Clamp Ball Valve

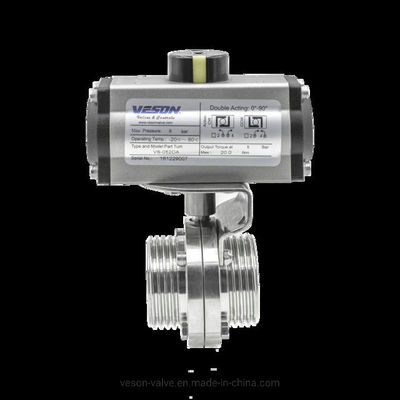

Pneumatic Butterfly Valves
Veson heavy duty sanitary pneumatic butterfly valves provide reliable on-off service and flow control, operated by air pressure actuation.
- Stainless steel SS304 Valve & Body
- Fireproof construction
- Long life span
- Maintenance-free pneumatic mechanism
- Fast operation: less than 1 second at 80 PSI
- Durability tested at over 100,000 cycles
- Visual position indicator
- Available in air/air configuration
- Suitable for normal and closed applications
Pneumatic Ball Valves
Veson heavy duty pneumatic ball valves offer excellent on-off service and flow control, operated by air pressure actuation.
- Precision 2-way pneumatic encapsulated ball valve
- Encapsulated PTFE seats with Tri Clamp connection
- In-line design for maximum flow capacity
- Flexible installation in any position
- SS316 stainless steel ball
- PTFE gasket compliant with FDA 177.2600
- Full port design
- Rated to 1,000 PSI WOG
- Completely rebuildable
- 60-90 PSI operating range
