Pneumatic Actuated Ball Valve with 2-PC Screwed End and PN1.0-32.0MPa Pressure Rating for Industrial Use with 12 Months Warranty
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Model NO.: | VS-052~VS-400 | Connection Form: | Thread |
|---|---|---|---|
| Driving Mode: | Pneumatic | Nominal Pressure: | PN1.0-32.0MPa |
| Channel: | Straight Through Type | Structure: | Floating Ball Valve |
| Type: | Floating Ball Valve | Temperature: | Normal Temperature |
| Valve Size: | 1/4"~3" (DN6~DN80) | Body Material: | CF8/CF8M/CF3M |
| Ball Material: | CF8/CF8M/CF3M | Seat Material: | PTFE, RTFE, Graphite & Others |
| Rating: | 1000WOG | Connection: | Female Thread |
| Production Capacity: | 50000PC / Y | ||
| Highlight: | 2-PC Screwed End Pneumatic Ball Valve,PN1.0-32.0MPa Pneumatic Actuated Ball Valve,12 Months Warranty Air Operated Ball Valve |
||
Product Description
Pneumatic Actuated Ball Valve (2-PC SCREWED END)
VS series pneumatic actuated ball valve (2-PC SCREWED END) is designed for reliable flow control in industrial applications.
Key Specifications
- Valve Type: 2-PC Screwed End Ball Valve (two way)
- Valve Size Range: 1/4" to 3" (DN6 to DN80)
- Body/Ball Material Options: CF8/CF8M/CF3M
- Seat Material Options: PTFE, RTFE, Graphite & Others
- Pressure Rating: 1000WOG
- Connection Type: Female Thread

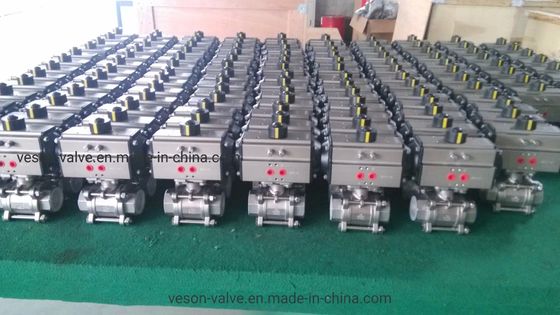

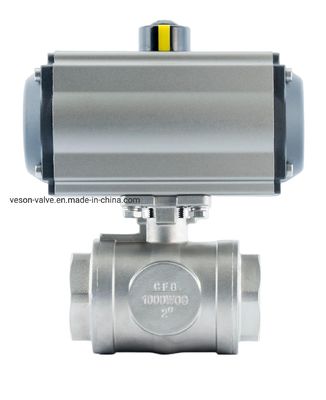

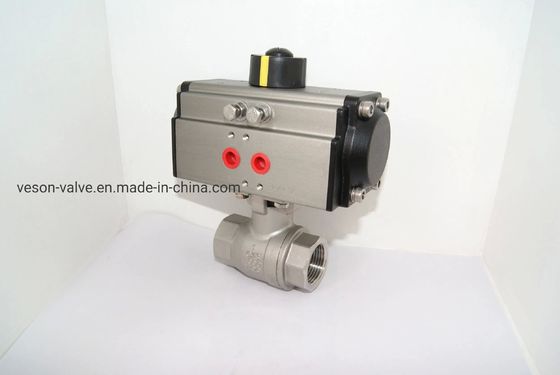

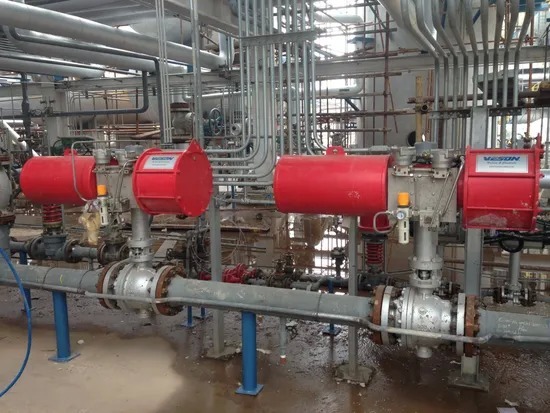

Product Images
