3-WAY Pneumatic Actuated Ball Valve with Pn40 Pressure Rating and 1000WOG for Industrial Applications
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Model NO.: | VS-240SR08-FO | Connection Form: | Flange |
|---|---|---|---|
| Driving Mode: | Pneumatic | Nominal Pressure: | PN1.0-32.0MPa |
| Channel: | Straight Through Type | Structure: | Floating Ball Valve |
| Type: | Floating Ball Valve | Temperature: | Normal Temperature |
| Body Material: | CS Ss | Pressure: | Pn40 |
| Specification: | 1 Inch-12 Inch | Ball Type: | T Or L Shape |
| Valve Size: | 1/4"~4" (DN6~DN100) | Seat Material: | PTFE, RTFE, Graphite & Others |
| Rating: | DIN: PN10~PN40, ANSI: 150#~600#, 1000WOG | ||
| Highlight: | 3-WAY Pneumatic Ball Valve,Pn40 Pneumatic Actuated Ball Valve,1000WOG 3-WAY Ball Valve |
||
Product Description

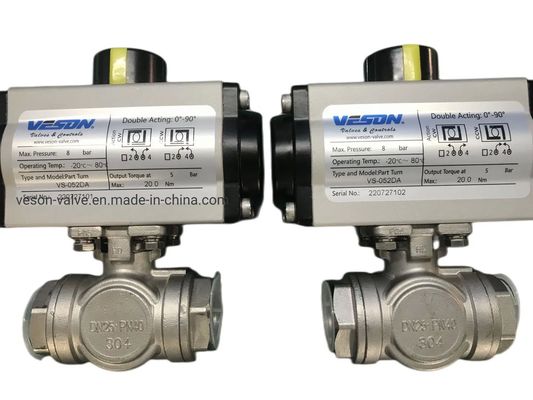

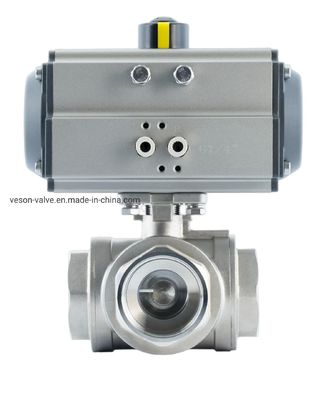

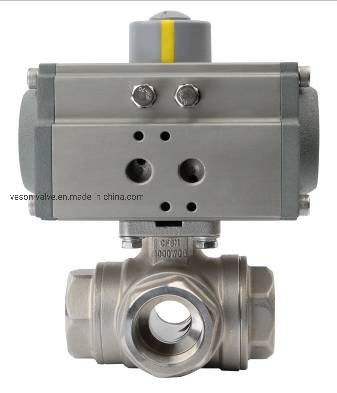

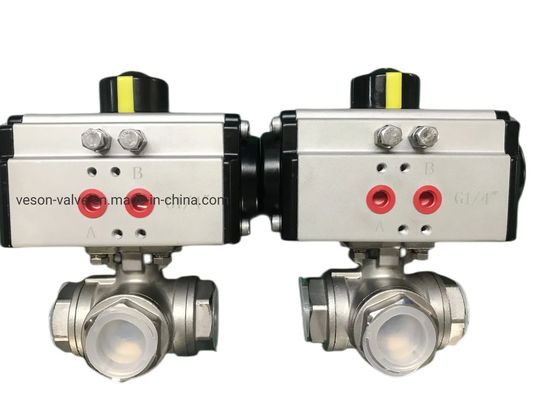

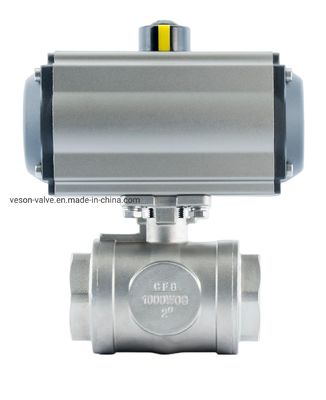

Pneumatic Actuated Ball Valve (3-WAY) Pn40 1000W.O.G
Product Description
VS series pneumatic actuated ball valve (3-WAY) featuring:
- Valve: Flanged End Ball Valve (3-way)
- Ball Type: T or L Shape
- Valve Size: 1/4"~4" (DN6~DN100)
- Body/Ball Material: WCB, CF8, CF8M, CF3M
- Seat Material: PTFE, RTFE, Graphite & Others
- Rating: DIN: PN10~PN40 / ANSI: 150#~600#, 1000WOG
- Connection: Female Thread, Flanged End
Product Images
Technical Specifications
| Feature | Specification |
|---|---|
| Valve Type | 3-WAY Flanged End Ball Valve |
| Ball Configuration | T or L Shape |
| Size Range | 1/4" to 4" (DN6 to DN100) |
| Body Materials | WCB, CF8, CF8M, CF3M |
| Seat Materials | PTFE, RTFE, Graphite & Others |
| Pressure Ratings | DIN: PN10~PN40 / ANSI: 150#~600#, 1000WOG |
| Connection Types | Female Thread, Flanged End |
