Pneumatic Actuated Ball Valve with 3-PC Design ANSI CLASS 150-900 and ASME B16.34 Standard
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Model NO.: | VS-240SR08-FO | Connection Form: | Flange |
|---|---|---|---|
| Driving Mode: | Pneumatic | Nominal Pressure: | ANSI CLASS 150-900 |
| Channel: | Straight Through Type | Structure: | Floating Ball Valve |
| Type: | Floating Ball Valve | Temperature: | Low Temperature |
| ANSI Class: | 150#, 300#, 600#, 900# | Valve Size: | 1/4"~4" (DN6~DN100) |
| Body Material: | CF8/CF8M/CF3M | Seat Material: | PTFE, RTFE, Graphite & Others |
| Rating: | 1000WOG, 2000WOG | Connection: | Female Thread, SW, Butt-weld |
| Specification: | 1 Inch-12 Inch | ||
| Highlight: | 3-PC Design Pneumatic Ball Valve,ANSI CLASS 150-900 Actuated Ball Valve,ASME B16.34 3-PC Ball Valve |
||
Product Description
Pneumatic Actuator Ball Valve 3-PC Screwed End Ball Valve 3PC Design Screwed End Socket End
Product Description

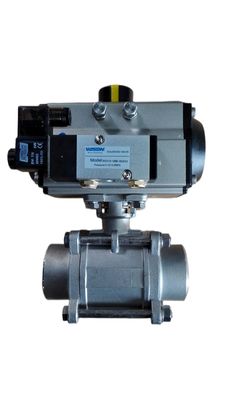

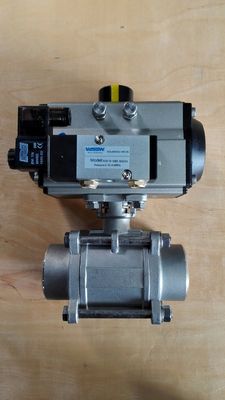

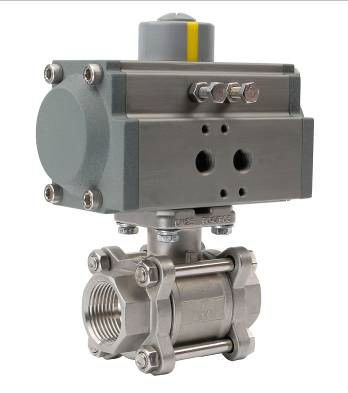

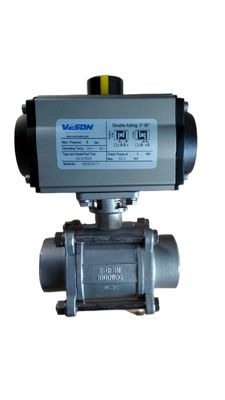

VS series pneumatic actuated ball valve (3-PC SCREWED END) featuring durable construction and versatile connection options for industrial applications.
Key Features
- Valve type: 3-PC Screwed End Ball Valve (two way)
- Available sizes: 1/4" to 4" (DN6 to DN100)
- Body/Ball material options: CF8/CF8M/CF3M
- Seat material options: PTFE, RTFE, Graphite & Others
- Pressure rating: 1000WOG, 2000WOG
- Connection types: Female Thread, SW (Socket Welded), Butt-weld
Specifications
| Feature | Specification |
|---|---|
| Valve Design | 3-Piece Screwed End |
| Size Range | 1/4" - 4" (DN6 - DN100) |
| Body Material | CF8/CF8M/CF3M |
| Seat Material | PTFE, RTFE, Graphite & Others |
| Pressure Rating | 1000WOG, 2000WOG |
| Connection Types | Female Thread, Socket Welded, Butt-weld |
