2-PC Flanged End Pneumatic Actuated Ball Valve with ISO5211 Standard for DN15-DN300 Industrial Applications
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Connection Form: | Flange | Driving Mode: | Pneumatic |
|---|---|---|---|
| Nominal Pressure: | PN1.0-32.0MPa | Channel Type: | Straight Through |
| Valve Structure: | Floating Ball | Valve Size: | 1/2"~12" (DN15~DN300) |
| Body Material: | WCB, CF8, CF8M, CF3M | Seat Material: | PTFE, RTFE, Graphite & Others |
| Pressure Rating: | DIN: PN10~PN40, ANSI: 150#~600# | Air Supply: | 40-100psig |
| Air Connection: | 1/4" | Temperature Range: | Normal Temperature |
| Valve Type: | 2-PC Flanged End Ball Valve | Function: | Blow-Down, Relief, Atmospheric |
| Production Capacity: | 50000PC/Y | ||
| Highlight: | 2-PC Flanged Ball Valve,ISO5211 Standard Pneumatic Actuated Ball Valve,DN15-DN300 Air Operated Ball Valve |
||
Product Description

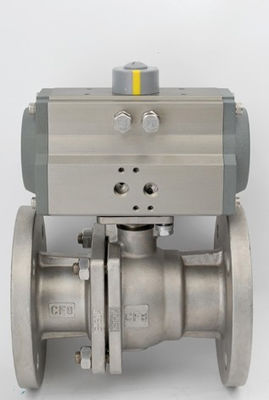

Pneumatic Actuated Ball Valve (2-PC FLANGED END) Air Pressure Control System
VS series pneumatic actuated ball valve (2-PC FLANGED END) designed for precise air pressure control in industrial applications.
Key Specifications
| Valve Type | 2-PC Flanged End Ball Valve (two way) |
|---|---|
| Valve Size Range | 1/2"~12" (DN15~DN300) |
| Body/Ball Materials | WCB, CF8, CF8M, CF3M |
| Seat Materials | PTFE, RTFE, Graphite & Others |
| Pressure Ratings | DIN: PN10~PN40 ANSI: 150#~600# |
| Connection Type | Flanged End |
Product Features
- Pneumatic actuation for reliable air pressure control
- Durable construction with multiple material options
- Flanged end connection for secure installation
- Available in wide range of sizes and pressure ratings
- Versatile seat material options for different applications
