Pneumatic Ball Valve with 2-Piece Design 1000WOG and ISO5211 Standard for Reliable On-Off Control
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Model NO.: | VS-075DA | Connection Form: | Thread |
|---|---|---|---|
| Driving Mode: | Pneumatic | Nominal Pressure: | ANSI CLASS 150-900 |
| Channel: | Straight Through Type | Structure: | Floating Ball Valve |
| Temperature: | Normal Temperature | Control Fluid: | Air, Boiler Feedwater, Cargo Oil, Condensate, Corr |
| Material Seat: | PTFE R-PTFE Peek | Material Body: | Stainless Steel, 316 304 |
| Specification: | 1 Inch-12 Inch | Port Type: | Full Port |
| End Connection: | NPT, Socket Weld Or Butt Weld | Actuator Design: | Rack And Pinion |
| Mounting Pad: | ISO | ||
| Highlight: | 2-Piece Design Pneumatic Ball Valve,1000WOG Actuated Ball Valve,ISO5211 Standard Control Valve |
||
Product Description

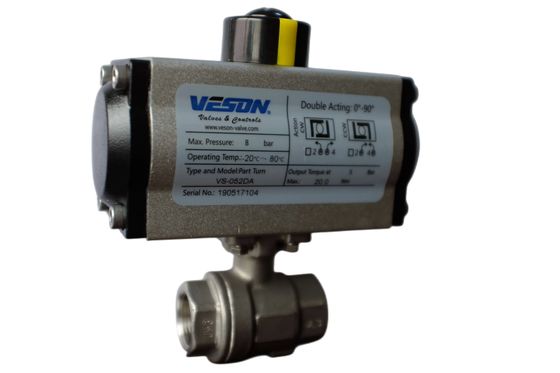

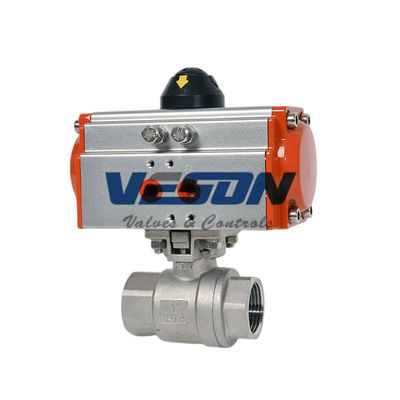

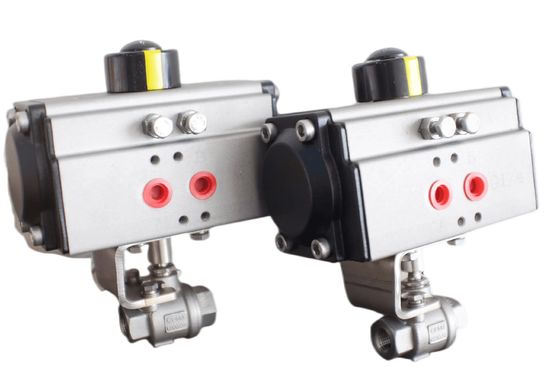

Pneumatic Actuated Screwed Ball Valve Air Actuated 2-Piece Stainless Ball Valves - Rack & Pinion On-Off Control Valve Ball Valve 1" 1000WOG

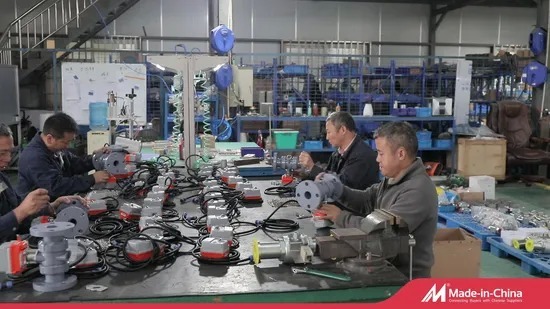

Veson Valve Ltd. is a professional manufacturer and wholesale supplier of VESON series pneumatic actuators, electric actuators, and related accessories. Our product line includes limit switch boxes, solenoid valves, positioners, air filter regulators, manual overrides, pneumatic actuated ball valves, butterfly valves, and control valves. Certified by ISO9001:2000 quality management system, we maintain strong technical support with a team that includes 2 senior engineers and 6 engineers, representing 34% of our workforce.
Actuated Stainless Steel Ball Valve (3 Piece Design) Threaded Ends - Sizes Up to 4"
Valve Features:
- Full Port 3-Piece Stainless Steel Ball Valves
- 1/4" through 4" NPT
- Direct Mount for Low-Profile, Cost-Efficient Operations
- Electric and Pneumatic Actuators
- NPT, socket weld or butt weld end
- Full port stainless steel Ball Valves 1/4" through 4"
- RTFE seats/TFE seals
- Swing out design for easy maintenance
- ISO mounting pad
Actuator Features:
Pneumatic Actuators:
- Rack and pinion Actuator design
- Spring return or double acting
- Open and closed adjustment stops
- True NAMUR accessory mounting
- Visual indicator
Want to Know more details about this product
