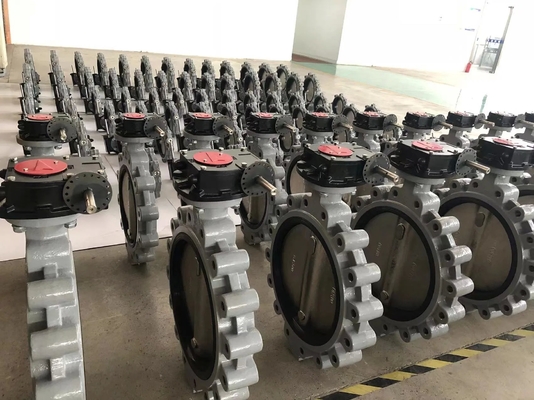

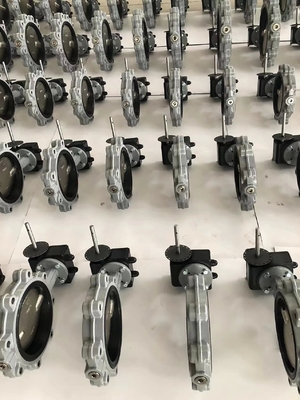

Lug Type 150lb Butterfly Valve with Aluminum Bronze Disc
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Connection Form: | Lug Support | Body Material: | Ductile Iron, ASTM A536 |
|---|---|---|---|
| Disc Material: | Aluminum Bronze, ASTM B148, ALY.954 | Liner Material: | Nitrile Rubber |
| Bushing Material: | PTFE | Stem Material: | Stainless Steel |
| Actuator Material: | ASTM303 Stainless Steel | Actuator Finish: | Electro-polish |
| Actuator Design: | Dual Piston Rack And Pinion | Mounting Standard: | ISO 5211, DIN 3337, NAMUR |
| Travel Adjustment: | +5° At Open/close | Fastener Material: | Stainless Steel |
| Pressure Rating: | 150lb | Valve Type: | Butterfly |
| Actuator Type: | Pneumatic | ||
| Highlight: | 150lb lug type butterfly valve,aluminum bronze disc butterfly valve,pneumatic lug butterfly valve |
||
Product Description
Lug Type 150lb. Butterfly Valve with Aluminum Bronze Disc BFV
Product Specifications
| Attribute | Value |
|---|---|
| Connection Form | Lug Support |
| Transport Package | Woodenbox |
| Specification | CE, SGS |
| Trademark | VESON |
| Origin | Shanghai China |
| HS Code | 84123900 |
| Production Capacity | 50000PC / Y |
Product Description
The VS Series of stainless steel pneumatic electric actuators are engineered for wash-down applications, featuring an electro-polish finish that provides superior resistance to corrosive chemicals and industrial environments.
- ASTM303 stainless steel with electro-polish finish
- Dual piston rack and pinion design for compact construction, symmetric mounting position, high-cycle life, and fast operation
- Stainless steel fasteners for long-term corrosion resistance
- ISO 5211 direct mounting, DIN 3337 compliant
- NAMUR standard for mounting solenoids, limit switches and accessories
- Multiple bearings and guides on rack and pistons for low friction, high cycle life, and prevention of shaft blowout
- Two independent external travel stop adjustment bolts with ±5° adjustment capability
Construction Details
- Nitrile Rubber liner
- Ductile iron body (ASTM A536)
- Aluminum bronze disc (ASTM B148, ALY.954)
- PTFE bushing
- Stainless steel top and bottom stems
