Pneumatic Butterfly Valve Flange Type Metal Seat High Pressure
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Connection Form: | Flange | Structure: | Double-Eccentric Sealing |
|---|---|---|---|
| Seal Form: | Force Sealed | Valve Stem: | Extended |
| Work Pressure: | 10.0mpa< Pn <80.0mpa | Working Temperature: | T>450°C |
| Seal Surface Material: | Metal Hard Sealed | Stem Material: | 17-4 PH Stainless Steel |
| Valve Applications: | High Temperature, Abrasive, Hot Oil, Hot Air & Gas | Specification: | 1 Inch-12 Inch |
| Production Capacity: | 50000PC / Y | Shutoff Type: | Bi-directional Bubble-tight |
| Disc Configuration: | Double Off-set With Conical Angled Disc | Dead-end Service: | 285 Psi |
| Saturated Steam Service: | 150 Psi | ||
| Highlight: | Pneumatic butterfly valve flange type,Metal seat high pressure valve,Flanged pneumatic butterfly valve |
||
Product Description
Pneumatic Actuated Butterfly Valve (Metal Seat)
Product Specifications
| Attribute | Value |
|---|---|
| Connection Form | Flange |
| Structure | Double-Eccentric Sealing |
| Seal Form | Force Sealed |
| Valve Stem | Extended |
| Work Pressure | High Pressure (10.0mpa < Pn <80.0mpa) |
| Working Temperature | High Temperature (T>450°C) |
| Material of Seal Surface | Metal Hard Sealed |
| Standard | ISO5211 |
| Application | Industrial Usage, Water Industrial Usage |
| Stem Material | 17-4 pH Stainless Steel |
| Valve Applications | High Temperature, Abrasive, Hot Oil, Hot Air & Gas |
| Transport Package | Plywood Case Package |
| Specification | 1 inch-12 inch |
| Trademark | VESON or Customer's |
| Origin | China |
| HS Code | 84123900 |
| Production Capacity | 50000PC / Y |
Product Features
- High performance butterfly valve with bi-directional bubble-tight shutoff
- Double off-set configuration with conical angled disc
- Dead-end service rated to full 285 psi
- Low maintenance design for extended service life
- Suitable for saturated steam service to 150 psi
- Manufactured in ISO 9001 certified facility

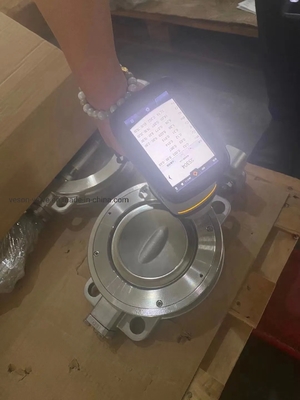

Product Images
