Kitz Pneumatic Drive Flanged Ball Valve 2 Way Pneumatic On/Off Ball Valves
Product Details:
| Place of Origin: | China |
| Brand Name: | veson |
| Certification: | ISO CE |
| Model Number: | VSF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | EXW Fob shanghai |
| Packaging Details: | Plywood case |
| Delivery Time: | 6-8 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 |
|
Detail Information |
|||
| Material: | SS CS | Shut Down Valve: | ESDV |
|---|---|---|---|
| Color: | Red | Operation: | Pneumatically Or Hydraulically |
| Key Words: | Emergency Shutdown Valve | Media: | Oil |
| Type: | FPBV | ||
| High Light: | Pneumatic Drive Flanged Ball Valve,Pneumatic On Off Ball Valves,2 Way Flanged Ball Valve |
||
Product Description

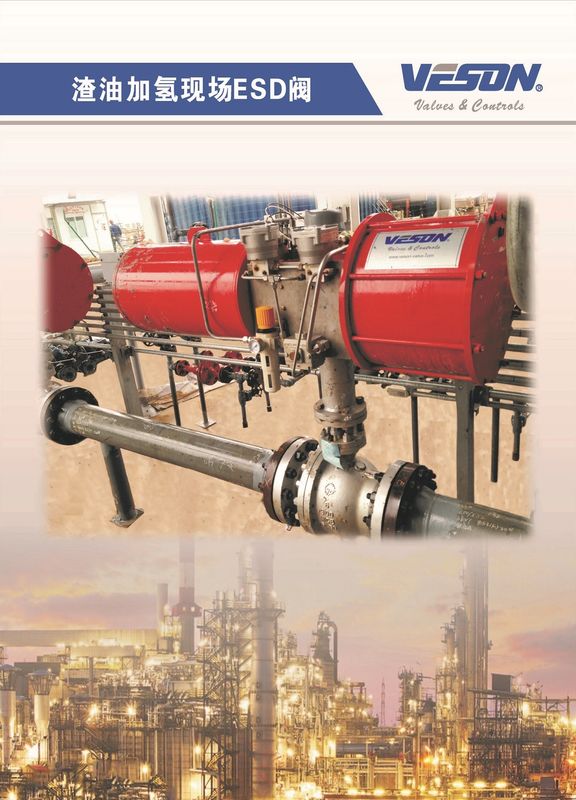

Pneumatic Actuated Emergency Shutdown Valve Ball Valve KITZ Oil Media
KITZ with veson pneumatic actuator type (double acting)
[Features]
· The aluminum die-cast alloy actuator enclosure and double piston drive configuration combine for a compact, lightweight actuator.
· Composed of the minimum number of components, The veson pneumatic actuator is least susceptible to failures and provides excellent durability.
· A dedicated solenoid valve can be attached directly to the actuator, eliminating difficult piping arrangement.
· The double piston type rack and pinion structure provide a quarter-turn actuator with excellent efficiency.
· The veson pneumatic actuator type can be directly connected to the KITZ valve using only two bolts
Veson air actuated ANSI 150# stainless steel flanged ball valves are designed for general chemical and industrial applications. Full port 2-piece designed investment cast valve direct mounts to the actuator with standard ISO5211 mounting pad. Double acting actuators use an air pressure signal (80-120 PSI) to open and close the valve. High temperature valve mounting kit available for extended temperature range or wall mounting applications. Ball valve can be mounted in any orientation. All valves are tested per API 598.
Ball Valve Standard Features
