Double Air Direct Actuated PVC Ball Valve Pneumatic UPVC True Union

Basic Information
Place of Origin: China
Brand Name: Veson/OEM
Certification: ISO/CE/SIL3
Model Number: VS-083DA
Minimum Order Quantity: 1 Ea
Price: FOB Shanghai
Packaging Details: Carton/Plywood case
Delivery Time: One week
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/Month
Detail Information
Material: UPVC Type: PVC Ball Valve
Function: Quarter Turn Actuator Valve: Pneumatic Piston Actuator
Structure: Ball Power: Pneumatic
Pressure: Medium Pressure Media: Water,oil,Gas,Air
Port Size: 1/4"-4" Application: On/off
Connection: Clamp
High Light:

Pneumatic Direct Acting PVC Ball Valve

,

Air Actuated PVC Ball Valve

,

Double True Union Ball Valve


Product Description

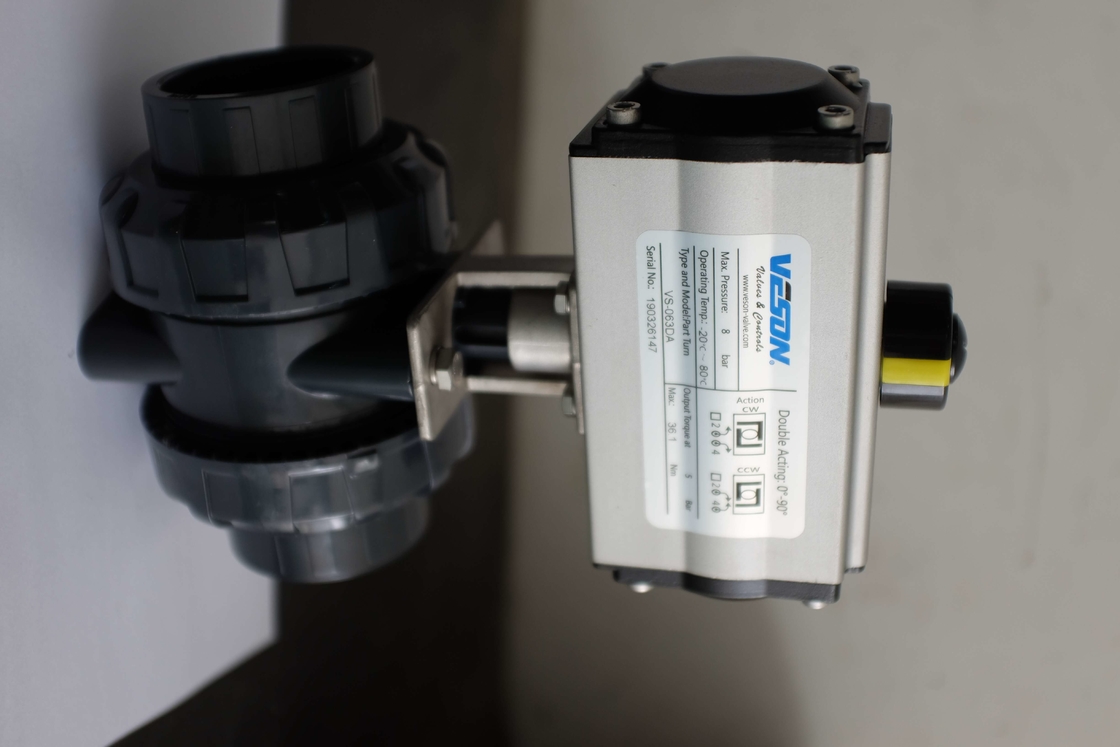

Double Air Direct Actuated PVC Ball Valve Pneumatic UPVC True Union 0

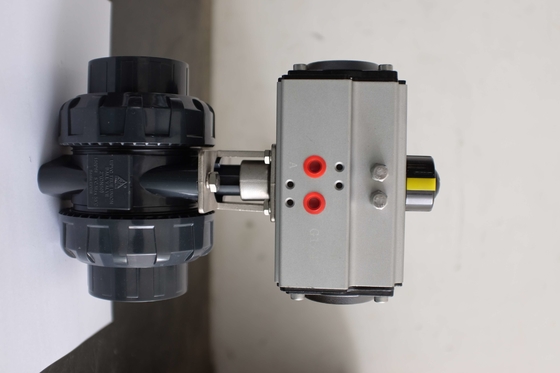

Double Air Direct Actuated PVC Ball Valve Pneumatic UPVC True Union 1



Pneumatic Operated PVC/UPVC Ball Valves



valve ;



1) Body Material :PVC-U PP-H FRPP
2) Handle Material:ABS
3) Size: 2 1/2 " to 4 "
4) Standard: DIN JIS ANSI UNIVERSAL
5) O-ring Material: EPDM or FPM
6) Connect Way: Socket Weld /Threaded flange /Butt weld







► Design & Construction Of AT Series Double Acting Pneumatic Actuator





1. Full conformance to the latest specification: ISO5211DIN3337VD/VDE3845and NAMUR.


2. The extruding high-intensity aluminum body possesses a honed internal surface coated with hone anode oxygenation for long life, low coefficient of friction and swift performance.


3. Excellent, compact and modernized construction along with multi-specifications make the selection both economic and beneficial.


4. All acting surfaces adopt high-quality bearings, resulting in low friction, high cycle life, and no noise. The two independent external travel stop adjustment bolts can easily and precisely adjust ±5°at both open and close directions.


5. The same outline actuator has the functional modes of double acting and spring return, and the spring return has the normal-open and normal-close styles.


6. Multi-function position indicator with NUMER is convenient for mounting accessories.


7. Pre-compressed load spring is convenient for safe mounting and teardown procedures.


8. Die-casting aluminum pistons and end caps have high intensity and lightweight.


9. Different O-rings materials are available for high and low temperature.


10. According to different demands we can offer Multi-travel rotations (e.g. 120°135°180°) and three position actuators.


11. Solenoid valves are easily mounted without any connecting plank.





FEATURES:

  • Direct Acting, On-Off Actuator
  • True Union Ball Valve, directional flow
  • Connections: ANSI (Socket)
  • Full Port for unrestricted flow
  • PTFE Seat for lower torque and extended life
  • Valve Pressure Rating: 150 PSI
  • Valve Temperature Range: 32° to 130°F
  • Air Connections: 1/4 Inch


Includes:

  • Solenoid Control—110-120 VAC

Available Option:

  • POO/POC Limit Switch

Materials:
Valve Body: UPVC
Stem: PPO
Seat: PTFE
O-Rings: Viton

Typical Applications:
Remediation or process water with dissolved solvents or petroleum compounds
Landfill Leachate Applications
Process Liquid Applications where a higher degree of valve durability is needed.
