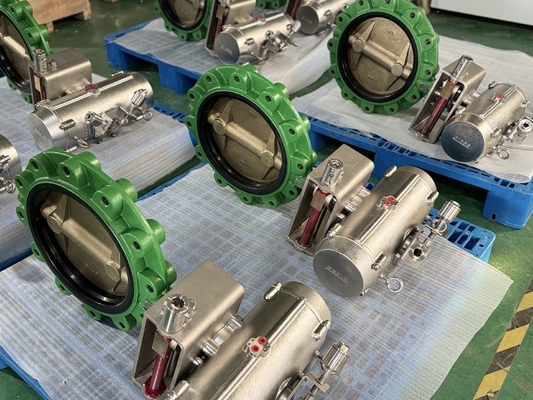

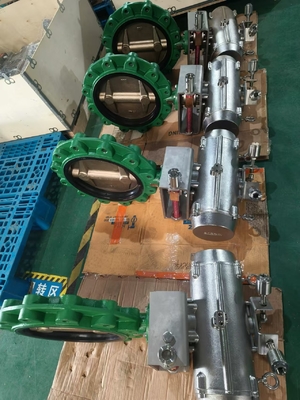

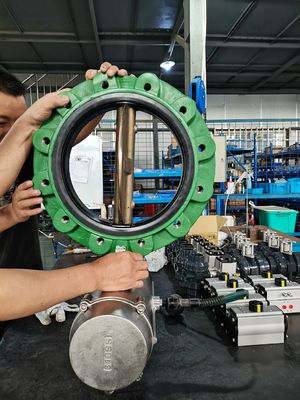

Marine Air Operated Butterfly Valve 316SS For Seawater Drilling Rig
Product Details:
| Place of Origin: | China |
| Brand Name: | VESON |
| Certification: | ISO CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Fob Shanghai ,EXW |
| Packaging Details: | plywood case with reforinced packing |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 |
|
Detail Information |
|||
| Butterfly Valve: | Wafer Type | Type: | Double Acting Or Spring Return |
|---|---|---|---|
| Name: | Air Operated Butterfly Valve | Pressure Range: | 25mm - 200mm: 16 Bar 250mm - 300mm: 10 Bar |
| Temperature Range: | -50oC To 120oC | Application: | Marine Industry |
| Highlight: | Seawater Air Operated Butterfly Valve,Drilling Rig Pneumatic Butterfly Valve,Butterfly Pneumatic Water Valve |
||
Product Description
SS316 Pneumatic Butterfly Valve Air Operated For Marine Industry
Pneumatic actuator
| Material | Stainless Steel, SUS304, SUS316, SUS316L |
| Rotary Angle | 0~90 degree |
| Structure | rack and pinion rotary actuator |
| Working Pressure | 2~8bar |
| Surface Treatment | hard anodizing |
| Working Temperature | Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F); High Temperature: -20ºC(-4°F) ~ 150ºC (+302°F); Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F). |
| Connection | NAMUR, ISO5211, and DIN3337 |
| Application | ball valve, butterfly valve, and rotary machine |
| Cup Color | STEEL |
Butterfly valve Sizes:
DN 40 – DN 1200 (1½” ~ 48″)
DN 1400 – DN 2000 (56″ ~ 80″) (other sizes on request)
Flange connection:
EN1092 (PN 6-10-16, PN25 up to DN 400)
ASME B 16.5 (class 150 – 300)
JIS B 2239 & 2220 (5K, 10K, 16K, 30K)
Temperature range -23°C to +200°C
Short face to face acc. EN 558-1 row 20
Top flange acc. EN ISO 5211
