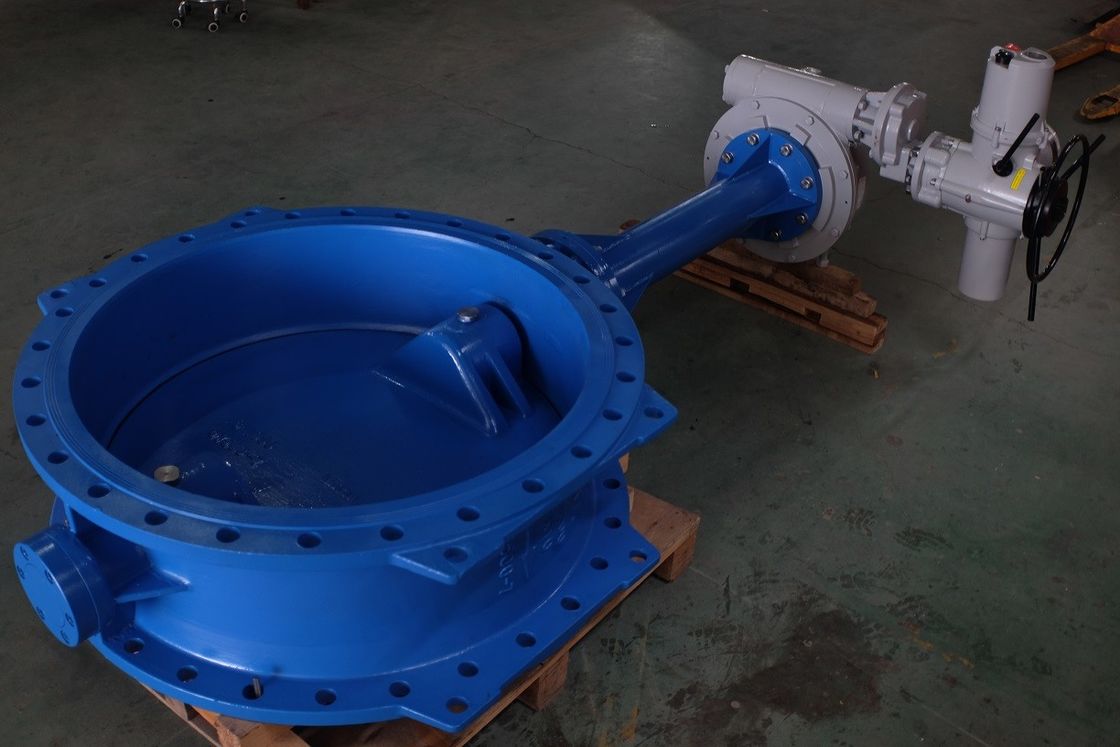

Double Flange Wafer Type Pneumatic Butterfly Valve Actuated

small.img.alt
small.img.alt
small.img.alt small.img.alt
Basic Information
Place of Origin: China
Brand Name: VESON
Certification: ISO CE
Minimum Order Quantity: 1
Price: Fob Shanghai ,EXW
Packaging Details: plywood case with reforinced packing
Delivery Time: 5-8 days
Payment Terms: L/C, T/T
Supply Ability: 10000
Get Best Price Contact Now
Detail Information
Butterfly Valve: Flange End Type: Double Acting Or Spring Return
Name: Air Operated Butterfly Valve Pressure Range: 25mm - 200mm: 16 Bar 250mm - 300mm: 10 Bar
Temperature Range: -10oC To 120oC Application: General
High Light:

Wafer Type Pneumatic Butterfly Valve

,

Double Flange Pneumatic Butterfly Valve

,

Actuated Pneumatic Butterfly Valve

Product Description



 Double Flange Wafer Type Pneumatic Butterfly Valve Actuated

SPECIFICATIONS


Electric Actuator:  ON-OFF Type, 220VAC, With handwheel
Design
Short Wafer type Double Flanged Centric Disc Butterfly Valves with Single Piece Rubber Lined Body

Body
Gray Iron / Cast Steel / Ductile Iron / CF8 / CF8M / CF3M / CD4MCuN

Size Range
3" to 48"

Shaft
AISI 410 / AISI 304 / AISI 316 / AISI 316L

Disc.
Gray Iron / Cast Steel / Ductile Iron / CF8 / CF8M / CF3M / CD4MCuN (S.G. Iron with / / Powder / Nylon Coated / & Rubber Line)

Seat
Nitrile / EPDM / Viton / Hypelon / Silicon / Neoprene

Seat Leakage
Tight Shut Off

Temprature
-20°C to 80°C (High Temperature available on Request)

Pressure rating
PN 10 / PN 16 ( PN 20 ON REQUEST)

End Connection
Double Flange Wafer Type Suit 150#, Table 'D', 'E' & IS 6392 Table 11 (PN 10 / PN 16)





Tag:

air actuated butterfly valve,

on off butterfly valve,

wafer type butterfly valve
