• Aluminum Alloy Pneumatic Rack And Pinion Actuator For Ball Valve
Aluminum Alloy Pneumatic Rack And Pinion Actuator For Ball Valve

Aluminum Alloy Pneumatic Rack And Pinion Actuator For Ball Valve

Product Details:

Place of Origin: China
Brand Name: Veson/OEM
Certification: ISO/CE/SIL3
Model Number: VS-075DA

Payment & Shipping Terms:

Minimum Order Quantity: 1 Ea
Price: FOB Shanghai
Packaging Details: Carton/Plywood case
Delivery Time: One week
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/Month
Get Best Price Contact Now

Detail Information

Material: Aluminum Alloy Type: Pneumatic Actuator
Function: Quarter Turn Actuator Valve: Pneumatic Piston Actuator
Double Acting: 2.5bar~8bar Rotate Angle: :90°+- 5%
High Light:

pneumatic rack and pinion rotary actuators

,

air torque pneumatic actuator

Product Description

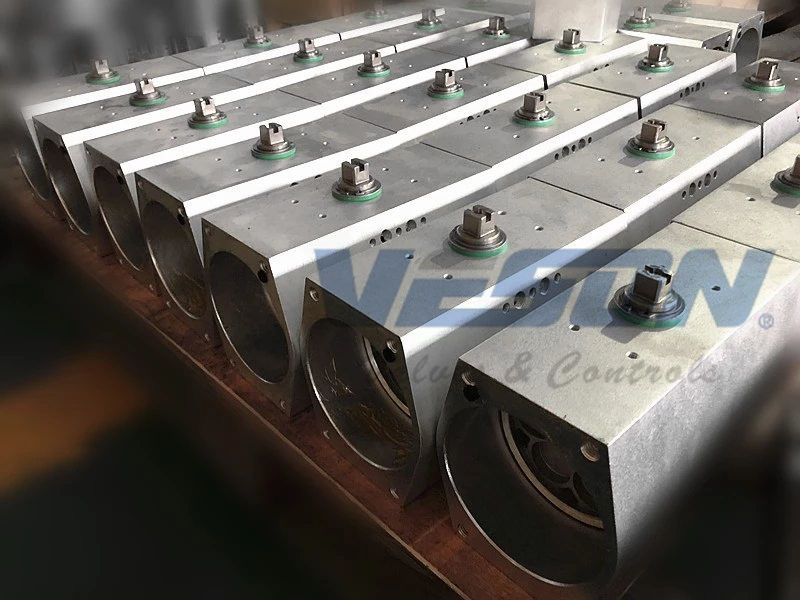

Aluminum Alloy Pneumatic Rack And Pinion Actuator For Ball Valve



Air rack and pinion pneumatic actuator



Through research development and design This series pneumatic actuators incorporate the latest technology materials and innovative idea. The product proudly boasts the following features.

Full conformance to the latest specifications: ISO5211,DIN3337 and VDINDE-3854,NAMUR.



The extruding high intensity aluminum body possesses a honed internal surface coated with hard anode oxygenation for long life. Low coefficient of friction and swift performance.





Excellent compact and modernized construction along with multi specifications makes the selection both economic and beneficial.





All acting surface adopt high quality bearing resulting in low friction, high cycle life, and no noise





The two independent external stroke adjustment bolts can easily and precisely adjust ±5°at both open and close directions.





Same outline actuators have the functional modes of double acting and single acting (Spring -Return). The Spring-Return has the normally-open and normally-close styles.





Multi function indicator with NAMUR is convenient for mounting accessories.





Pre-compressed load spring is convenient for safe mounting and tear down procedures.





Die-casting aluminum pistons and end caps have high intensity and light weight.





Different O-rings materials are available for high and low temperature.





Solenoid valves are easily mounted without any connecting plank.



pneumatic actuator rack and pinion



► Specifications of Pneumatic Actuator





1. Acting type: Double



2. Medium: clean, dry and without corrosive compressed air



3. Air supply pressure: 0.25 -0.8 Mpa



4. Working Temperature: Standard Type: -20°C~+80°C

Low-temperature Type: -40°C~+80°C

High-temperature Type:-20°C~+180°C



5. Rotate angle: 90°± 5°



6. Solenoid valve voltage: AC220V or DC24V , or as per customer’s request.



Model



A



B



C



D



E



F



G



H



I



N



A120*



A180*



J



K



VS-032

110 45 45 65 22.5 22.5 12 50 25 9



---



---



F03



---

4.33 1.77 1.77 2.56 0.89 0.89 0.47 1.97 0.98 0.35



VS-052

153 72 65 92 30 41.5 14 80 30 11 182 225



F05



F03

6.03 2.83 2.56 3.62 1.18 1.63 0.55 3.15 1.18 0.43 7.16 8.86



VS-063



VS-075

174 88 72 108 36 47 18 80 30 14 216 266



F07



F05

6.86 3.46 2.83 4.25 1.42 1.85 0.71 3.15 1.18 0.55 8.50 10.47
196 100 81 120 42 53 20 80 30 14 232 282



F07



F05

7.72 3.94 3.19 4.72 1.65 2.09 0.79 3.15 1.18 0.55 9.13 11.10



VS-083

208 109 92 129 46 57 21 80 30 17 245 304



F07



F05

8.20 4.29 3.62 5.08 1.81 2.24 0.83 3.15 1.18 0.67 9.65 12.0



VS-092

249 117 98 137 50 58.5 22 80 30 17 303 386



F07



F05

9.81 4.61 3.86 5.39 1.97 2.30 0.87 3.15 1.18 0.67 12.0 15.2



VS-105

278 133 110 153 58 62 26 80 30 22 330 414



F10



F07

10.95 5.24 4.33 6.02 2.28 2.44 1.02 3.15 1.18 0.87 13.0 16.3



VS-125

326 155 125.5 175 67.5 75 27.5 80 30 22 392 497



F10



F07

12.84 6.10 4.94 6.89 2.66 2.95 1.08 3.15 1.18 0.87 15.4 19.6



VS-140

396 173 137.5 193 75 77 32 80 30 27 475 601



F12



F10

15.60 6.81 5.41 7.60 2.95 3.03 1.26 3.15 1.18 1.06 18.7 23.7



VS-160

457 198 158 218 87 87 34 80 30 27 553 700



F12



F10

18.01 7.80 6.22 8.58 3.43 3.43 1.34 3.15 1.18 1.06 21.8 27.6



VS-190

538 232 189 262 103 103 40 130 30 36 623 790



F14



---

21.18 9.13 7.44 10.3 4.06 4.06 1.57 3.15 1.18 1.42 24.5 31.1



VS-210

568 257 210 287 113 113 40 130 30 36 662 851



F14



---

22.36 10.12 8.27 11.30 4.45 4.45 1.57 5.12 1.18 1.42 26.1 33.5



VS-240

660 291 245 321 130 130 50 130 30 46 828 1000



F16



---

26.0 11.46 9.65 12.64 5.12 5.12 1.97 5.12 1.18 1.81 32.6 39.4



VS-270

740 330 273 360 147 147 50 130 30 46 867 1119 F16



---

29.13 13.0 10.75 14.17 5.79 5.79 1.97 5.12 1.18 1.81 34.1 44.1



VS-300

798 354 290 384 90 173 50 130 30 46



F16

---



► Design & Construction Of AT Series Double Acting Pneumatic Actuator





1. Full conformance to the latest specification: ISO5211DIN3337VD/VDE3845and NAMUR.


2. The extruding high-intensity aluminum body possesses a honed internal surface coated with hone anode oxygenation for long life, low coefficient of friction and swift performance.


3. Excellent, compact and modernized construction along with multi-specifications make the selection both economic and beneficial.


4. All acting surfaces adopt high-quality bearings, resulting in low friction, high cycle life, and no noise. The two independent external travel stop adjustment bolts can easily and precisely adjust ±5°at both open and close directions.


5. The same outline actuator has the functional modes of double acting and spring return, and the spring return has the normal-open and normal-close styles.


6. Multi-function position indicator with NUMER is convenient for mounting accessories.


7. Pre-compressed load spring is convenient for safe mounting and teardown procedures.


8. Die-casting aluminum pistons and end caps have high intensity and lightweight.


9. Different O-rings materials are available for high and low temperature.


10. According to different demands we can offer Multi-travel rotations (e.g. 120°135°180°) and three position actuators.


11. Solenoid valves are easily mounted without any connecting plank.






► Transaction Process-Pneumatic Actuator



Aluminum Alloy Double Acting Pneumatic Actuator , AT-DA83 Compact Pneumatic Actuator

► FAQ-Pneumatic Actuator





1. Q: Is sample order acceptable?

A: Yes, of course.



2. Q: How to place the order?

A: You can send us an email or call me directly.



3. Q: How many days for delivery?

A: Normally within 15-20 days according to order quantity.



4. Q: How to make the payment?

A: We only accept T/T.



5. Q: How will you make the shipment?

A: By sea, air or express service.
