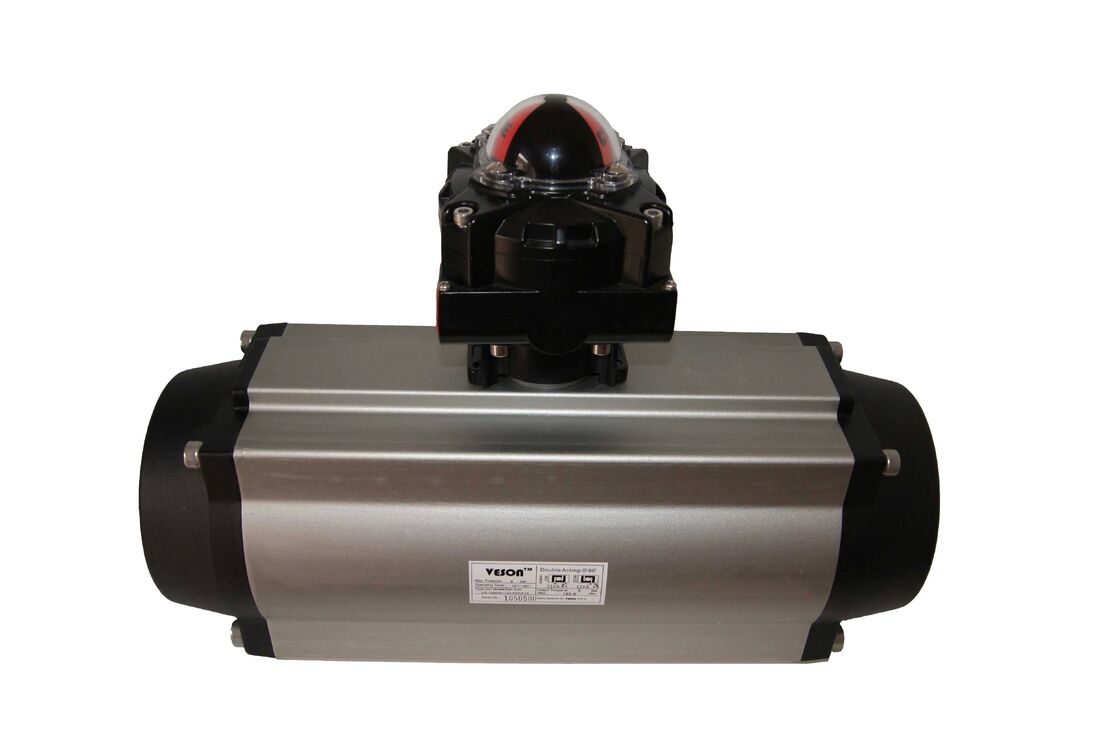

Aluminum Alloy Pneumatic Rack and Pinion Actuator with Hard Anodized Treatment and Epoxy Coated for Corrosion Resistance
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Model NO.: | VS-210 | Power: | Pneumatic |
|---|---|---|---|
| Standard: | Standard | Pressure Direction: | Double-acting Cylinder |
| Double-Acting Cylinder Type: | Double Rod Cylinder | Special Cylinder Type: | Number Of Cylinders |
| Combination Cylinder Type: | Pressurized Cylinder | Design Standard: | ISO5211 DIN3337 |
| Transport Package: | Plywood Case Package | Specification: | 1 Inch-12 Inch |
| Trademark: | VESON Or Cusomer"s | Origin: | China |
| HS Code: | 84123900 | Production Capacity: | 50000PC / Y |
| Highlight: | aluminum alloy pneumatic actuator,hard anodized rack and pinion actuator,corrosion resistant epoxy coated actuator |
||
Product Description
VS-210 (rack& pinion) have the following features.
> The output torque: Double: 1596NM; Single: 275~660Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
> The output torque: Double: 1596NM; Single: 275~660Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
