Product Details:

Payment & Shipping Terms:

Minimum Order Quantity: 1
Get Best Price Contact Now

Detail Information
Model NO.: VS-075 Connection Form: Namur & ISO5211
Channel: Straight Through Type Structure: Piston
Type: Rack & Pinion Temperature: Normal Temperature
Standard: ISO5211 Application: Industrial Usage, Water Industrial Usage
Transport Package: Plywood Case Package Specification: 1 Inch-12 Inch
Trademark: VESON Or Cusomer"s Origin: China
HS Code: 8481804090 Production Capacity: 50000PC / Y
Highlight:

Pneumatic rack and pinion actuator 70NM torque

,

Corrosion resistant pneumatic actuator

,

Namur connection rack and pinion actuator

Product Description

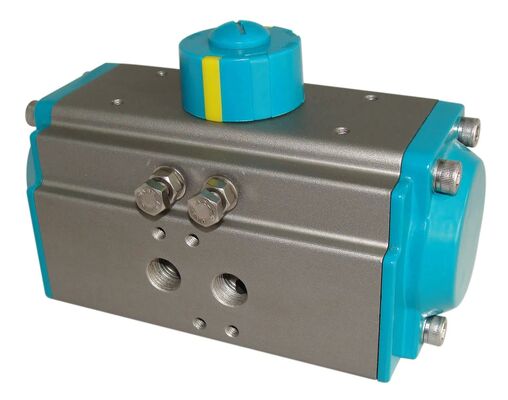

VS-075 (rack& pinion) have the following features.
> The output torque: Double: 70NM; Single: 11~26Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.

> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
