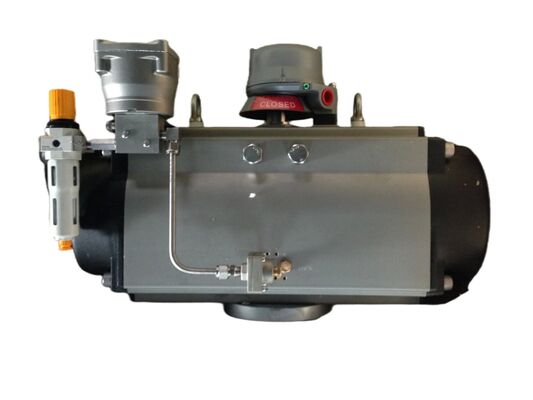

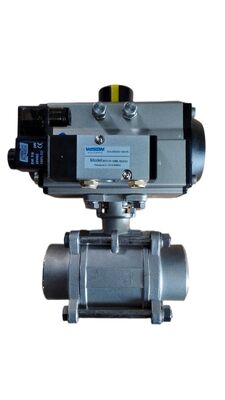

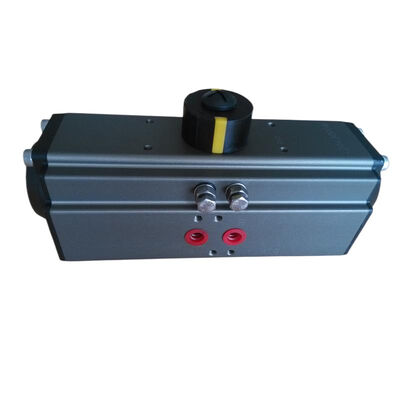

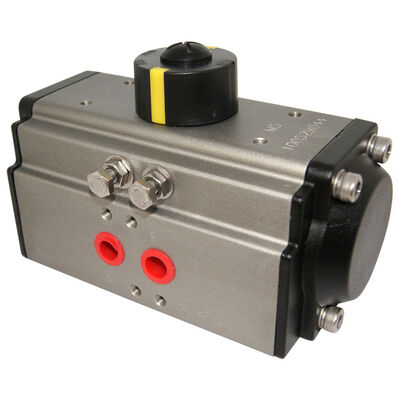

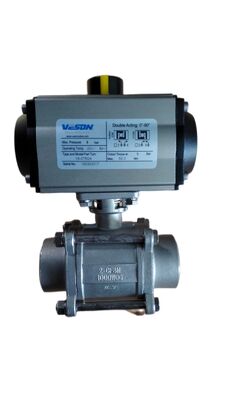

Rack Pinion Pneumatic Actuator with VDI/VDE3845 Standard Hard Anodized Treatment and Epoxy Coated for Industrial Usage
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Model NO.: | VS-083 | Channel: | Straight Through Type |
|---|---|---|---|
| Structure: | Piston | Type: | Rack & Pinion |
| Standard: | ISO5211 | Application: | Industrial Usage, Water Industrial Usage |
| Transport Package: | Plywood Case Package | Specification: | VS/32DA -400DA. Or 52SR-400SR |
| Trademark: | VESON Or Cusomer"s | Origin: | China |
| HS Code: | 84123900 | Production Capacity: | 50000PC / Y |
| Highlight: | VDI/VDE3845 pneumatic rack actuator,hard anodized rack pinion actuator,epoxy coated industrial pneumatic actuator |
||
Product Description
VS-075 (rack& pinion) have the following features.
> The output torque: Double: 86NM; Single: 15~35Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
> The output torque: Double: 86NM; Single: 15~35Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
