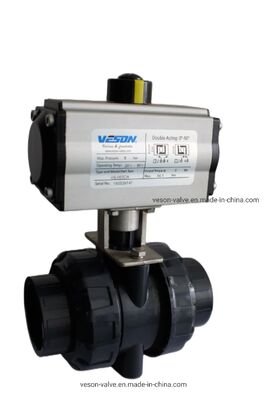

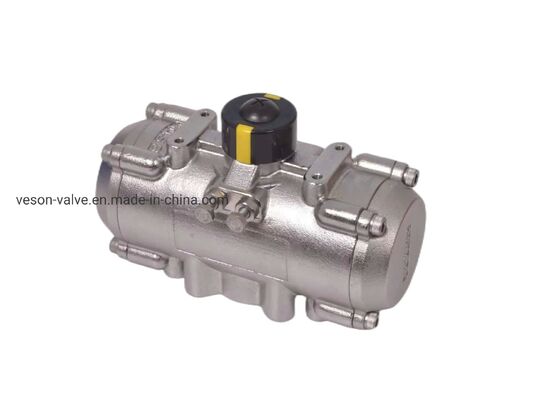

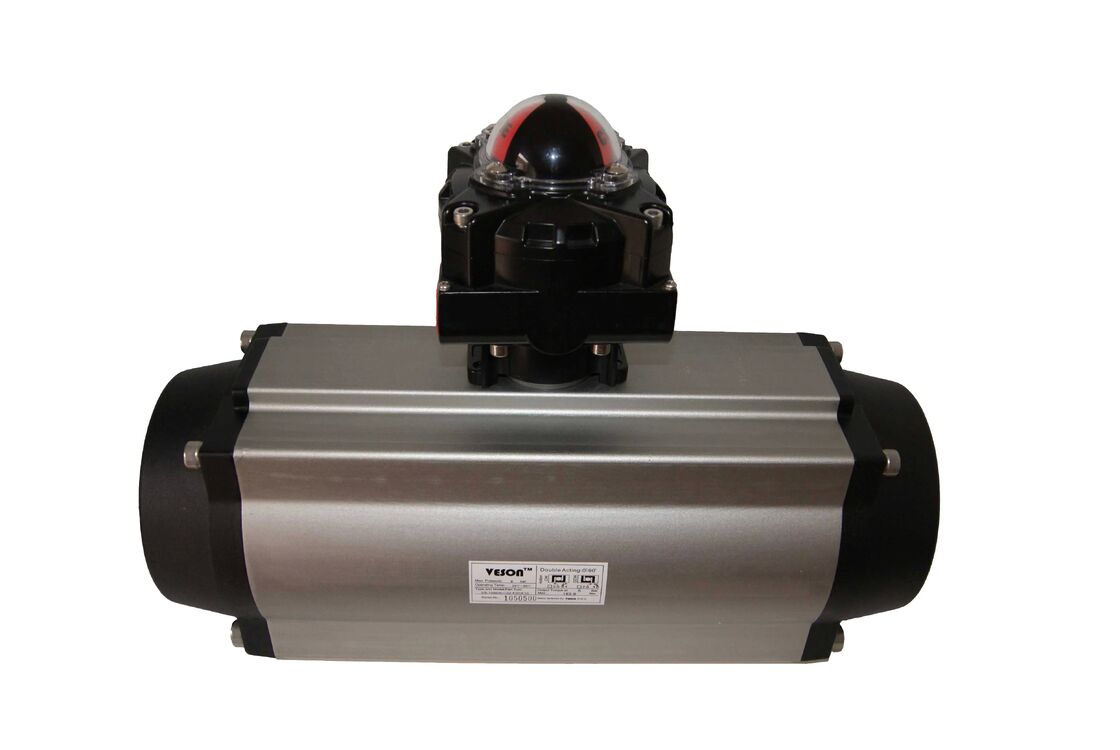

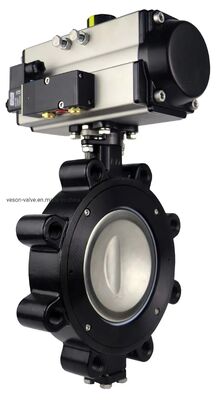

Pneumatic Rack and Pinion Actuator with 3878NM Output Torque VDI/VDE3845 Standard and 40-100psig Air Supply
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Model NO.: | VS-270 | Standard: | Standard |
|---|---|---|---|
| Pressure Direction: | Double-acting Cylinder | Double-Acting Cylinder Type: | Common Cylinder |
| Special Cylinder Type: | Number Of Cylinders | Combination Cylinder Type: | Pressurized Cylinder |
| Design Code: | ISO5211 | Air Supply: | 40-100psig |
| Transport Package: | Plywood Case Package | Specification: | CE, SGS |
| Trademark: | VESON Or Cusomer"s | Origin: | China |
| HS Code: | 8481804090 | Production Capacity: | 50000PC / Y |
| Highlight: | Pneumatic rack and pinion actuator with 3878NM torque,VDI/VDE3845 standard pneumatic actuator,40-100psig air supply rack actuator |
||
Product Description
VS-270 (rack& pinion) have the following features.
> The output torque: Double: 3878NM; Single: 560~1344Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
> The output torque: Double: 3878NM; Single: 560~1344Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
