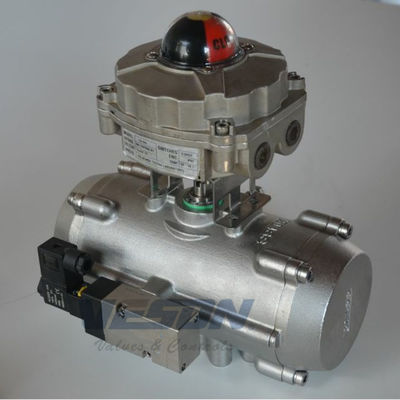

Stainless Steel Spring Return Valve Actuator , Air Operated Actuator 2~8 Bar Pressure
Product Details:
| Place of Origin: | China |
| Brand Name: | Veson/OEM |
| Certification: | ISO/CE/SIL3 |
| Model Number: | VS-083DA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ea |
|---|---|
| Price: | FOB Shanghai |
| Packaging Details: | Carton/Plywood case |
| Delivery Time: | One week |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000PCS/Month |
|
Detail Information |
|||
| Material: | Aluminum Alloy | Type: | Pneumatic Actuator |
|---|---|---|---|
| Function: | Quarter Turn Actuator | Valve: | Pneumatic Piston Actuator |
| Name: | Stainless Steel Rotary Actuator | Feature: | Durable |
| High Light: | air piston actuator spring return valve actuator,quarter turn valve actuator |
||
Product Description
Stainless Steel Spring Return And Double Acting Pneumatic Quarter-Turn Actuators Rotary Valve Actuators
Pneumatic actuator
| Material | Extruded Aluminum alloy |
| Rotary Angle | 0~90 degree |
| Structure | rack and pinion rotary actuator |
| Working Pressure | 2~8bar |
| Surface Treatment | hard anodizing |
| Working Temperature | Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F); High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F); Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F). |
| Connection | NAMUR, ISO5211, and DIN3337 |
| Application | ball valve, butterfly valve, and rotary machine |
| Cup Color | grey, black, sky blue, dark blue, red, orange |
Main Features
-1). Our design, material and size are definitely accord with ISO9001:2008, CE Certificate and ATEX Certificate.
-2). Our piston is treated thermal quenching to obtain better strength and prolong using life.
-3). The surface of our actuator body is treated hard anoidizing to against rust and scratch.
-4). We provide with OEM service
-5). Strict quality control
-6). Better quality at a better price
-7). Excellent After-service.
-8). Fast delivery time
Pneumatic Actuator Dimension
Pneumatic rotary actuator are greatly used in ball valve and butterfly valve.
Low cost, compact design, long working life.
Pneumatic actuator type: single acting (spring return) or double acting.
Color: orange, blue, black, dark gray. we accept OEM colors and brand.
Pneumatic actuator working pressure: 0.3~0.8MPa
Bottom connection: ISO 5211
Solenoid valve standard: Namur
Accessories of pneumatic actuator: limit switch box, solenoid valve, positioner.
Veson Double acting pneumatic actautor torque talble
| Size | Air supply pressure(bar/) | |||||
| 3.0 | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 | |
| Torque table (Nm) | ||||||
| VS-032DA | 4.6 | 6.1 | 7.6 | 9.2 | 10.7 | 12.2 |
| VS-052DA | 12.0 | 16.0 | 20.0 | 24.0 | 28.0 | 32.0 |
| VS-063DA | 21.7 | 28.9 | 36.0 | 43.4 | 50.6 | 57.8 |
| VS-075DA | 30.0 | 40.0 | 50.0 | 60.0 | 70.0 | 80.0 |
| VS-083DA | 46.8 | 62.4 | 78.0 | 93.6 | 109.2 | 124.8 |
| VS-092DA | 67.6 | 90.1 | 112.6 | 135.2 | 157.7 | 180.2 |
| VS-105DA | 97.7 | 130.3 | 162.9 | 195.5 | 228.0 | 260.6 |
| VS-125DA | 150.5 | 200.6 | 250.8 | 301.0 | 351.1 | 401.3 |
| VS-140DA | 260.7 | 347.6 | 433.8 | 521.4 | 608.3 | 695.2 |
| VS-160DA | 397.2 | 529.6 | 662.0 | 794.4 | 926.8 | 1059.2 |
| VS-190DA | 640.2 | 853.6 | 1067.0 | 1280.4 | 1493.8 | 1707.2 |
| VS-210DA | 798.0 | 1064.0 | 1330.0 | 1596.0 | 1862.0 | 2128.0 |
| VS-240DA | 1154.3 | 1539.0 | 1923.8 | 2308.5 | 2693.3 | 3078.0 |
| VS-270DA | 1755.0 | 2340.0 | 2924.0 | 3510.0 | 4095.0 | 4680.0 |
| VS-300DA | 2291.4 | 3055.2 | 3819.0 | 4582.8 | 5346.6 | 6110.4 |
NAUMR Standard Double Acting Rack and Pinion Pneumatic Actuator
► Specifications of Pneumatic Actuator
1. Acting type: Double
2. Medium: clean, dry and without corrosive compressed air
3. Air supply pressure: 0.25 -0.8 Mpa
4. Working Temperature: Standard Type: -20°C~+80°C
High-temperature Type:-20°C~+180°C
5. Rotate angle: 90°± 5°
6. Solenoid valve voltage: AC220V or DC24V , or as per customer’s request.
► Design & Construction Of AT Series Double Acting Pneumatic Actuator
1. Full conformance to the latest specification: ISO5211DIN3337VD/VDE3845and NAMUR.
2. The extruding high-intensity aluminum body possesses a honed internal surface coated with hone anode oxygenation for long life, low coefficient of friction and swift performance.
3. Excellent, compact and modernized construction along with multi-specifications make the selection both economic and beneficial.
4. All acting surfaces adopt high-quality bearings, resulting in low friction, high cycle life, and no noise. The two independent external travel stop adjustment bolts can easily and precisely adjust ±5°at both open and close directions.
5. The same outline actuator has the functional modes of double acting and spring return, and the spring return has the normal-open and normal-close styles.
6. Multi-function position indicator with NUMER is convenient for mounting accessories.
7. Pre-compressed load spring is convenient for safe mounting and teardown procedures.
8. Die-casting aluminum pistons and end caps have high intensity and lightweight.
9. Different O-rings materials are available for high and low temperature.
10. According to different demands we can offer Multi-travel rotations (e.g. 120°135°180°) and three position actuators.
11. Solenoid valves are easily mounted without any connecting plank.
