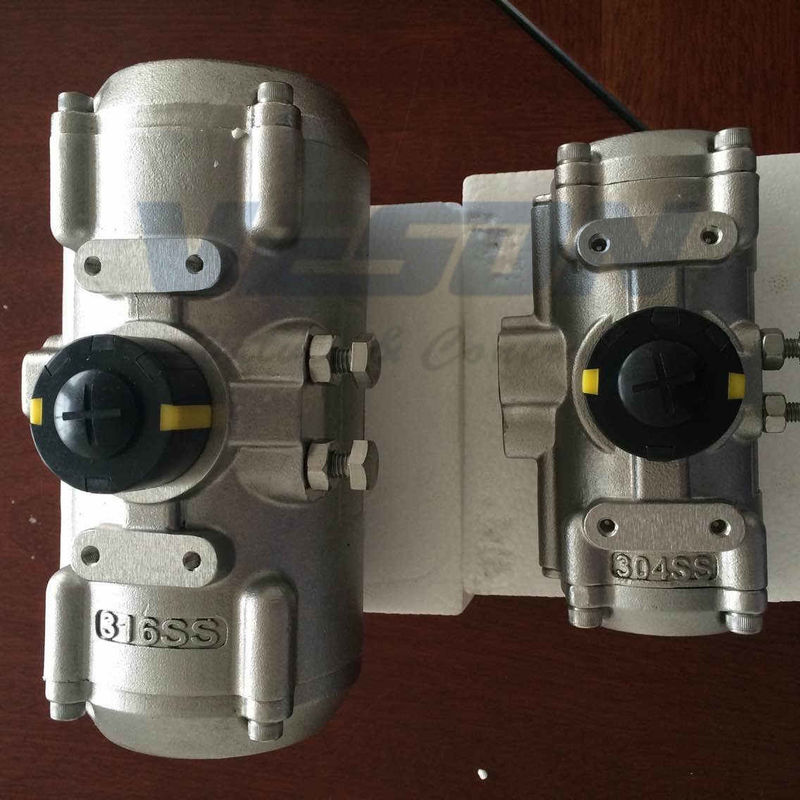

Heavy Duty Stainless Steel Pneumatic Actuator For Corrosive / Harsh Chemical Environments

Heavy Duty Stainless Steel Pneumatic Actuator For Corrosive / Harsh Chemical Environments

Product Details:

Place of Origin: China
Brand Name: Veson/OEM
Certification: ISO/CE/SIL3
Model Number: VS-083DA

Payment & Shipping Terms:

Minimum Order Quantity: 1 Ea
Price: FOB Shanghai
Packaging Details: Carton/Plywood case
Delivery Time: One week
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/Month
Get Best Price Contact Now

Detail Information

Material: Aluminum Alloy Type: Pneumatic Actuator
Function: Quarter Turn Actuator Valve: Pneumatic Piston Actuator
Name: Double Acting Valve Actuator Rotary Angle: 0~90 Degree
High Light:

quarter turn valve actuator

,

stainless steel rotary actuator

Product Description

Pneumatic Stainless Steel Rack And Pinion Actuators Are For Use In Corrosive And Harsh Chemical Environments



Application
Auto-control in the field of electric power, petrochemical, metallurgy, petroleum, gas, town, construction, drainage, chemical industry, oil refining, mining, power plant, metallurgy, architecture, medicine, food, gas, scientific research, etc.



Pneumatic actuator


Material Extruded Aluminum alloy
Rotary Angle 0~90 degree
Structure rack and pinion rotary actuator
Working Pressure 2~8bar
Surface Treatment hard anodizing
Working Temperature Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F);

High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F);

Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F).
Connection NAMUR, ISO5211, and DIN3337
Application ball valve, butterfly valve, and rotary machine
Cup Color grey, black, sky blue, dark blue, red, orange

Pneumatic Actuator Dimension

Heavy Duty Stainless Steel Pneumatic Actuator For Corrosive / Harsh Chemical Environments 0



Pneumatic rotary actuator are greatly used in ball valve and butterfly valve.

Low cost, compact design, long working life.

Pneumatic actuator type: single acting (spring return) or double acting.

Color: orange, blue, black, dark gray. we accept OEM colors and brand.

Pneumatic actuator working pressure: 0.3~0.8MPa

Bottom connection: ISO 5211

Solenoid valve standard: Namur

Accessories of pneumatic actuator: limit switch box, solenoid valve, positioner.



Veson Double acting pneumatic actautor torque talble

Size Air supply pressure(bar/)
3.0 4.0 5.0 6.0 7.0 8.0
Torque table (Nm)
VS-032DA 4.6 6.1 7.6 9.2 10.7 12.2
VS-052DA 12.0 16.0 20.0 24.0 28.0 32.0
VS-063DA 21.7 28.9 36.0 43.4 50.6 57.8
VS-075DA 30.0 40.0 50.0 60.0 70.0 80.0
VS-083DA 46.8 62.4 78.0 93.6 109.2 124.8
VS-092DA 67.6 90.1 112.6 135.2 157.7 180.2
VS-105DA 97.7 130.3 162.9 195.5 228.0 260.6
VS-125DA 150.5 200.6 250.8 301.0 351.1 401.3
VS-140DA 260.7 347.6 433.8 521.4 608.3 695.2
VS-160DA 397.2 529.6 662.0 794.4 926.8 1059.2
VS-190DA 640.2 853.6 1067.0 1280.4 1493.8 1707.2
VS-210DA 798.0 1064.0 1330.0 1596.0 1862.0 2128.0
VS-240DA 1154.3 1539.0 1923.8 2308.5 2693.3 3078.0
VS-270DA 1755.0 2340.0 2924.0 3510.0 4095.0 4680.0
VS-300DA 2291.4 3055.2 3819.0 4582.8 5346.6 6110.4









Heavy Duty Stainless Steel Pneumatic Actuator For Corrosive / Harsh Chemical Environments 1









Heavy Duty Stainless Steel Pneumatic Actuator For Corrosive / Harsh Chemical Environments 2

Heavy Duty Stainless Steel Pneumatic Actuator For Corrosive / Harsh Chemical Environments 3

Heavy Duty Stainless Steel Pneumatic Actuator For Corrosive / Harsh Chemical Environments 4



NAUMR Standard Double Acting Rack and Pinion Pneumatic Actuator



► Specifications of Pneumatic Actuator





1. Acting type: Double



2. Medium: clean, dry and without corrosive compressed air



3. Air supply pressure: 0.25 -0.8 Mpa



4. Working Temperature: Standard Type: -20°C~+80°C


High-temperature Type:-20°C~+180°C



5. Rotate angle: 90°± 5°



6. Solenoid valve voltage: AC220V or DC24V , or as per customer’s request.





► Design & Construction Of AT Series Double Acting Pneumatic Actuator





1. Full conformance to the latest specification: ISO5211DIN3337VD/VDE3845and NAMUR.


2. The extruding high-intensity aluminum body possesses a honed internal surface coated with hone anode oxygenation for long life, low coefficient of friction and swift performance.


3. Excellent, compact and modernized construction along with multi-specifications make the selection both economic and beneficial.


4. All acting surfaces adopt high-quality bearings, resulting in low friction, high cycle life, and no noise. The two independent external travel stop adjustment bolts can easily and precisely adjust ±5°at both open and close directions.


5. The same outline actuator has the functional modes of double acting and spring return, and the spring return has the normal-open and normal-close styles.


6. Multi-function position indicator with NUMER is convenient for mounting accessories.


7. Pre-compressed load spring is convenient for safe mounting and teardown procedures.


8. Die-casting aluminum pistons and end caps have high intensity and lightweight.


9. Different O-rings materials are available for high and low temperature.


10. According to different demands we can offer Multi-travel rotations (e.g. 120°135°180°) and three position actuators.


11. Solenoid valves are easily mounted without any connecting plank.






► Transaction Process-Pneumatic Actuator



Aluminum Alloy Double Acting Pneumatic Actuator , AT-DA83 Compact Pneumatic Actuator

► FAQ-Pneumatic Actuator





1. Q: Is sample order acceptable?

A: Yes, of course.



2. Q: How to place the order?

A: You can send us an email or call me directly.



3. Q: How many days for delivery?

A: Normally within 15-20 days according to order quantity.



4. Q: How to make the payment?

A: We only accept T/T.



5. Q: How will you make the shipment?

A: By sea, air or express service.
