TU Pneumatic Operated Ball Valve , Pneumatic Pressure Control Valve Long Using Life

TU Pneumatic Operated Ball Valve , Pneumatic Pressure Control Valve Long Using Life

Product Details:

Place of Origin: China
Brand Name: Veson/OEM
Certification: ISO/CE/SIL3
Model Number: VS-083DA

Payment & Shipping Terms:

Minimum Order Quantity: 1 Ea
Price: FOB Shanghai
Packaging Details: Carton/Plywood case
Delivery Time: One week
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/Month
Get Best Price Contact Now

Detail Information

Material: Aluminum Alloy Type: Pneumatic Actuator
Function: Quarter Turn Actuator Valve: Pneumatic Piston Actuator
High Light:

air operated ball valve

,

pneumatic pressure control valve

Product Description

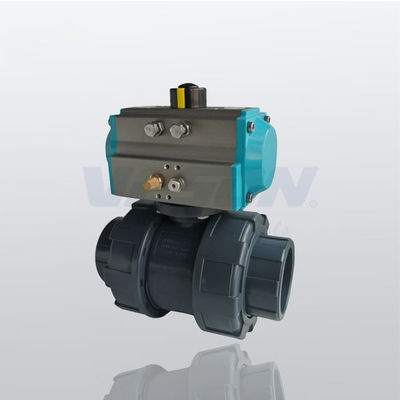

TU Pneumatic Operated Ball Valve , Pneumatic Pressure Control Valve Long Using Life





Double acting

Size Air supply pressure(bar/)
3.0 4.0 5.0 6.0 7.0 8.0
Torque table (Nm)
VS-032DA 4.6 6.1 7.6 9.2 10.7 12.2
VS-052DA 12.0 16.0 20.0 24.0 28.0 32.0
VS-063DA 21.7 28.9 36.0 43.4 50.6 57.8
VS-075DA 30.0 40.0 50.0 60.0 70.0 80.0
VS-083DA 46.8 62.4 78.0 93.6 109.2 124.8
VS-092DA 67.6 90.1 112.6 135.2 157.7 180.2
VS-105DA 97.7 130.3 162.9 195.5 228.0 260.6
VS-125DA 150.5 200.6 250.8 301.0 351.1 401.3
VS-140DA 260.7 347.6 433.8 521.4 608.3 695.2
VS-160DA 397.2 529.6 662.0 794.4 926.8 1059.2
VS-190DA 640.2 853.6 1067.0 1280.4 1493.8 1707.2
VS-210DA 798.0 1064.0 1330.0 1596.0 1862.0 2128.0
VS-240DA 1154.3 1539.0 1923.8 2308.5 2693.3 3078.0
VS-270DA 1755.0 2340.0 2924.0 3510.0 4095.0 4680.0
VS-300DA 2291.4 3055.2 3819.0 4582.8 5346.6 6110.4



valve ;



1) Body Material :PVC-U PP-H FRPP
2) Handle Material:ABS

3) Size: 2 1/2 " to 4 "
4) Standard: DIN JIS ANSI UNIVERSAL
5) O-ring Material: EPDM or FPM
6) Connect Way: Socket Weld /Threaded flange /Butt weld

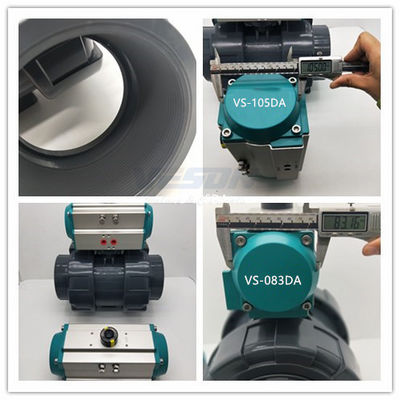

TU Pneumatic Operated Ball Valve , Pneumatic Pressure Control Valve Long Using Life 0



► Design & Construction Of AT Series Double Acting Pneumatic Actuator





1. Full conformance to the latest specification: ISO5211DIN3337VD/VDE3845and NAMUR.


2. The extruding high-intensity aluminum body possesses a honed internal surface coated with hone anode oxygenation for long life, low coefficient of friction and swift performance.


3. Excellent, compact and modernized construction along with multi-specifications make the selection both economic and beneficial.


4. All acting surfaces adopt high-quality bearings, resulting in low friction, high cycle life, and no noise. The two independent external travel stop adjustment bolts can easily and precisely adjust ±5°at both open and close directions.


5. The same outline actuator has the functional modes of double acting and spring return, and the spring return has the normal-open and normal-close styles.


6. Multi-function position indicator with NUMER is convenient for mounting accessories.


7. Pre-compressed load spring is convenient for safe mounting and teardown procedures.


8. Die-casting aluminum pistons and end caps have high intensity and lightweight.


9. Different O-rings materials are available for high and low temperature.


10. According to different demands we can offer Multi-travel rotations (e.g. 120°135°180°) and three position actuators.


11. Solenoid valves are easily mounted without any connecting plank.






► Transaction Process-Pneumatic Actuator



Aluminum Alloy Double Acting Pneumatic Actuator , AT-DA83 Compact Pneumatic Actuator

► FAQ-Pneumatic Actuator





1. Q: Is sample order acceptable?

A: Yes, of course.



2. Q: How to place the order?

A: You can send us an email or call me directly.



3. Q: How many days for delivery?

A: Normally within 15-20 days according to order quantity.



4. Q: How to make the payment?

A: We only accept T/T.



5. Q: How will you make the shipment?

A: By sea, air or express service.
