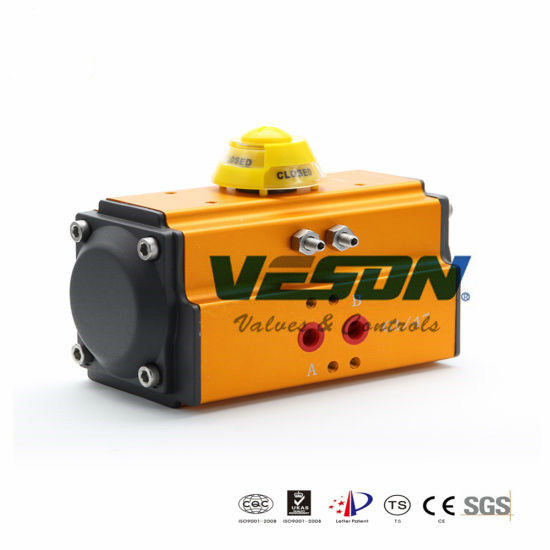

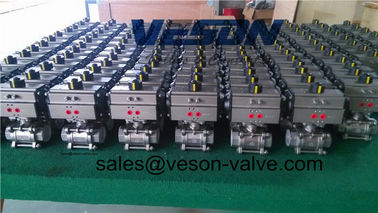

Durable Pneumatic Rotary Valve Actuator / Rack And Pinion Valve Actuator 0.25 -0.8 Mpa
Product Details:
| Place of Origin: | China |
| Brand Name: | Veson/OEM |
| Certification: | ISO/CE/SIL3 |
| Model Number: | VS-075DA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ea |
|---|---|
| Price: | FOB Shanghai |
| Packaging Details: | Carton/Plywood case |
| Delivery Time: | One week |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000PCS/Month |
|
Detail Information |
|||
| Material: | Aluminum Alloy | Type: | Rack And Pinion Valve Actuator |
|---|---|---|---|
| Function: | Quarter Turn Actuator | Installation Valves: | Butterfly Valves, Ball Valves |
| Feature: | High Corrosion Resistance Wear Resistance | Accessory Connection: | ISO5211 And DIN3337 |
| High Light: | rack and pinion valve actuator,pneumatic rack and pinion rotary actuators |
||
Product Description
Valve Actuator Controls Accessories Double Acting Pneumatic Actuator
► Specifications of Pneumatic Actuator
1. Acting type: Double
2. Medium: clean, dry and without corrosive compressed air
3. Air supply pressure: 0.25 -0.8 Mpa
4. Working Temperature: Standard Type: -20°C~+80°C
Low-temperature Type: -40°C~+80°C
| BALL VALVE 3-way | ||||||
| Selection of pneumatic actuator: matching size for reference only, valve torque plus 25% safety factor | ||||||
| Size | Valve Torque in.lbs | valve torque*1.25 | Double Acting Actuator | Actuator Torque (in.lbs) 5bar | Spring Return Actuator | Actuator Torque (in.lbs) 5bar FC |
| 1/2" | 79 | 98.75 | VS-052DA | 177 | VS-052SR10 | 70-104 |
| 3/4" | 85 | 106.25 | VS-052DA | 177 | VS-052SR10 | 70-104 |
| 1" | 110 | 137.5 | VS-052DA | 177 | VS-075SR10 | 190-318 |
| 1-1/2" | 290 | 362.5 | VS-075DA | 515 | VS-092SR10 | 407-574 |
| 2" | 680 | 850 | VS-092DA | 997 | VS-125SR10 | 1018-1497 |
| 2-1/2" | 1085 | 1356.3 | VS-105DA | 1441 | VS-140SR10 | 1538-2247 |
| 3" | 1597 | 1996.3 | VS-125DA | 2555 | VS-160SR10 | 2379-3388 |
| 4" | 1780 | 2225 | VS-125DA | 2555 | VS-160SR10 | 2379-3388 |
| BALL VALVE 2-way | ||||||
| Size | valve torque*1.25 | Valve Top Connection (mm) | Double Acting Actuator | Actuator Torque (in.lbs) 5bar | Spring Return Actuator | Actuator Torque (in.lbs) 5bar FC |
| 1/2" | 90 | 9 | VS-052DA | 177 | VS-052-SR10 | 70-104 |
| 3/4" | 100 | 9 | VS-052DA | 177 | VS-052-SR10 | 70-104 |
| 1" | 140 | 11 | VS-052DA | 177 | VS-063-SR10 | 190-318 |
| 1-1/2" | 240 | 14 | VS-063DA | 320 | VS-083-SR10 | 264-359 |
| 2" | 480 | 14 | VS-075DA | 515 | VS-105-SR10 | 562-857 |
| 2-1/2" | 650 | 17 | VS-083DA | 631 | VS-125-SR10 | 1018-1497 |
| 3" | 1150 | 17 | VS-105DA | 1441 | VS-140-SR10 | 1538-2247 |
| 4" | 1400 | 22 | VS-105DA | 1441 | VS-140-SR10 | 1538-2247 |
| Model | EX1 mm | EX2 mm | Od/mm | 15 | 2 | O Ring (Piston) |
| VS-052 | 1M6×25 | M6×20 | ∮15 | 16 | min.5/ max.12 | Spring (Cartridge) |
| VS-063 | M6×25 | M6×20 | ∮18 | 17 | 1 | Spring (Cartridge) |
| VS-075 | M8×30 | M6×25 | ∮20 | 18 | 1 | Spring Clip (Pinion) |
| VS-083 | M10×35 | M6×25 | ∮20 | 19 | 1 | Position Indicator |
| VS-092 | M10×40 | M8×30 | ∮25 | 20 | 1 | O Ring (Pinion botton) |
| VS-105 | M12×40 | M8×30 | ∮25 | 21 | 1 | O Ring (Pinion top) |
| VS-125 | M12×45 | M10×35 | ∮35 | 30 | 1 | End Cap (Right) |
| VS-140 | M14×55 | M10×40 | ∮40 | 31 | 1 | End Cap (Left) |
| VS-160 | M16×55 | M10×45 | ∮45 | 39 | 1 | Cap Screw (Indicator) |
| VS-190 | M16×65 | M12×55 | ∮50 | 40 | 2 | Piston |
| VS-210 | M16×70 | M14×60 | ∮55 | 41 | 1 | Actuator Identification Label |
| VS-240 | M16×80 | M16×65 | ∮55 | 50 | 1 | Body |
| VS-270 | M16×90 | M20×80 | ∮55 | 60 | 1 | Drive Shaft |
High-temperature Type:-20°C~+180°C
5. Rotate angle: 90°± 5°
6. Solenoid valve voltage: AC220V or DC24V , or as per customer’s request.
Features for new type rack and pinion pneumatic actuator
1. rack and pinion design
2. Integral design, double-acting and single-acting(spring return) options available.
3. The extruded high-quality aluminium alloy cylinder body, has long service life and low friction coefficient by hard anodic oxidation treatment.
4. Multi-functional position indicator, field visual indication, in line with VID/VIE3845, NAMUR standard slot, can install and output all accessories, such as limit switch box, electrical positioner, position sensor.
5. The air source interface meets the NRMAR standard, and NUMAR standard solenoid valve can be installed directly.
6. Composite material bearings reduce metal friction and increase lubrication, prolong service life.
7. All fasteners are stainless steel with long-term corrosion resistance.
8. The connection conforms to ISO5211, and DIN3337 (F03-F25) makes the production and installation interchangeable and universal.
