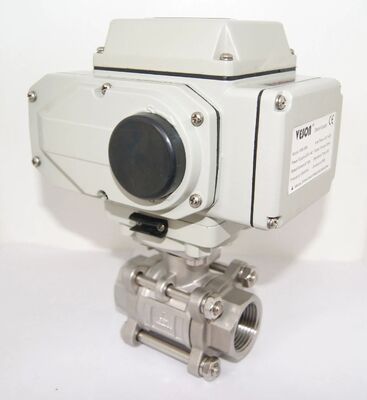

Electric Actuated Ball Valve with 3-PC Screwed End, PN1.0-32.0MPa Pressure Rating, and ISO5211 Standard Compliance
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Model NO.: | VS-063DA | Connection Form: | Thread |
|---|---|---|---|
| Driving Mode: | Electric | Nominal Pressure: | PN1.0-32.0MPa |
| Channel: | Straight Through Type | Structure: | Floating Ball Valve |
| Type: | Floating Ball Valve | Function: | Blow-Down Valve, Relief Valve, Atmospheric Valve |
| Temperature: | Normal Temperature | Standard: | ISO5211 |
| Transport Package: | Plywood Case Package Or Carton Case Package | Specification: | VSE-20 |
| Trademark: | VESON Or Cusomer"s | Origin: | China |
| HS Code: | 8481804090 | Production Capacity: | 50000PC / Y |
| Highlight: | 3-PC Screwed End Electric Actuated Ball Valve,PN1.0-32.0MPa Motorized Ball Valve,ISO5211 Standard Electric Ball Valve |
||
Product Description

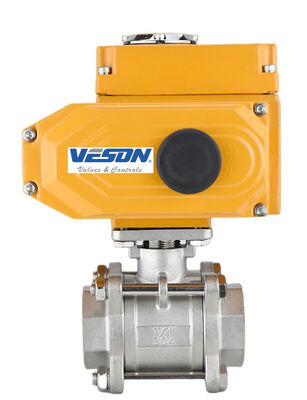

VS series electric actuated ball valve (3-PC SCREWED END):
Valve: 3-PC Screwed End Ball Valve (two way)
Valve Size: 1/4"~4" ( DN6~DN100)
Body/ Ball Material: CF8/CF8M/CF3M
Seat Material: PTFE, RTFE, Graphite & Others
Rating: 1000WOG, 2000WOG
Connection: Female Thread, SW (Socket Welded), Butt-weld
Valve: 3-PC Screwed End Ball Valve (two way)
Valve Size: 1/4"~4" ( DN6~DN100)
Body/ Ball Material: CF8/CF8M/CF3M
Seat Material: PTFE, RTFE, Graphite & Others
Rating: 1000WOG, 2000WOG
Connection: Female Thread, SW (Socket Welded), Butt-weld
