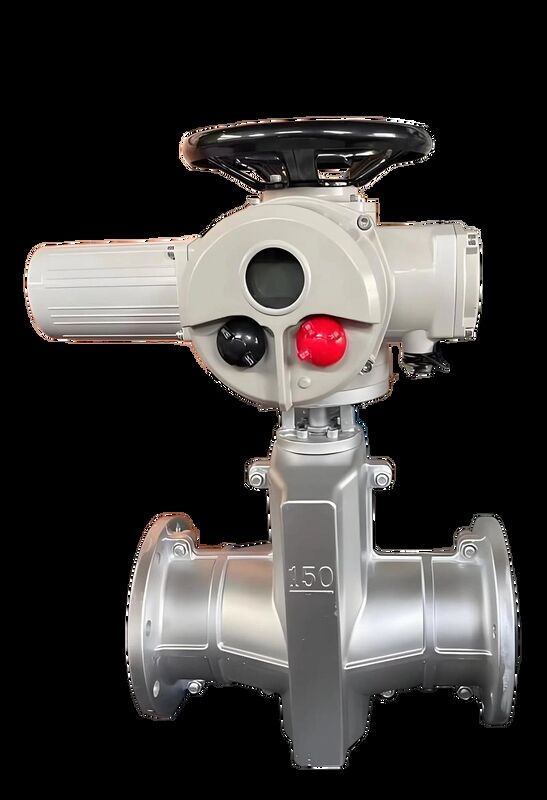

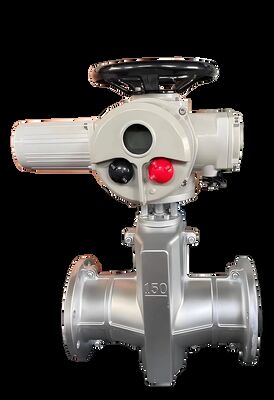

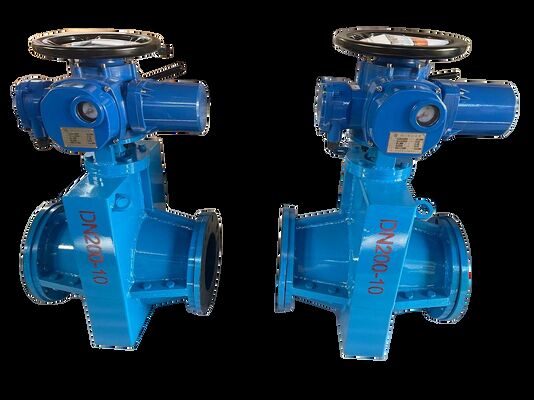

Electric Pinch Valve Solution Featuring Intelligent Electro-Pneumatic Positioner for Mining Slurry Flow
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | VESON |
| Certification: | ISO 9001:2015 SGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | USD 280-2200 / Piece |
| Packaging Details: | VESON branded plywood case with shock-proof foam insert, export-grade packaging |
| Delivery Time: | 5-7 working days for stock, 20-30 days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 2500 Pieces per Month |
|
Detail Information |
|||
| Valve Type: | Pneumatic Pinch Valve (Full Bore) | Size Range: | DN25 To DN400 (1" To 16") |
|---|---|---|---|
| Pressure Rating: | PN10 / PN16 / Class 150 | Body Material: | Cast Iron, Ductile Iron, SS304 |
| Sleeve Material: | Natural Rubber, EPDM, NBR, Hypalon | Actuator Type: | Pneumatic Diaphragm / Piston Actuator |
| Positioner: | Electro-Pneumatic Smart Positioner (4-20mA Input, HART Optional) | Air Supply: | 4-8 Bar (60-120 Psi) |
| Operating Temperature: | -40°C To +120°C | End Connection: | Flanged ANSI B16.5 / DIN PN16 |
| Highlight: | Mining Slurry Control,Pneumatic Pinch Valve,Electro-Pneumatic Positioner |
||
Product Description
Pneumatic Pinch Valve with Intelligent Electro-Pneumatic Positioner for Mining Slurry Flow Control
The VESON Pneumatic Pinch Valve with Electro-Pneumatic Positioner delivers precise modulating flow control for the most demanding mining slurry applications. The combination of a fast-acting pneumatic actuator with an intelligent smart positioner enables accurate throttling of abrasive slurries that would destroy conventional control valves within weeks.
Key Features
- Smart Positioner Technology: 4-20mA input with optional HART protocol for remote configuration, diagnostics, and predictive maintenance alerts
- Fast Actuation: Pneumatic diaphragm actuator delivers full stroke in under 3 seconds for rapid process response
- Modulating Control: Precise flow regulation from 0-100% stroke with linear or equal percentage characterization
- Replaceable Sleeve: Quick-change reinforced rubber sleeve design minimizes downtime to under 15 minutes per replacement
- Self-Cleaning Action: Pinch mechanism flexes the sleeve on every stroke, preventing solids buildup and scale formation
- Fail-Safe Options: Spring-return actuator available for fail-open or fail-close on loss of air supply
Technical Specifications
| Parameter | Specification |
| Valve Type | Electric Pinch Valve (Full Bore) |
| Size Range | DN25 to DN400 (1" to 16") |
| Pressure Rating | PN10 / PN16 / Class 150 |
| Body Material | Cast Iron, Ductile Iron, SS304 |
| Sleeve Material | Natural Rubber, EPDM, NBR, Hypalon |
| Actuator Type | Pneumatic Diaphragm / Piston Actuator |
| Positioner | Electro-Pneumatic Smart Positioner (4-20mA, HART Optional) |
| Air Supply | 4-8 bar (60-120 psi) |
| Operating Temperature | -40°C to +120°C |
| End Connection | Flanged (ANSI B16.5 / DIN PN16) |
| Shutoff Class | Class VI (Bubble-Tight) |
| Certification | ISO 9001:2015, SGS |
Target Applications
- Mining slurry flow control and throttling
- Mineral processing feed regulation
- Thickener underflow control
- Tailings pipeline flow modulation
- Flotation circuit feed control
Factory pre-configured with positioner calibration, full stroke testing, and material certificates. Contact our engineering team for process-specific sleeve material recommendations.
