Full-Bore Electric Pinch Valve Product Solution Engineered for Extended Service Life Chemical Slurry Processing
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | VESON |
| Certification: | ISO 9001:2015 SGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | USD 400-2800 / Piece |
| Packaging Details: | VESON branded plywood case with shock-proof foam insert, export-grade packaging |
| Delivery Time: | 7-10 working days for stock, 25-35 days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 1800 Pieces per Month |
|
Detail Information |
|||
| Valve Type: | Electric Pinch Valve (Full Bore) | Size Range: | DN25 To DN500 (1" To 20") |
|---|---|---|---|
| Pressure Rating: | PN10 / PN16 | Body Material: | Ductile Iron Epoxy Coated, SS304, SS316L |
| Sleeve Material: | NBR, EPDM, Viton, Hypalon, PTFE-Lined | Actuator Type: | Electric Multi-Turn Actuator With Manual Override |
| Service Life: | 50,000+ Cycles With Standard Sleeve | Operating Temperature: | -40°C To +150°C |
| End Connection: | Flanged ANSI B16.5 / DIN PN16 | Certification: | ISO 9001:2015, SGS |
| Highlight: | Extended Service Life,Chemical Slurry Valve,Full-Bore Pinch Valve |
||
Product Description

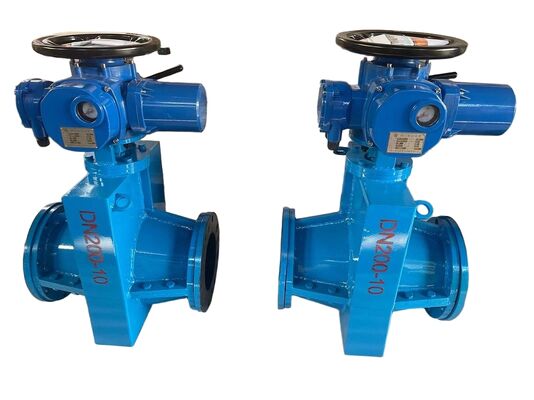

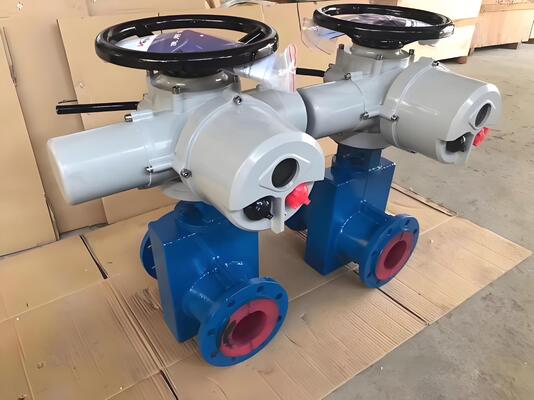

Full-Bore Electric Pinch Valve for Extended Service Life in Chemical Slurry Processing
The VESON Full-Bore Electric Pinch Valve is purpose-built for chemical slurry processing environments where extended service life and chemical resistance are paramount. Featuring a heavy-duty reinforced sleeve with multiple elastomer options including Viton, Hypalon, and PTFE-lined variants, this valve delivers years of reliable service in the most aggressive chemical media.
Designed for Longevity
- Reinforced Sleeve Technology: Multi-layer fabric-reinforced rubber sleeve rated for 50,000+ full cycles, significantly outperforming standard pinch valve sleeves
- Chemical-Resistant Elastomers: Select from NBR, EPDM, Viton, Hypalon, or PTFE-lined sleeves for optimal compatibility with your specific chemical media
- Epoxy-Coated Body: Ductile iron body with fusion-bonded epoxy coating provides superior corrosion protection in chemical plant environments
- Electric Actuator Reliability: Industrial-grade multi-turn electric actuator with manual override handwheel, thermal overload protection, and IP67 weatherproof enclosure
- Low Maintenance Design: Only one wearing part (the sleeve) eliminates the need for packing adjustments, seat replacements, or gland maintenance
Technical Specifications
| Parameter | Specification |
| Valve Type | Electric Pinch Valve (Full Bore) |
| Size Range | DN25 to DN500 (1" to 20") |
| Pressure Rating | PN10 / PN16 |
| Body Material | Ductile Iron Epoxy Coated, SS304, SS316L |
| Sleeve Material | NBR, EPDM, Viton, Hypalon, PTFE-Lined |
| Actuator Type | Electric Multi-Turn with Manual Override |
| Power Supply | 24V DC, 110V AC, 220V AC, 380V AC 3-Phase |
| Service Life | 50,000+ Cycles with Standard Sleeve |
| Operating Temperature | -40°C to +150°C |
| End Connection | Flanged (ANSI B16.5 / DIN PN16) |
| Enclosure Rating | IP67 Weatherproof |
| Certification | ISO 9001:2015, SGS |
Target Applications
- Chemical plant corrosive slurry transfer
- Acid and caustic solution handling
- Polymer and resin feed systems
- Waste acid neutralization systems
- Pigment and coating slurry processing
Factory tested with hydrostatic shell test and pneumatic seat leakage test. Complete material traceability and NACE MR0175 compliance available for sour service. Contact us for elastomer compatibility guidance.
