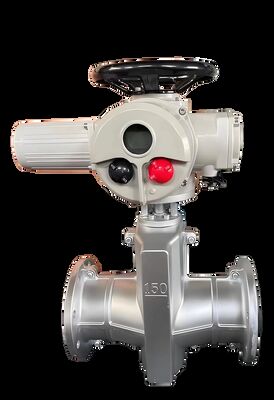

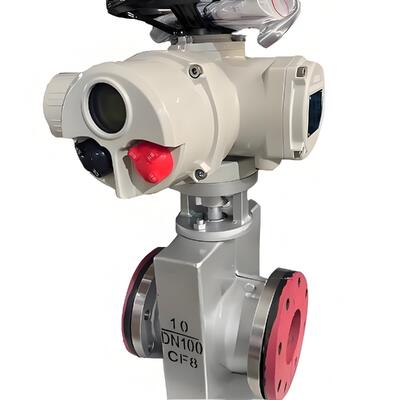

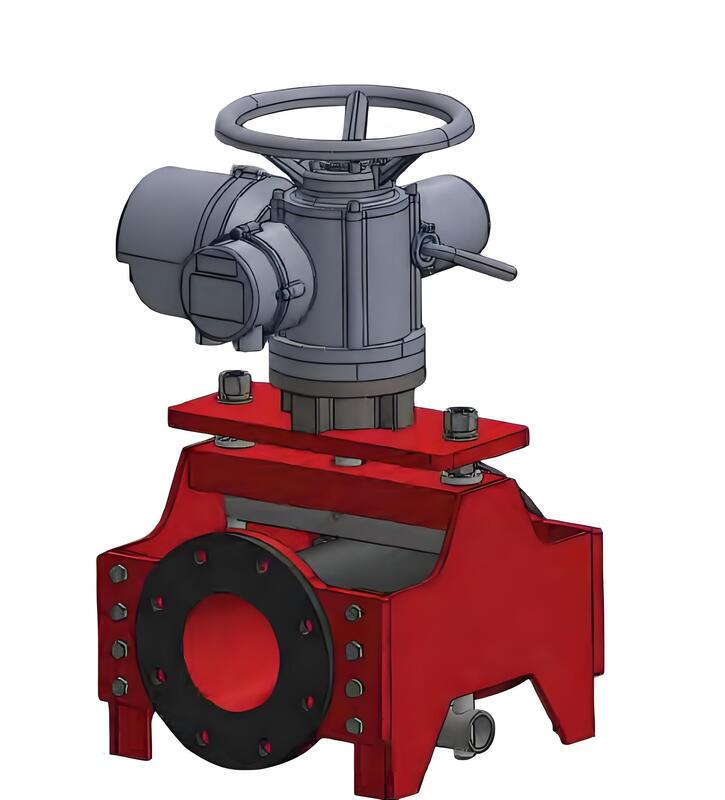

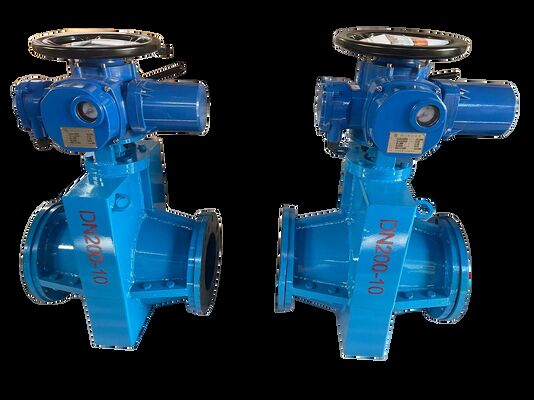

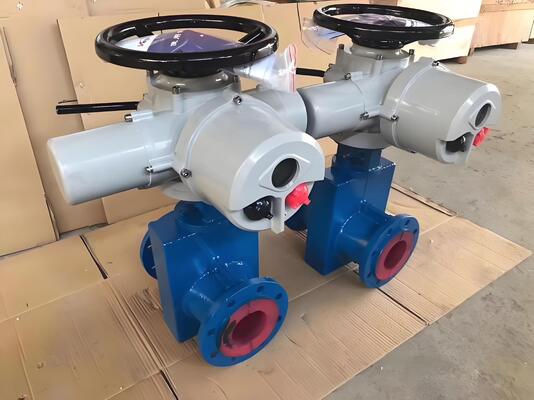

High-Performance Electric Actuated Pinch Valve Package Tailored for Anti-Clogging Slurry Pipeline Control
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | VESON |
| Certification: | ISO 9001:2015 SGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | USD 500-3200 / Piece |
| Packaging Details: | VESON branded plywood case with shock-proof foam insert, export-grade packaging |
| Delivery Time: | 7-10 working days for stock, 25-35 days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 1500 Pieces per Month |
|
Detail Information |
|||
| Valve Type: | Electric Pinch Valve (Full Bore) | Size Range: | DN25 To DN500 (1" To 20") |
|---|---|---|---|
| Pressure Rating: | PN10 / PN16 / Class 150 | Body Material: | Ductile Iron Epoxy Coated, SS304, SS316L |
| Sleeve Material: | Natural Rubber, EPDM, NBR, Viton, Hypalon | Actuator Type: | Smart Electric Multi-Turn With IoT Connectivity |
| Control Protocol: | 4-20mA, Modbus RTU, Modbus TCP, Profibus DP | Power Supply: | 24V DC, 110-240V AC, 380V AC 3-Phase |
| Operating Temperature: | -40°C To +120°C | End Connection: | Flanged ANSI B16.5 / DIN PN16 |
| Highlight: | High-Performance Electric Actuated Pinch Valve,Multi Turn Electric Actuated Pinch Valve |
||
Product Description
High-Performance Electric Actuated Pinch Valve Package for Anti-Clogging Slurry Pipeline Control
The VESON High-Performance Electric Pinch Valve Package represents the pinnacle of slurry pipeline control technology. Featuring a smart electric actuator with IoT connectivity, onboard data logging, and predictive maintenance algorithms, this package delivers unmatched reliability and actionable insights for modern mining and mineral processing operations.
Smart Actuator Intelligence
- IoT Connectivity: Integrated Modbus TCP and optional Profibus DP for seamless integration with plant-wide SCADA and Industry 4.0 systems
- Predictive Maintenance: Onboard algorithms track sleeve wear patterns and cycle counts, generating alerts before unexpected failures occur
- Data Logging: Internal memory stores 5,000+ events including torque profiles, stroke times, and alarm history for root cause analysis
- Remote Monitoring: Optional 4G cellular module enables off-site monitoring of valve health and performance via secure cloud dashboard
- Torque Profiling: Real-time torque trending detects sleeve degradation, solids buildup, and upstream process anomalies
Key Features
- Anti-Clogging Design: Full-bore straight-through flow path with self-cleaning pinch action eliminates bridging and clogging
- Quick-Change Sleeve System: Patented sleeve retention design allows complete sleeve replacement in under 10 minutes by a single technician
- Multi-Protocol Support: Native support for 4-20mA, Modbus RTU/TCP, and Profibus DP without external converters
- Rugged Enclosure: IP68 submersible-rated actuator enclosure for flooded pit and outdoor installations
- Energy Efficient: Low-power standby mode reduces energy consumption by 70% during hold position
Technical Specifications
| Parameter | Specification |
| Valve Type | Electric Pinch Valve (Full Bore) |
| Size Range | DN25 to DN500 (1" to 20") |
| Pressure Rating | PN10 / PN16 / Class 150 |
| Body Material | Ductile Iron Epoxy Coated, SS304, SS316L |
| Sleeve Material | Natural Rubber, EPDM, NBR, Viton, Hypalon |
| Actuator Type | Smart Electric Multi-Turn with IoT |
| Control Protocols | 4-20mA, Modbus RTU/TCP, Profibus DP |
| Power Supply | 24V DC, 110-240V AC, 380V AC 3-Phase |
| Data Logging | 5,000+ Events Internal Memory |
| Enclosure Rating | IP68 Submersible |
| Operating Temperature | -40°C to +120°C |
| End Connection | Flanged (ANSI B16.5 / DIN PN16) |
| Certification | ISO 9001:2015, SGS |
Target Applications
- Mining slurry pipelines with remote monitoring requirements
- Mineral processing plants with Industry 4.0 integration
- Long-distance tailings transport pipelines
- Critical process lines requiring predictive maintenance
- Unmanned pump stations with cellular telemetry
Complete package includes pre-configured smart actuator, factory calibration certificate, IoT setup guide, and 12-month cloud monitoring subscription. Contact us for a live demo of the remote monitoring dashboard.
Want to Know more details about this product
