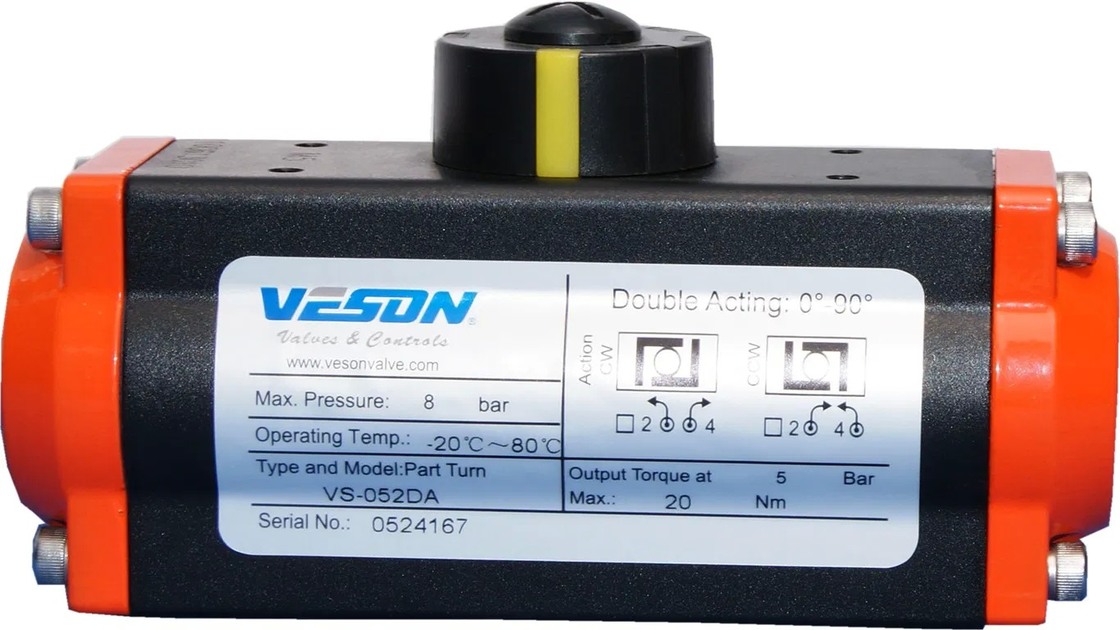

ISO5211 & DIN3337 Standard VS-052~VS-400 Model 50000PC/Y Aluminum Pneumatic Valve Actuator
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Model NO.: | VS-052~VS-400 | Power: | Pneumatic |
|---|---|---|---|
| Pressure Direction: | Double-acting Cylinder | Pinion Material: | Hardened Alloy Steel |
| Pinion Coating: | Nickel Plated (over 15um) | Actuator Body Material: | Aluminum Extrusion |
| Actuator Coating: | Hard Anodized (over 30um) | End Cap Material: | Die Casting Aluminum |
| End Cap Coating: | Epoxy Coated (over 80um) | Piston Material: | Die Casting Aluminum |
| Piston Coating: | Hard Anodized (over 30um) | Travel Adjustment: | ±5º In Both Positions |
| Spring Material: | High Tensile Steel | Spring Coating: | Epoxy Coated |
| Bearings Material: | Highly Durable Compound | ||
| Highlight: | ISO5211 & DIN3337 Pneumatic Actuator,VS-052~VS-400 Valve Actuator,50000PC/Y Air Actuator |
||
Product Description
A position indicator with Namur mounting is standard on all VESON pneumatic actuators for mounting accessories.
The hardened alloy steel pinion features precision grinding and Nickel plating (over 15μm) to reduce friction and provide maximum wear resistance. Fully compliant with ISO5211 & DIN3337 standards. Custom dimensions available with optional stainless steel and aluminum alloy materials.
Hard anodized aluminum extrusion (over 30μm) protects against wear and corrosion while minimizing piston friction. Optional Epoxy Coated and PTFE Coated finishes available.
Epoxy coated (over 80μm) die-cast aluminum end caps provide maximum resistance against potentially corrosive elements. PTFE Coated treatment available as an option.
Precisely balanced, hard anodized (over 30μm) die-cast aluminum piston with high-quality guides. The twin rack and pinion design ensures constant torque output across all actuators.
Standard adjustment of ±5° in both open and closed positions via easily accessible external adjustment bolts.
High tensile steel springs with epoxy coating for corrosion resistance and extended service life. Pre-loaded springs allow for safe and rapid disassembly.
Highly durable compound material provides high thrust stability with minimal friction and long operational life.
