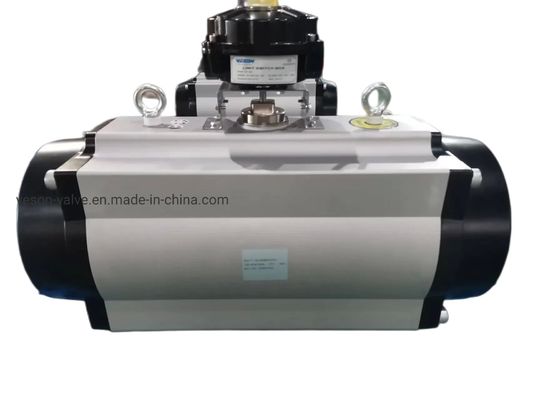

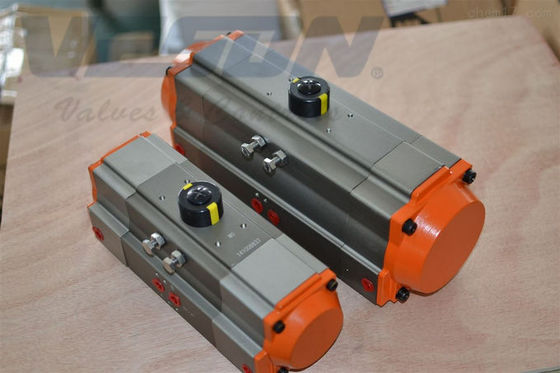

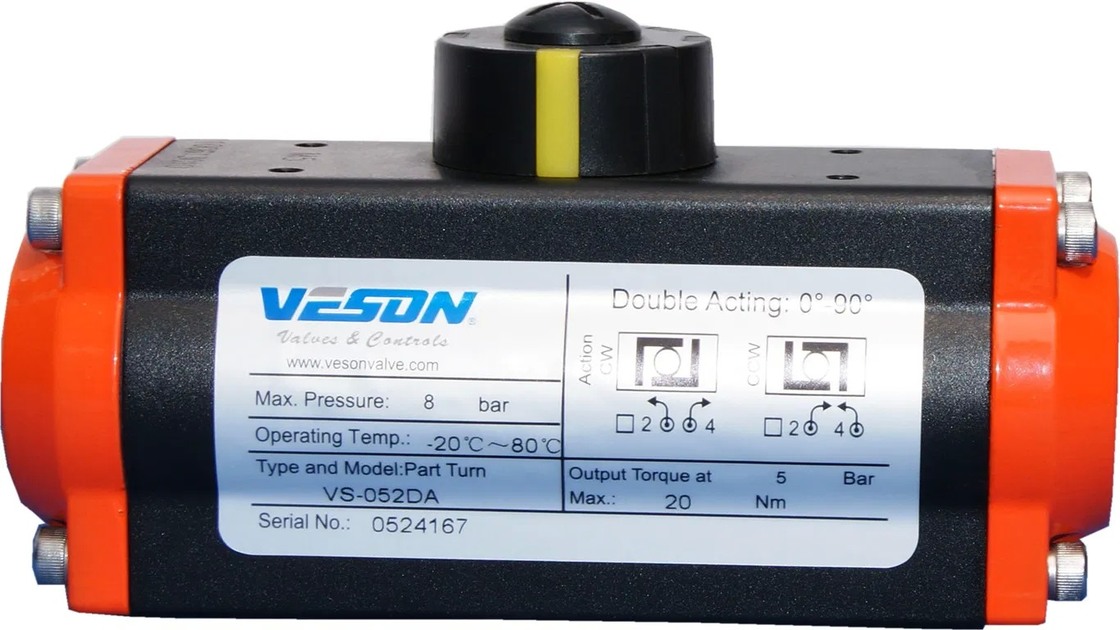

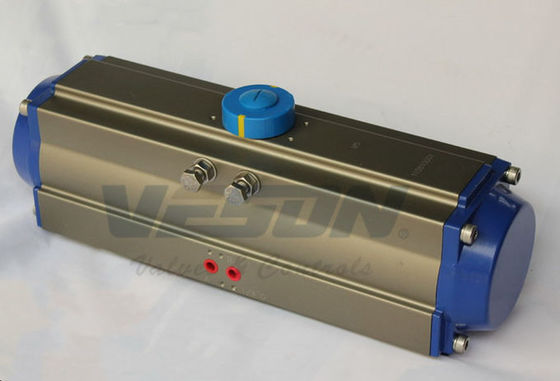

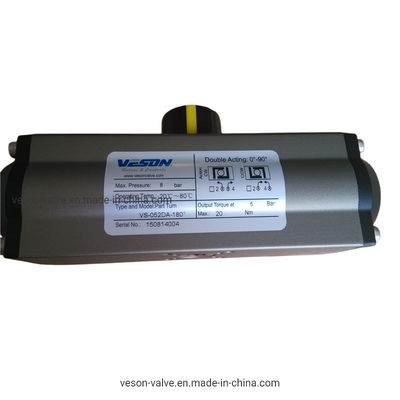

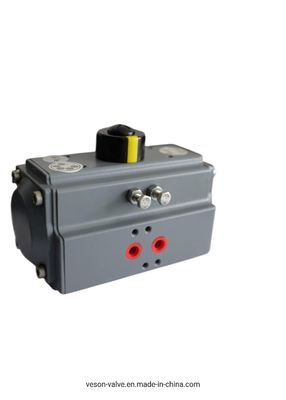

ISO5211 & DIN3337 Standard CE & SGS Certified VS-052~VS-400 Model Pneumatic Actuator Valve Actuator
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Model NO.: | VS-052~VS-400 | Adjusted Form: | Onoff |
|---|---|---|---|
| Working Type: | Rotary | Pressure: | Medium Pressure |
| Work Temperature: | Normal Temperature | Acting Type: | Double Acting |
| Material: | Aluminum | Structure: | Rack And Pinion |
| Pinion Material: | Hardened Alloy Steel | Pinion Coating: | Nickel Plated (over 15um) |
| Actuator Body Coating: | Hard Anodized (over 30um) | End Cap Coating: | Epoxy Coated (over 80um) |
| Piston Coating: | Hard Anodized (over 30um) | Travel Adjustment: | ±5º |
| Spring Coating: | Epoxy Coated | ||
| Highlight: | ISO5211 & DIN3337 Standard Pneumatic Actuator,CE & SGS Certified Valve Actuator,VS-052~VS-400 Model Pneumatic Actuator |
||
Product Description
Valve Pneumatic Actuator Pneumatic Drive Actuated Solution
High-performance pneumatic actuator solution designed for industrial valve applications, featuring durable construction and precision engineering.
Key Features
- Position Indicator: Equipped with Namur mounting for accessory installation.
- Precision Pinion: Hardened alloy steel with nickel plating (over 15μm) for reduced friction and maximum wear resistance. Compliant with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel or aluminum alloy options.
- Durable Actuator Body: Hard-anodized aluminum extrusion (over 30μm) for corrosion protection and minimal piston friction. Optional epoxy or PTFE coatings available.
- Corrosion-Resistant End Caps: Epoxy-coated die-cast aluminum (over 80μm) with optional PTFE coating.
- Precision Piston: Hard-anodized die-cast aluminum (over 30μm) with high-quality guides and twin rack-and-pinion design for consistent torque output.
- Adjustable Travel: ±5° adjustment in both open and closed positions via external adjustment bolts.
- High-Performance Springs: Epoxy-coated high-tensile steel for corrosion resistance and extended service life. Designed for safe, rapid disassembly.
- Premium Bearings & Guides: Durable compound material for high thrust stability with minimal friction and long operational life.
