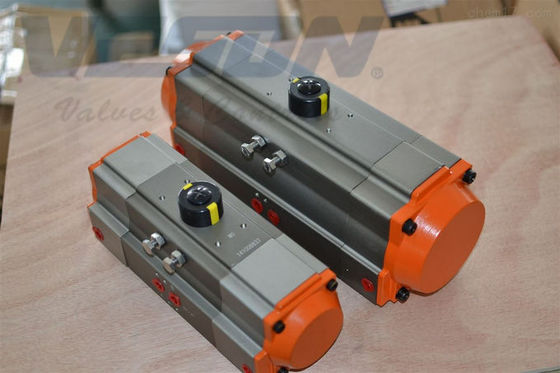

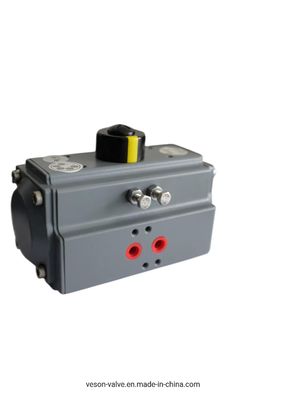

Pneumatic Actuator with Travel Adjustment ±5º Position Indicator and High Performance Springs for Valve Control
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Model NO.: | VS-052~VS-400 | Working Type: | Rotary |
|---|---|---|---|
| Pressure: | Medium Pressure | Work Temperature: | Normal Temperature |
| Material: | Aluminum | Pinion Material: | Hardened Alloy Steel |
| Pinion Coating: | Nickel Plated (over 15um) | Actuator Body Coating: | Hard Anodized (over 30um) |
| End Cap Coating: | Epoxy Coated (over 80um) | Piston Coating: | Hard Anodized (over 30um) |
| Travel Adjustment: | ±5º | Springs Material: | High Tensile Steel |
| Springs Coating: | Epoxy Coated | Bearings Material: | Highly Durable Compound |
| Production Capacity: | 50000PC / Y | ||
| Highlight: | Travel Adjustment ±5º Pneumatic Actuator,Position Indicator Pneumatic Air Actuator,High Performance Springs Rotary Actuator |
||
Product Description

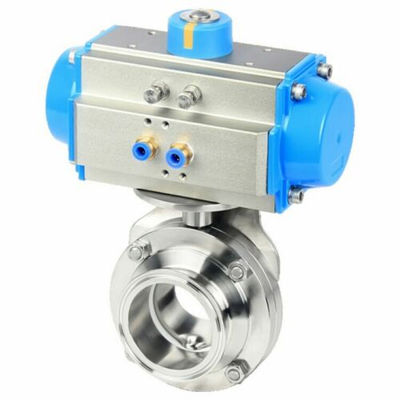

Pneumatic Actuator Cylinder Pneumatic Valve Control
Product Features
- Indicator: Position indicator with Namur mounting for accessory attachment
- Pinion: Hardened alloy steel pinion, precision ground and nickel plated (over 15μm) for reduced friction and maximum wear resistance. Complies with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel and aluminum alloy options.
- Actuator Body: Hard anodized aluminum extrusion (over 30μm) for wear and corrosion protection with minimal piston friction. Optional Epoxy Coated and PTFE Coated treatments available.
- End Cap: Epoxy coated (over 80μm) die casting aluminum for maximum corrosion resistance. PTFE Coated options available.
- Piston: Precisely balanced, hard anodized (over 30μm) die casting aluminum with high-quality guides. Twin rack and pinion design ensures constant torque output.
- Travel Adjustment: Standard ±5° adjustment in both open and closed positions via easily accessible external bolts.
- High Performance Springs: Epoxy coated high tensile steel for corrosion resistance and extended service life. Pre-loaded springs allow safe, rapid disassembly.
- Bearings & Guides: Highly durable compound material provides stable thrust with minimal friction and long service life.
