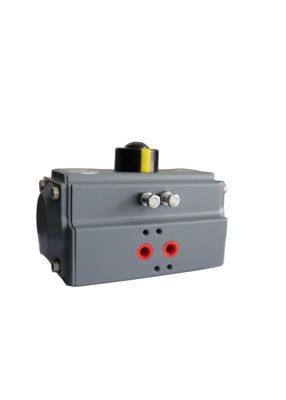

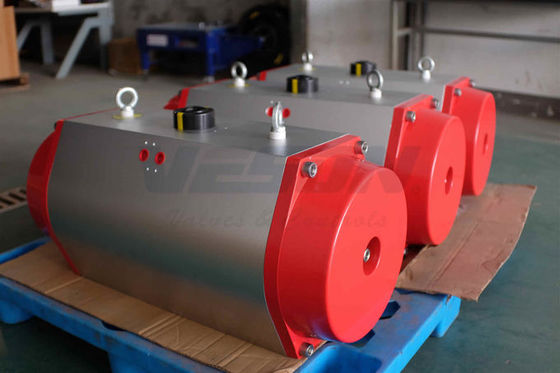

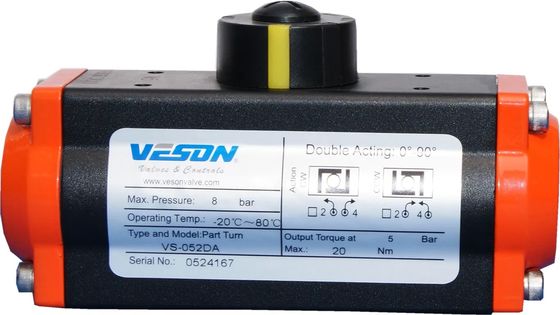

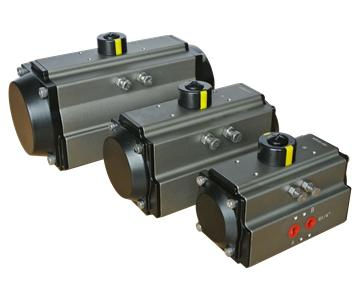

Epoxy Coated Pneumatic Actuator with ISO Pad 5211 and Travel Adjustment ±5º for Ball Valves with Limit Switch Boxes
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Model NO.: | VS-052~VS-400 | Power: | Pneumatic |
|---|---|---|---|
| Pressure Direction: | Double-acting Cylinder | Driving: | Pneumatic Actuator |
| Pinion Material: | Hardened Alloy Steel | Pinion Coating: | Nickel Plated (over 15um) |
| Actuator Body: | Aluminum Extrusion | Body Coating: | Hard Anodized (over 30um) |
| End Cap: | Die Casting Aluminum | End Cap Coating: | Epoxy Coated (over 80um) |
| Piston Material: | Die Casting Aluminum | Piston Coating: | Hard Anodized (over 30um) |
| Travel Adjustment: | ±5º | Springs Material: | High Tensile Steel |
| Springs Coating: | Epoxy Coated | ||
| Highlight: | ISO Pad 5211 Pneumatic Actuator,Travel Adjustment ±5º Valve Actuator,Limit Switch Boxes Pneumatic Air Actuator |
||
Product Description
Epoxy Coated Pneumatic Actuator with ISO Pad 5211
Premium Features and Specifications
Position Indicator
- Namur mounting position indicator included on all VESON pneumatic actuators
Precision Pinion
- Hardened alloy steel construction with precision grinding
- Nickel plated (over 15μm) for reduced friction and maximum wear resistance
- Fully compliant with ISO5211 & DIN3337 standards
- Custom dimensions available with stainless steel and aluminum alloy options
Durable Actuator Body
- Hard anodized aluminum extrusion (over 30μm) for wear and corrosion protection
- Minimized piston friction
- Optional Epoxy Coated and PTFE Coated treatments available
Corrosion-Resistant End Caps
- Epoxy coated (over 80μm) die casting aluminum construction
- Maximum resistance against corrosive elements
- Optional PTFE Coated treatment available
Precision Piston System
- Hard anodized (over 30μm) die casting aluminum piston
- Precisely balanced with high-quality guides
- Twin rack and pinion design ensures constant torque output
Adjustable Travel
- Standard adjustment of ±5° in both open and closed positions
- Easy access via external adjustment bolts
High Performance Springs
- High tensile steel construction with epoxy coating for corrosion resistance
- Extended service life
- Pre-loaded design allows for safe and rapid disassembly
Durable Bearings & Guides
- Highly durable compound material construction
- Provides high thrust stability with minimal friction
- Extended operational lifespan
