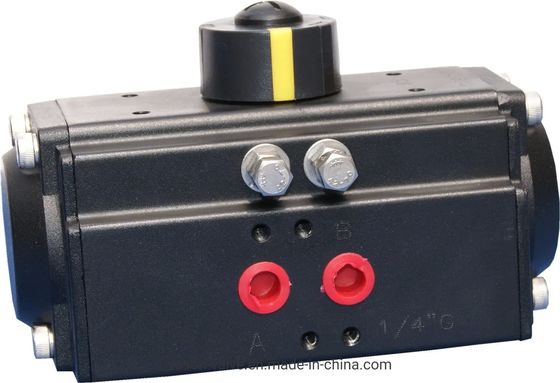

Single Acting Pneumatic Actuator with Travel Adjustment ±5º High Performance Springs and Precision Ground Pinion
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Model NO.: | VS-052~VS-400 | Power: | Pneumatic |
|---|---|---|---|
| Pressure Direction: | Double-acting Cylinder | Pinion Material: | Hardened Alloy Steel |
| Pinion Coating: | Nickel Plated (over 15um) | Actuator Body Material: | Aluminum Extrusion |
| Actuator Body Coating: | Hard Anodized (over 30um) | End Cap Material: | Die Casting Aluminum |
| End Cap Coating: | Epoxy Coated (over 80um) | Piston Material: | Die Casting Aluminum |
| Piston Coating: | Hard Anodized (over 30um) | Travel Adjustment: | ±5º In Open/closed Positions |
| Spring Material: | High Tensile Steel | Spring Coating: | Epoxy Coated |
| Bearings Material: | Highly Durable Compound | ||
| Highlight: | Travel Adjustment ±5º Pneumatic Actuator,High Performance Springs Pneumatic Air Actuator,Precision Ground Pinion Pneumatic Rotary Actuator |
||
Product Description
Single Acting Pneumatic Actuator
Key Features
- Position Indicator: Standard Namur mounting for accessory attachment on all VESON pneumatic actuators
- Precision Pinion: Hardened alloy steel with nickel plating (over 15μm) for reduced friction and maximum wear resistance. Complies with ISO5211 & DIN3337 standards. Custom dimensions and material options (stainless steel, aluminum alloy) available
- Durable Actuator Body: Hard-anodized aluminum extrusion (over 30μm) for corrosion protection and minimal piston friction. Optional epoxy or PTFE coatings available
- Corrosion-Resistant End Caps: Epoxy-coated (over 80μm) die-cast aluminum with optional PTFE treatment
- Precision Piston: Hard-anodized (over 30μm) die-cast aluminum with high-quality guides. Twin rack and pinion design ensures consistent torque output
- Adjustable Travel: ±5° adjustment in both open and closed positions via external adjustment bolts
- High-Performance Springs: Epoxy-coated high tensile steel for corrosion resistance and extended service life. Pre-loaded design allows safe, rapid disassembly
- Premium Bearings & Guides: High-durability compound material provides stable thrust with minimal friction for long operational life

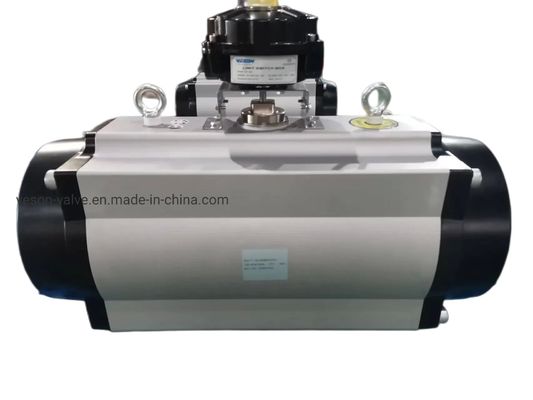

Product Images
