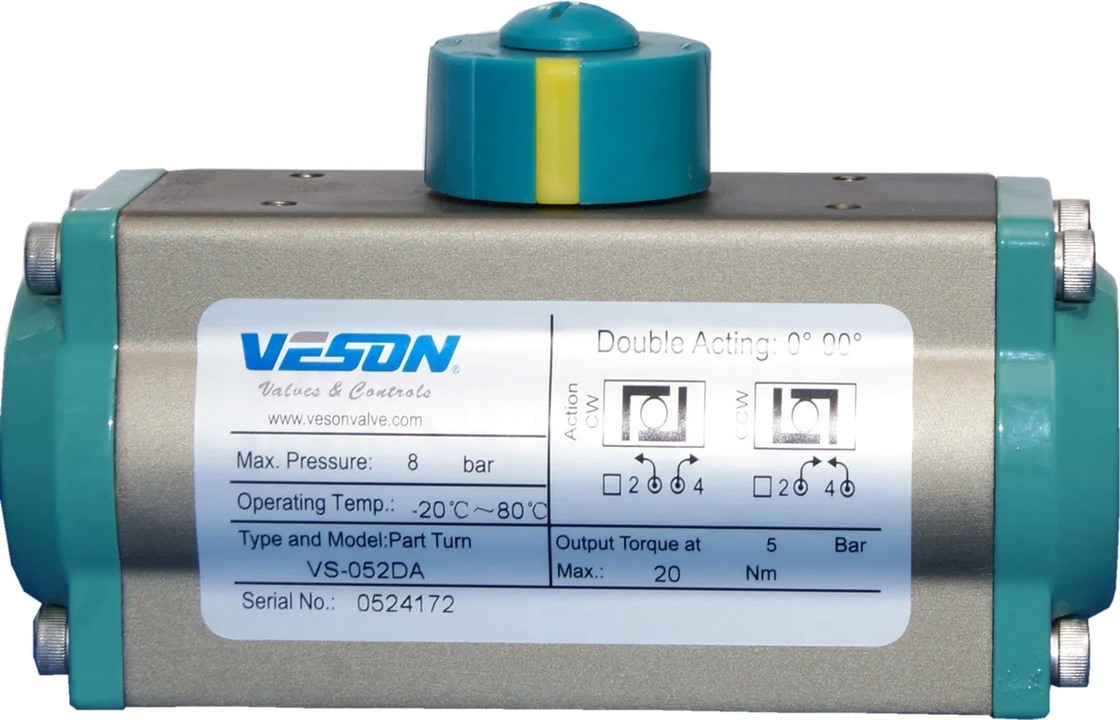

VESON Brand ISO5211 & DIN3337 Standard Pneumatic Actuator with Epoxy Coated End Cap and High Performance Springs
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Model NO.: | VS-052~VS-400 | Power: | Pneumatic |
|---|---|---|---|
| Pressure Direction: | Double-acting Cylinder | Pinion Material: | Hardened Alloy Steel |
| Pinion Plating: | Nickel Plated (over 15um) | Actuator Body Material: | Aluminum Extrusion |
| Actuator Body Treatment: | Hard Anodized (over 30um) | End Cap Material: | Die Casting Aluminum |
| End Cap Treatment: | Epoxy Coated (over 80um) | Piston Material: | Die Casting Aluminum |
| Piston Treatment: | Hard Anodized (over 30um) | Travel Adjustment: | ±5º |
| Spring Material: | High Tensile Steel | Spring Coating: | Epoxy Coated |
| Bearings Material: | Highly Durable Compound | ||
| Highlight: | ISO5211 & DIN3337 Standard Pneumatic Actuator,Epoxy Coated End Cap Air Actuator,High Performance Springs Pneumatic Air Actuator |
||
Product Description
Air Torque Type Pneumatic Actuator
Position Indicator
A position indicator with Namur mounting is standard on all VESON pneumatic actuators for mounting accessories.
Pinion
- Hardened alloy steel pinion precision ground and nickel plated (over 15μm)
- Reduces friction and provides maximum wear resistance
- Full conformance with ISO5211 & DIN3337 standards
- Customizable dimensions available
- Optional materials: stainless steel and aluminum alloy
Actuator Body
- Hard anodized aluminum extrusion (over 30μm)
- Protects against wear and corrosion while minimizing piston friction
- Optional treatments: Epoxy Coated and PTFE Coated
End Cap
- Epoxy coated die casting aluminum (over 80μm)
- Provides maximum resistance against potentially corrosive elements
- Optional treatments: PTFE Coated
Piston
- Precisely balanced and hard anodized die casting aluminum (over 30μm)
- Fitted with high-quality guides
- Twin rack and pinion design ensures constant torque output
Travel Adjustment
Standard adjustment of ±5° in both open and closed positions through easily accessible external adjustment bolts.
High Performance Springs
- High tensile steel springs with epoxy coating for corrosion resistance
- Extended service life
- Pre-loaded springs can be safely and rapidly disassembled
Bearings & Guides
Highly durable compound material provides high thrust stability with minimum friction and long service life.
