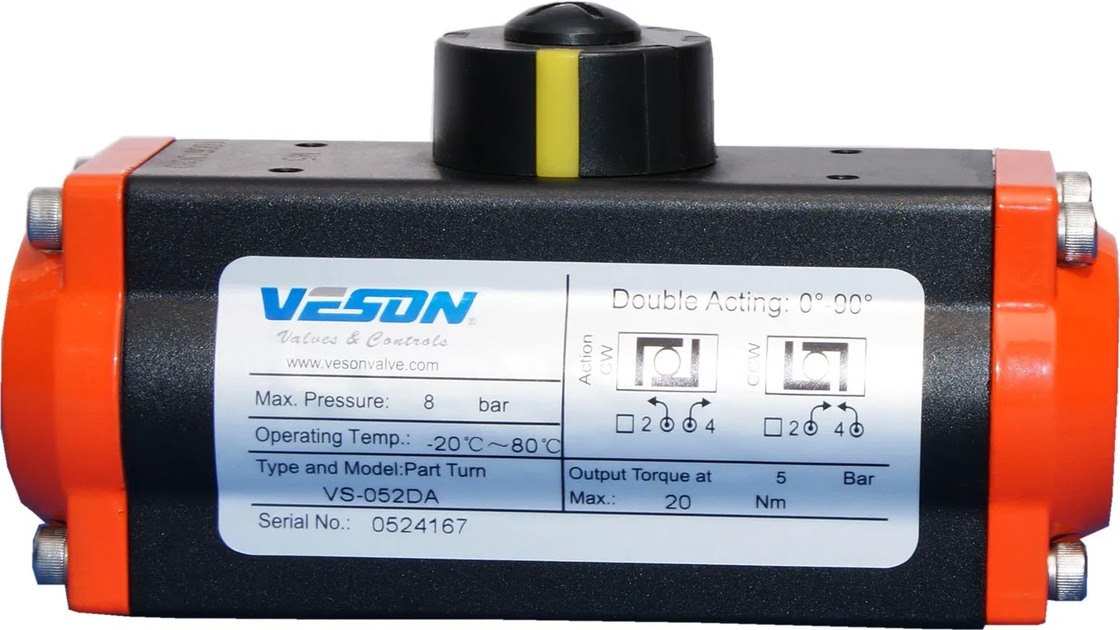

Pneumatic Air Actuator with ISO5211 & DIN3337 Standard CE & SGS Certified Hard Anodized Aluminum Valve Actuator
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Model NO.: | VS-052~VS-400 | Power: | Pneumatic |
|---|---|---|---|
| Pressure Direction: | Double-acting Cylinder | Pinion Material: | Hardened Alloy Steel |
| Pinion Coating: | Nickel Plated (over 15um) | Actuator Body Material: | Aluminum Extrusion |
| Actuator Body Coating: | Hard Anodized (over 30um) | End Cap Material: | Die Casting Aluminum |
| End Cap Coating: | Epoxy Coated (over 80um) | Piston Material: | Die Casting Aluminum |
| Piston Coating: | Hard Anodized (over 30um) | Travel Adjustment: | ±5º In Open/closed Positions |
| Spring Material: | High Tensile Steel | Spring Coating: | Epoxy Coated |
| Bearings Material: | Highly Durable Compound | ||
| Highlight: | ISO5211 & DIN3337 Standard Pneumatic Air Actuator,CE & SGS Certified Valve Actuator,Hard Anodized Aluminum Air Torque Actuator |
||
Product Description
Air Torque Type Valve Actuator
Position Indicator
All VESON pneumatic actuators feature a position indicator with Namur mounting for accessory attachment.
Pinion
Precision-ground hardened alloy steel pinion with Nickel plating (over 15μm) ensures minimal friction and maximum wear resistance.
Standards: Fully compliant with ISO5211 & DIN3337
Options: Available in stainless steel and aluminum alloy with customizable dimensions
Actuator Body
Hard-anodized aluminum extrusion (over 30μm) provides superior wear and corrosion protection while minimizing piston friction.
Options: Epoxy Coated and PTFE Coated variants available
End Cap
Epoxy coated die-cast aluminum end caps (over 80μm) offer maximum resistance against corrosive elements.
Options: PTFE Coated treatment available
Piston
Precisely balanced, hard-anodized die-cast aluminum piston (over 30μm) with high-quality guides and twin rack-and-pinion design ensures constant torque output.
Travel Adjustment
Standard ±5° adjustment in both open and closed positions via easily accessible external adjustment bolts.
High Performance Springs
Epoxy-coated high tensile steel springs provide corrosion resistance and extended service life.
Pre-loaded springs allow for safe and rapid disassembly.
Bearings & Guides
Highly durable compound material ensures high thrust stability with minimal friction for long operational life.
