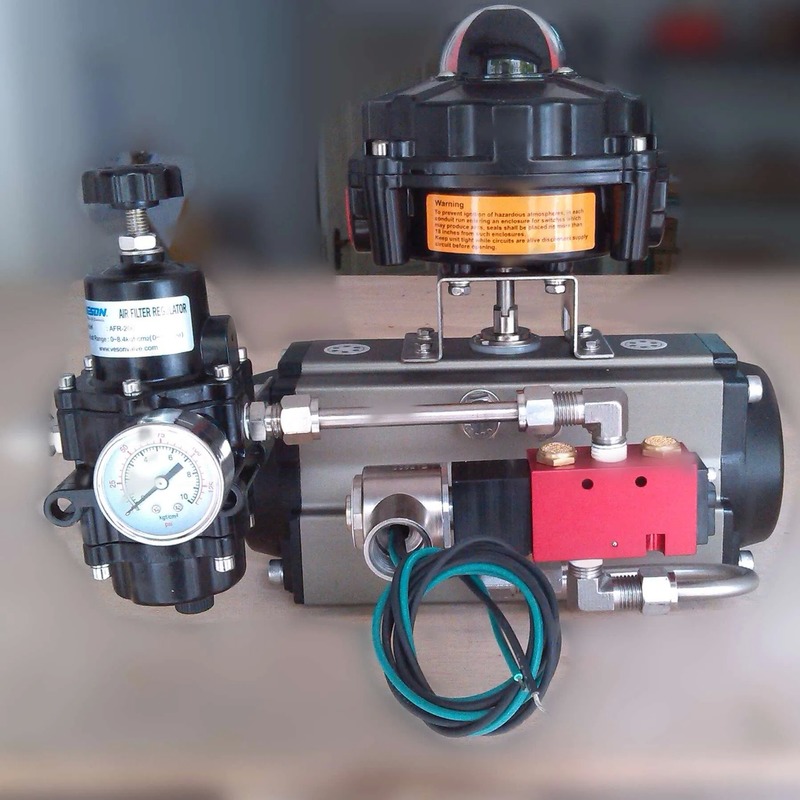

Explosion-Proof Pneumatic Ball Valve with IP66 & IP68 Weatherproof and Clamp Connection
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Connection Form: | Clamp | Channel: | Straight Through Type |
|---|---|---|---|
| Structure: | Floating Ball Valve | Type: | Floating Ball Valve |
| Material: | Aluminum | Port Configuration: | 4-way, 5 Port |
| Operation Type: | Solenoid, Pilot, Manual | Mounting Options: | Side Porting, Rack Mounting, Manifold Mounted |
| Actuator Type: | Pneumatic | Actuator Cycle Life: | 1 Million Cycles |
| Actuator Design: | Rack Pinion | Weatherproof Rating: | IP66 & IP68 |
| Actuator Material: | Anodized Aluminum | Pilot Air: | Dry Or Lubricated |
| Mounting Standard: | Namur & ISO | ||
| Highlight: | IP66 & IP68 Weatherproof Pneumatic Ball Valve,Explosion-Proof Air Operated Ball Valve,Clamp Connection Pneumatic Actuator Ball Valve |
||
Product Description
Explosion-Proof Solenoid Valve with Pneumatic Actuator Veson Brand
Versa's Aluminum valves are multi-purpose 4-way, 5 port 2 position or 5 port 3 position, solenoid, pilot or manually operated pneumatic valves. C Series valves are available for side porting, rack mounting or manifold mounted with a full complement of manifold options.
Air actuated soft seated butterfly valve for on-off control of water and other media compatible with the materials of construction. Spring return actuators use an air pressure signal (80-120 PSI) to open and springs to close the valve. The valve will fail closed upon loss of air signal.
Butterfly Valve Standard Features
- Rugged epoxy coated ductile iron body with stainless steel disc for maximum corrosion resistance
- Extended life span of valve and seals with unique wave line seat and special disc shape
- Reduced torque from wave seal and disc design reduces size of actuator, lowering the cost
- Increased flow capacity with unique profile disc and two piece shaft design
- Valves direct mount to actuator using standard ISO5211 international standards
Pneumatic Actuator Standard Features
- Extended cycle life (1 million cycles)
- Rack pinion design
- Highly visible valve position indicator
- Type IP66 & IP68 weatherproof
- Anodized aluminum body with epoxy-polyester covers
- Dry or lubricated pilot air
- Namur & ISO mounting
Options
(see Accessories tab)
