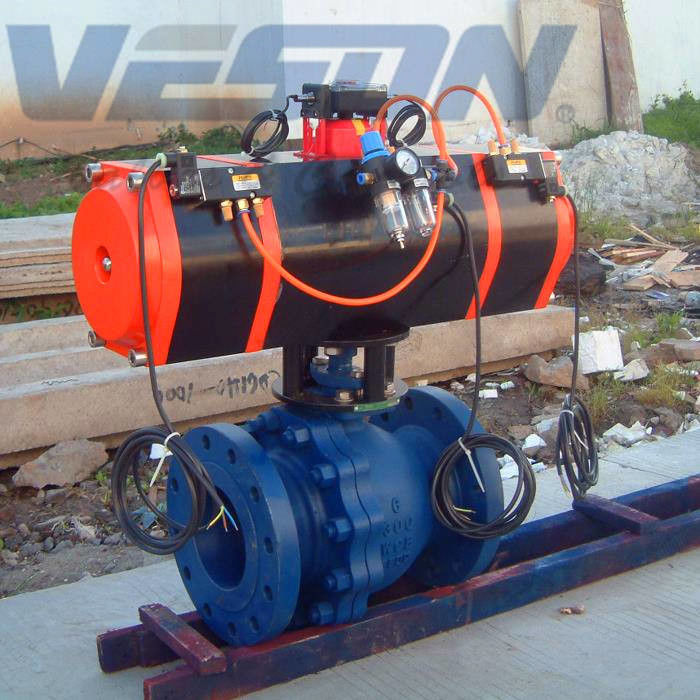

Fast Acting Explosion Proof Valve Actuator , Air Torque Pneumatic Actuator DIN Standard

Basic Information
Place of Origin: China
Brand Name: Veson/OEM
Certification: ISO/CE/SIL3
Model Number: VS-092DA-3P
Minimum Order Quantity: 1 Ea
Price: FOB Shanghai
Packaging Details: Carton/Plywood case
Delivery Time: One week
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/Month
Detail Information
Material: Aluminum Alloy Type: Pneumatic Actuator
Function: Quarter Turn Actuator Valve: Pneumatic Piston Actuator
3 Position: 3-position (90° Rotation) 3 Position Pneumatic Actuators Name: Explosion Proof Valve Actuator
High Light:

single acting pneumatic actuator


air piston actuator

Product Description

3-position pneumatic actuator ball valve


    pneumatic actuator


  • Through research development and design XM series pneumatic actuators incorporate the latest technology materials and innovative idea. The product proudly boasts the following features.
  • Full conformance to the latest specifications: ISO5211,DIN3337 and VDINDE-3854,NAMUR.
  • The extruding high intensity aluminum body possesses a honed internal surface coated with hard anode oxygenation for long life. Low coefficient of friction and swift performance.

  • Excellent compact and modernized construction along with multi specifications makes the selection both economic and beneficial.

  • All acting surface adopt high quality bearing resulting in low friction, high cycle life, and no noise

  • The two independent external stroke adjustment bolts can easily and precisely adjust ±5°at both open and close directions.

  • Same outline actuators have the functional modes of double acting and single acting (Spring -Return). The Spring-Return has the normally-open and normally-close styles.

  • Multi function indicator with NAMUR is convenient for mounting accessories.

  • Pre-compressed load spring is convenient for safe mounting and tear down procedures.

  • Die-casting aluminum pistons and end caps have high intensity and light weight.

  • Different O-rings materials are available for high and low temperature.

  • Solenoid valves are easily mounted without any connecting plank.


Standard technical parameters

Design GB/T12237/1989

ASME B16.34


DIN 3357/1
ASME B16.34 API608
Pressure PN116-PN40 ASME B16.34 CLASS 150
ASME B16.34 CLASS 300
JISB2001 10K
JIS B2001 20K
Face to face GB/T12221 ASME B16.10 DIN 3202 JIS B2002
End Flange GB/T9113 JB/T79 ASME B16.5 DIN 2543-2545 JIS B2212
JIS B2214
GB/T13927 API 598 DIN 3230/3 JIS B2003
Fire-safe API 607 API 607 4 th1993 API 607 4 th1993 API 607 4 th1993

Ball valve
Ports: full port
Body style: three-piece
Size range: ½” - 12" (12mm - 300mm)
Temperature range: -50°f to 650°f (-46°c to 343°c)
Pressure ratings: ASME class 150,ASME class 300.(pn10 to pn40 covered)
End connections:
ASME B16.34 class 150,ASME B16.34 class 300
DIN PN16,PN25,PN40
JIS 10K,20K
Body materials: stainless steel(CF8,CF8M,CF3M), carbon steel (WCB)
Seat materials: PTFE,PEEK
Applications: process, tank farms, fueling, oil & gas
Control: Manual

Design features:
Built-in ISO 5211 Direct mounting pad easy automation
fire safe design approved
Anti-static devices for ball-stem-body
Blow-out proof stem
Pressure balance hole in ball slot
TA-LUFT design approved
Casting boss on body for draining

3-position Pneumatic Actuator
Two types of 3-position pneumatic actuators:0°-45°-90° type and 0°-90°-180° type
respectively. After the air comes into the cylinder from the air entrance”2”,the pistons' movements toward the ends would be limited by the auxiliary pistons mechanism. Thus the pistons would stay in the middle position The position of the mid position could be adjust to 20°,30°,50°, 75°and 95°,1 20°,1 30°,150°,1 75°etc by using the adjusting screws at each end of the surface.
