Automated 2-Way Pneumatic Ball Valve Package for Precise Batch Dosing Flow Control
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | VESON |
| Certification: | ISO 9001:2015 SGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | USD 120-850 / Piece |
| Packaging Details: | VESON branded plywood case with shock-proof foam insert, export-grade packaging |
| Delivery Time: | 3-5 working days for stock, 15-25 days for production |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 5000 Pieces per Month |
|
Detail Information |
|||
| Valve Type: | 2-Way Full Bore Ball Valve | Actuator Type: | Double-Acting Pneumatic Rack & Pinion |
|---|---|---|---|
| Size Range: | DN15 To DN200 (1/2" To 8") | Pressure Rating: | PN16 / PN40 / Class 150 / Class 300 |
| Body Material: | SS304, SS316, WCB Carbon Steel | Seat Material: | PTFE, RTFE, PEEK |
| Air Supply: | 4-8 Bar (60-120 Psi) | Operating Temperature: | -20°C To +180°C |
| End Connection: | Flanged ANSI B16.5, Threaded NPT/BSP | Shutoff Class: | Class VI Bubble-Tight |
| Highlight: | 2-Way Pneumatic Ball Valve,Automated 2-Way Pneumatic Ball Valve,Precise Pneumatic Ball Valve |
||
Product Description
Automated 2-Way Pneumatic Shutoff Ball Valve Package for Precise Batch Dosing
The VESON VSO-2W-DA Automated 2-Way Pneumatic Shutoff Ball Valve Package integrates a double-acting pneumatic rack-and-pinion actuator with a full-bore 2-way ball valve, engineered for precise batch dosing and automated flow shutoff in chemical processing, oil & gas terminal loading, and liquid batching applications.
Key Features
- Full-Bore 2-Way Ball Valve: Minimizes pressure drop and ensures unrestricted flow with precision-machined ball and seat
- Double-Acting Pneumatic Actuator: Delivers rapid shutoff response with configurable fail-safe position options
- Bubble-Tight Shutoff: Class VI leakage rating ensures zero leakage during batch metering cycles
- Integrated Automation: Namur solenoid valve and limit switch box ready for seamless PLC/DCS integration
- Stainless Steel Construction: SS304/SS316 body with PTFE seats for wide chemical compatibility
- Visual Position Indicator: Top-mounted dome indicator for quick status verification on the plant floor
Technical Specifications
| Parameter | Specification |
| Valve Type | 2-Way Full Bore Ball Valve |
| Actuator Type | Double-Acting Pneumatic Rack & Pinion |
| Size Range | DN15 to DN200 (1/2" to 8") |
| Pressure Rating | PN16 / PN40 / Class 150 / Class 300 |
| Body Material | SS304, SS316, WCB Carbon Steel |
| Seat Material | PTFE, RTFE, PEEK |
| Air Supply | 4-8 bar (60-120 psi) |
| Operating Temperature | -20°C to +180°C |
| End Connection | Flanged (ANSI B16.5), Threaded (NPT/BSP) |
| Leakage Class | Class VI (Bubble-Tight) |
| Certification | ISO 9001:2015, CE, SGS |
Target Applications
- Chemical batching and dosing systems
- Oil & gas terminal truck and drum loading
- Food & beverage ingredient metering
- Pharmaceutical process automation
- Water treatment chemical injection

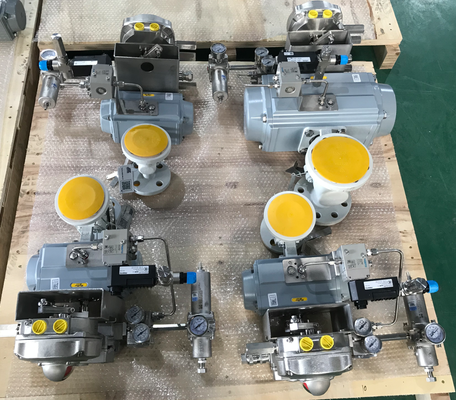

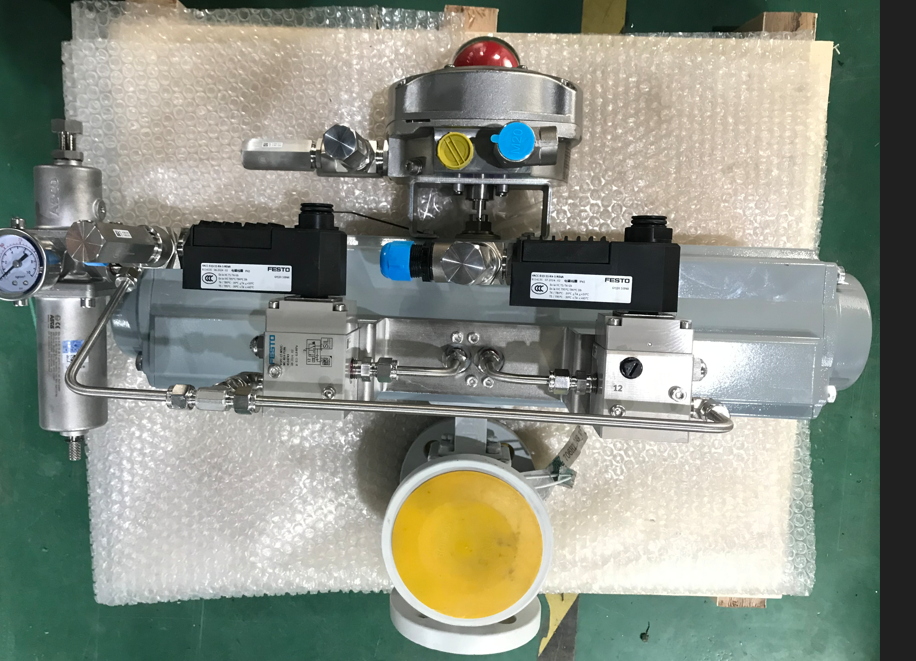

Package Includes
- 1 x Full-Bore 2-Way Ball Valve
- 1 x Double-Acting Pneumatic Actuator
- 1 x Namur 5/2 Solenoid Valve
- 1 x Limit Switch Box (Mechanical or Proximity)
- 1 x Air Filter Regulator
- Factory Loop Test Report & Material Certificates
Factory Acceptance Test (FAT) with SS316 hard tubing and full loop simulation available upon request. Contact our engineering team for sizing and configuration support.
