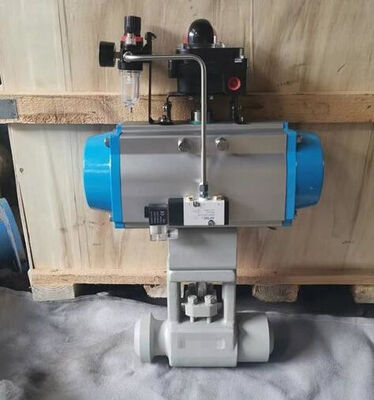

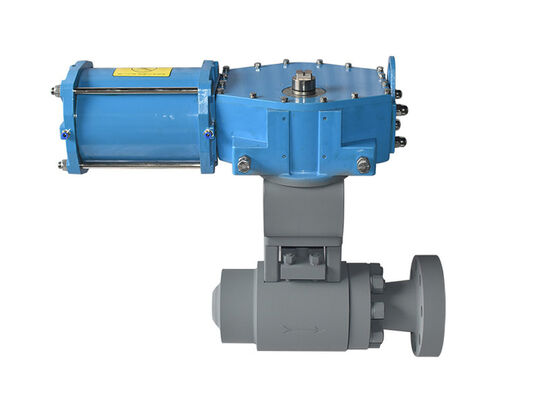

ANSI CLASS 150-900 Pneumatic Ball Valve with Fixed Ball Structure and Drain Function for High-Pressure-High-Temperature Applications

ANSI CLASS 150-900 Pneumatic Ball Valve with Fixed Ball Structure and Drain Function for High-Pressure-High-Temperature Applications

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity: 1
Get Best Price Contact Now

Detail Information
Model NO.: VS-052~VS-400 Connection Form: Welding
Driving Mode: Pneumatic Nominal Pressure: ANSI CLASS 150-900
Channel: Straight Through Type Structure: Fixed Ball Valve
Type: Fixed Ball Valve Function: Drain
Temperature: High Temperature Standard: 12 Months In Warranty
Application: Industrial Usage Transport Package: Plywood Case Package Or Carton Case Package
Specification: 1 Inch-12 Inch Trademark: VESON Or Cusomer"s
Origin: China HS Code: 84123900
Highlight:

ANSI CLASS 150-900 Pneumatic Ball Valve

,

Fixed Ball Valve Drain Function

,

HPHT Ball Valve with Drain

Product Description

Veson valve ltd 3 position pneumatic actuators provide an operation of 0°- 45°- 90°. The intermediate position is achieved by an external mechanical stop of movement on the 2 auxiliary pistons (for spring return actuators it may be only one auxiliary piston).



 This intermediate stop position is adjustable from 0° to 90°, for example 5°, 20°, 30° 50°, 75° etc. The intermediate position is easily achieved by adjusting the external nuts located outside the two end-caps. Both type, double acting and spring return, are available. Field of application: For dosing, for exact filling and for any kind of services where on 90° rotation an intermediate stop position is desired











ANSI CLASS 150-900 Pneumatic Ball Valve with Fixed Ball Structure and Drain Function for High-Pressure-High-Temperature Applications 0ANSI CLASS 150-900 Pneumatic Ball Valve with Fixed Ball Structure and Drain Function for High-Pressure-High-Temperature Applications 1





  • A182 F92 body material available on select models.
  • Lockout feature integrated into handle adaptor, which accommodates customer's lockout device in open and closed positions.
  • Handle can be repositioned to any location along its length. Can be applied as a T-handle or used full length.
  • Flow arrow forged into mounting flange visible above insulation.
  • Complies with ASME B16.34 requirements.
  • Socketweld ends per ASME B16.11.
  • Blank configuration for buttweld and customer end connections.
  • Actuator mounting per MSS SP-101.
