Pneumatic Rotary Actuator with 180 Degree Rotation Double Acting Hard Anodized Aluminum ISO5211 & DIN3337 Standard

Pneumatic Rotary Actuator with 180 Degree Rotation Double Acting Hard Anodized Aluminum ISO5211 & DIN3337 Standard

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity: 1
Get Best Price Contact Now

Detail Information
Model NO.: VS-063DA Power: Pneumatic
Standard: Standard Pressure Direction: Double-acting Cylinder
Double-Acting Cylinder Type: Common Cylinder Transport Package: Woodenbox
Specification: CE, SGS Trademark: VESON
Origin: Shanghai China HS Code: 84123900
Production Capacity: 50000PC / Y
Highlight:

180 Degree Rotation Pneumatic Rotary Actuator

,

Hard Anodized Aluminum Double Acting Actuator

,

ISO5211 & DIN3337 Standard Pneumatic Air Actuator

Product Description

  • Indicator
A position indicator with Namur mounting is standing on all VESON pneumatic actuator for mounting accessories.
  • Pinion
The hardened alloy steel pinion is precision ground and Nickel plated (over 15um) in order to reduce friction, provide maximum wear resistance. Full conformance with the newest standards of ISO5211 & DIN3337. The dimension can be customized and as options, stainless steel and aluminum alloy are also available.

  • Actuator Body
The aluminum extrusion is hard anodized (over 30um) to protect against wear and corrosion while reducing piston friction to the minimum. Other options as Epoxy Coated and PTFE Coated are available.

  • End Cap
Epoxy coated (over 80um) die casting aluminum end caps provide maximum resistant potentially corrosive elements. Other treatments such as PTFE Coated are available.

  • Piston
The precisely balanced and hard anodized treatment (over 30um) die casting aluminum piston are fitted with high quality and guides. The twin rack and pinion design creates a constant torque output on all actuators.

  • Travel Adjustment
The standard adjustment is ±5ºin both the open and closed positions through easily accessible external adjustment bolts.
  • High Performance Springs
The high tensile steel springs are coated with Epoxy coated for corrosion resistance and longer service. The pre-loaded springs can be safely & rapidly disassembled.

  • Bearings & Guides
The highly durable compound material provides high trust stability with minimum friction and long life.

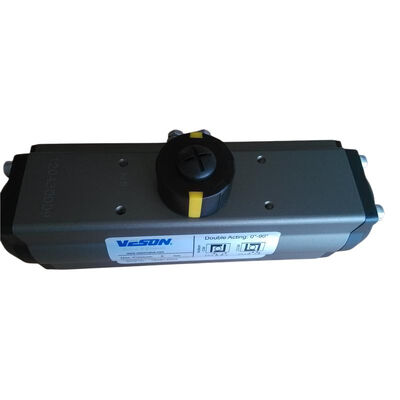

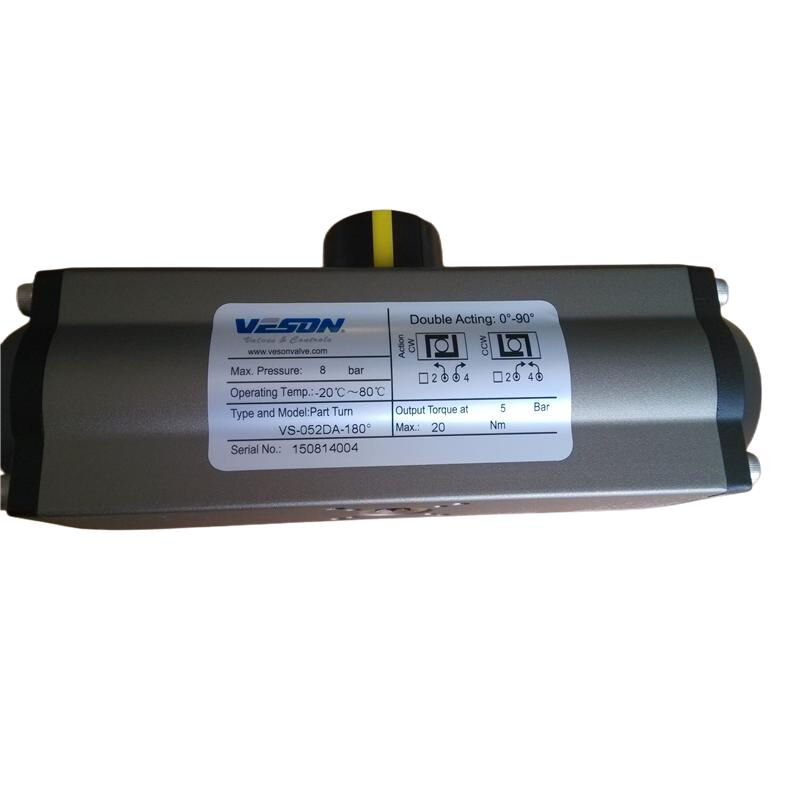

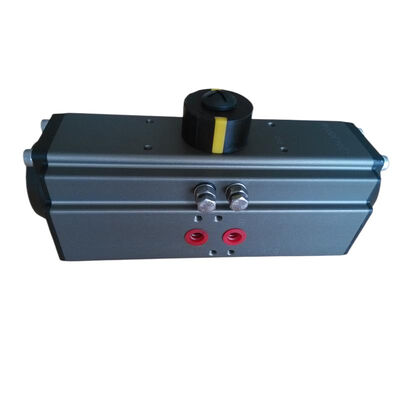

Pneumatic Rotary Actuator with 180 Degree Rotation Double Acting Hard Anodized Aluminum ISO5211 & DIN3337 Standard 0Pneumatic Rotary Actuator with 180 Degree Rotation Double Acting Hard Anodized Aluminum ISO5211 & DIN3337 Standard 1Pneumatic Rotary Actuator with 180 Degree Rotation Double Acting Hard Anodized Aluminum ISO5211 & DIN3337 Standard 2
