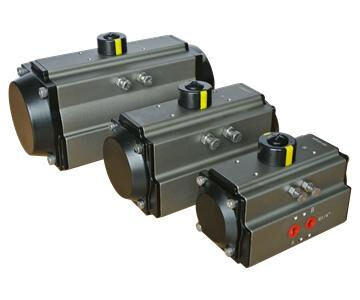

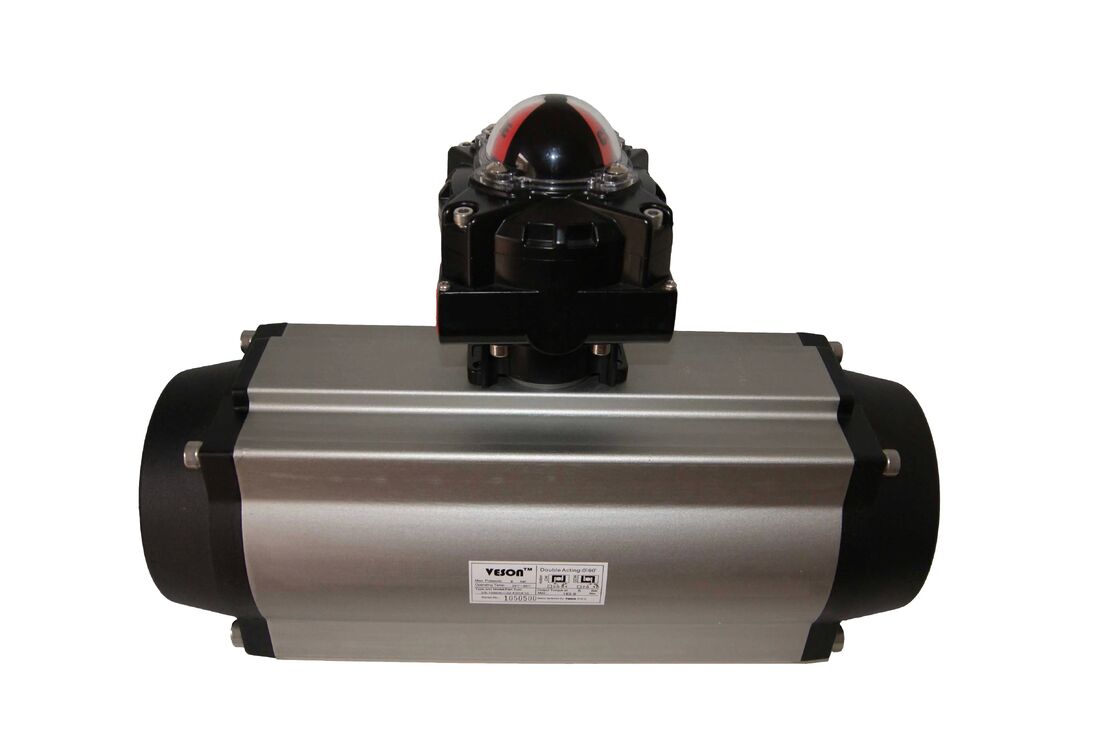

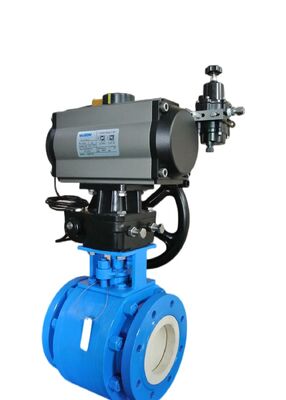

Hard Anodized Aluminum Rack and Pinion Pneumatic Actuator with 795NM Output Torque and ISO5211/DIN3337 Standard
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Model NO.: | VS-160 | Power: | Pneumatic |
|---|---|---|---|
| Standard: | Standard | Pressure Direction: | Double-acting Cylinder |
| Double-Acting Cylinder Type: | Common Cylinder | Special Cylinder Type: | Number Of Cylinders |
| Combination Cylinder Type: | Pressurized Cylinder | Fuction: | Air Actuator For Valves |
| Model: | Double Acting Or Spring Return Type | Transport Package: | Plywood Case Package Or Carton Case Package |
| Specification: | VS-32-VS-400 | Trademark: | VESON Or Cusomer"s |
| Origin: | China | HS Code: | 8481804090 |
| Production Capacity: | 50000PC / Y | ||
| Highlight: | Hard Anodized Aluminum Pneumatic Actuator,ISO5211/DIN3337 Standard Rack and Pinion Actuator,795NM Output Torque Air Actuator |
||
Product Description
VS-160 (rack& pinion) have the following features.
> The output torque: Double: 795NM; Single: 140~334Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
> The output torque: Double: 795NM; Single: 140~334Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
