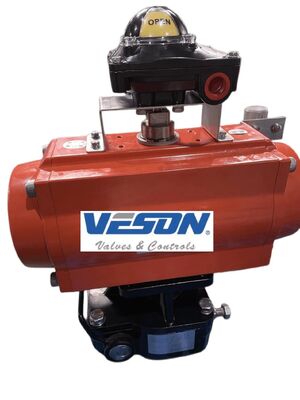

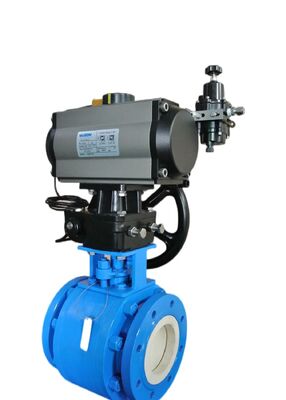

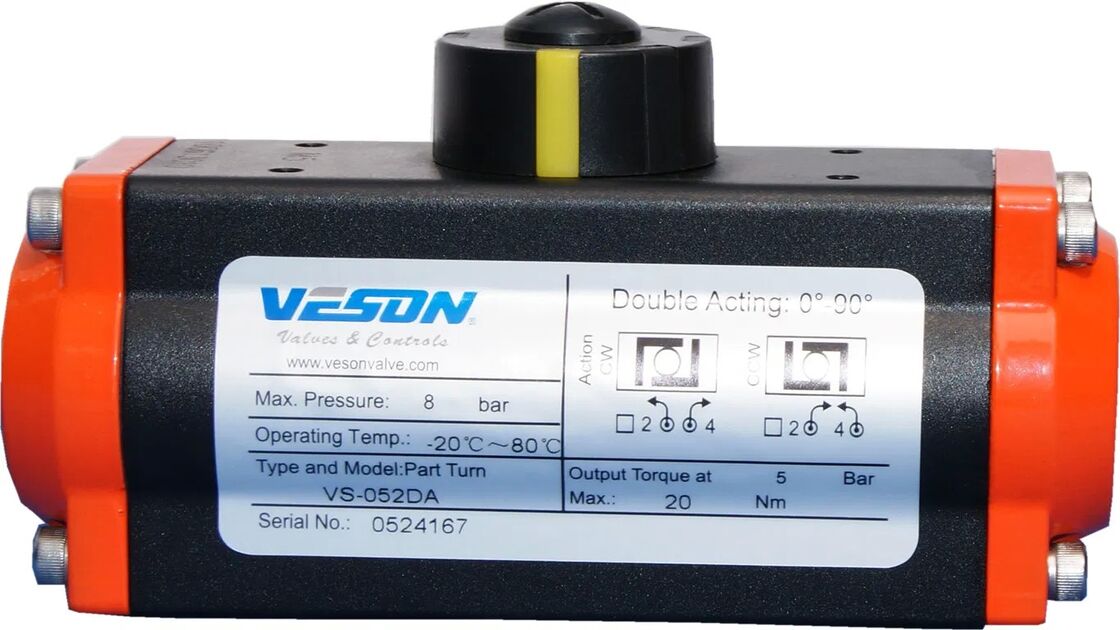

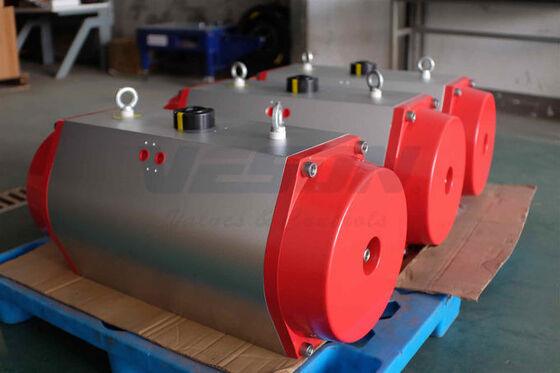

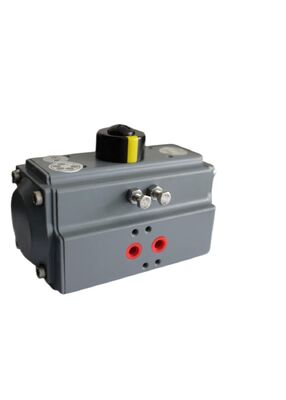

Hard Anodized Aluminum Double Acting Rack and Pinion Pneumatic Air Actuator for Valve Control

Hard Anodized Aluminum Double Acting Rack and Pinion Pneumatic Air Actuator for Valve Control

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity: 1
Get Best Price Contact Now

Detail Information
Model NO.: VS-052~VS-400 Adjusted Form: Switching Type
Working Type: Rotary Pressure: Low Pressure
Work Temperature: Normal Temperature Acting Type: Double Acting
Material: Aluminum Customized: Customized
Structure: Rack And Pinion Drive: Air Or Pneumatic
Sdv Esdv: Instrumentation Valve Transport Package: Woodenbox
Specification: CE, SGS Trademark: VESON
Origin: Shanghai China HS Code: 84123900
Production Capacity: 50000PC / Y
Highlight:

Hard Anodized Aluminum Pneumatic Air Actuator

,

Double Acting Valve Actuator

,

Rack and Pinion Rotary Actuator

Product Description

Hard Anodized Aluminum Double Acting Rack and Pinion Pneumatic Air Actuator for Valve Control 0Hard Anodized Aluminum Double Acting Rack and Pinion Pneumatic Air Actuator for Valve Control 1
  • Indicator
A position indicator with Namur mounting is standing on all VESON pneumatic actuator for mounting accessories.
  • Pinion
The hardened alloy steel pinion is precision ground and Nickel plated (over 15um) in order to reduce friction, provide maximum wear resistance. Full conformance with the newest standards of ISO5211 & DIN3337. The dimension can be customized and as options, stainless steel and aluminum alloy are also available.

  • Actuator Body
The aluminum extrusion is hard anodized (over 30um) to protect against wear and corrosion while reducing piston friction to the minimum. Other options as Epoxy Coated and PTFE Coated are available.

  • End Cap
Epoxy coated (over 80um) die casting aluminum end caps provide maximum resistant potentially corrosive elements. Other treatments such as PTFE Coated are available.

  • Piston
The precisely balanced and hard anodized treatment (over 30um) die casting aluminum piston are fitted with high quality and guides. The twin rack and pinion design creates a constant torque output on all actuators.

  • Travel Adjustment
The standard adjustment is ±5ºin both the open and closed positions through easily accessible external adjustment bolts.
  • High Performance Springs
The high tensile steel springs are coated with Epoxy coated for corrosion resistance and longer service. The pre-loaded springs can be safely & rapidly disassembled.

  • Bearings & Guides
The highly durable compound material provides high trust stability with minimum friction and long life.
Model# Air Supply Pressure (unit;psig)
  40 50 60 70 80 90 100 115
  Output Torque (in.lbs)
VS-032DA 38 48 57 67 76 86 95 109
VS-052DA 100 125 149 174 199 224 249 286
VS-063DA 180 225 269 314 359 404 449 516
VS-075DA 290 363 435 508 580 653 725 834
VS-083DA 354 443 532 620 709 797 886 1019
VS-092DA 560 701 841 981 1121 1261 1401 1611
VS-105DA 811 1014 1216 1419 1622 1824 2027 2331
VS-125DA 1437 1797 2156 2515 2874 3234 3593 4132
VS-140DA 2163 2704 3244 3785 4326 4866 5407 6218
VS-160DA 3296 4120 4943 5767 6591 7415 8239 9475
VS-190DA 5312 6640 7967 9295 10623 11951 13279 15271
VS-210DA 7300 9125 10950 12775 14600 16425 18250 20988
VS-240DA 11441 14302 17162 20022 22882 25743 28603 32893
VS-270DA 16090 20113 24135 28158 32180 36203 40225 46259
