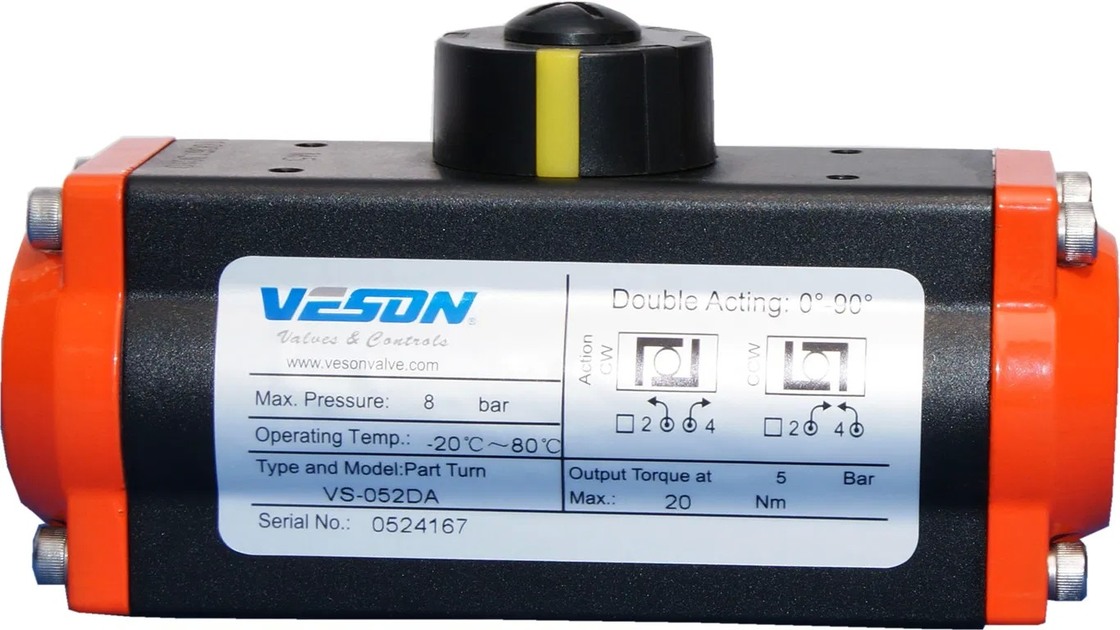

90-Degree Rotation Medium Pressure Normal Temperature Rack and Pinion Pneumatic Rotary Actuator
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Model NO.: | VS-052~VS-400 | Adjusted Form: | Switching Type |
|---|---|---|---|
| Working Type: | Rotary | Pressure: | Medium Pressure |
| Work Temperature: | Normal Temperature | Acting Type: | Spring Return |
| Material: | Aluminum | Structure: | Rack And Pinion |
| Rotary Motion: | 0-90 | Production Capacity: | 50000PC / Y |
| Operating Principle: | Converts Compressed Air Into Rotary Motion | Construction: | Cylinder Housing, Piston, Rack And Pinion |
| Rotary Motion Control: | Precise Control Over Rotation Angle | Compact Design: | High Torque In Small Package |
| Response Time: | Fast Actuation | ||
| Highlight: | 90-Degree Rotation Pneumatic Actuator,Medium Pressure Rotary Actuator,Normal Temperature Rack and Pinion Actuator |
||
Product Description
Air Torque Type Valve Cylinder Rotary Pneumatic Actuator
Pneumatic Quarter-Turn Actuator / Pneumatic Rotary Valve Actuator / Air Gear Actuator
A rack and pinion pneumatic actuator converts compressed air pressure into precise rotary motion for industrial applications. This robust mechanism delivers reliable performance in demanding environments.
Key Features and Benefits
- Precise Motion Control: Converts linear piston movement into accurate 90° rotary motion
- Compact Design: High torque output in a space-efficient package
- Rapid Response: Fast actuation for time-sensitive operations
- Durable Construction: Aluminum or stainless steel housing withstands harsh conditions
- Easy Integration: Direct valve mounting with Namur-compatible position indicator
- Versatile Applications: Suitable for process control, automation, HVAC, and fluid handling systems
Technical Specifications
| Aspect | Description |
|---|---|
| Definition | Mechanical device for 90° valve rotation control |
| Working Principle | Converts pneumatic energy to mechanical motion |
| Key Components |
|
| Advantages |
|
| Applications | Industrial processes, HVAC systems, automation |
Product Images
For optimal performance, consider torque requirements, operating pressure, and environmental conditions when selecting this actuator for your specific application.
