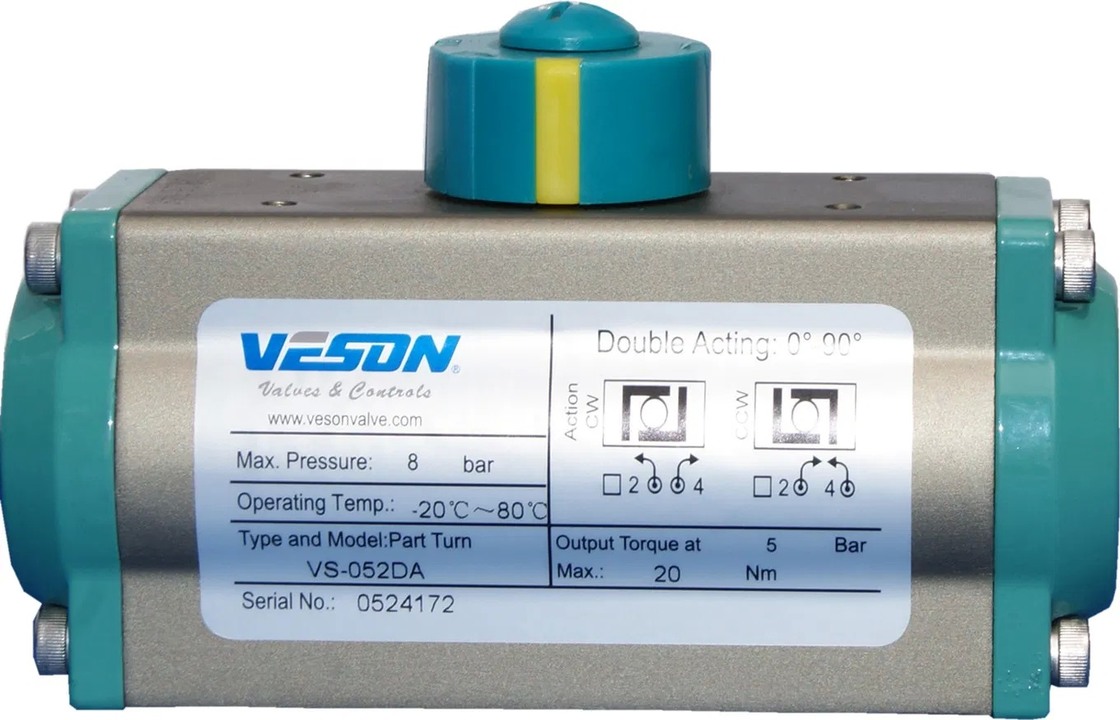

ISO5211 DIN3337 Standard Hard Anodized Aluminum Pneumatic Air Actuator with Double-acting Cylinder
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Model NO.: | VS-052~VS-400 | Power: | Pneumatic |
|---|---|---|---|
| Pressure Direction: | Double-acting Cylinder | Pinion Material: | Hardened Alloy Steel |
| Pinion Plating: | Nickel Plated (over 15um) | Actuator Body Material: | Aluminum Extrusion |
| Actuator Body Treatment: | Hard Anodized (over 30um) | End Cap Material: | Die Casting Aluminum |
| End Cap Treatment: | Epoxy Coated (over 80um) | Piston Material: | Die Casting Aluminum |
| Piston Treatment: | Hard Anodized (over 30um) | Travel Adjustment: | ±5º |
| Spring Material: | High Tensile Steel | Spring Treatment: | Epoxy Coated |
| Bearings Material: | Highly Durable Compound | ||
| Highlight: | ISO5211 Standard Pneumatic Actuator,DIN3337 Standard Air Actuator,Hard Anodized Pneumatic Air Actuator |
||
Product Description
Actreg Type Aluminum Pneumatic Actuator
Position Indicator
Features a position indicator with Namur mounting for easy accessory attachment, standard on all VESON pneumatic actuators.
Precision Pinion
- Hardened alloy steel construction with precision grinding
- Nickel plated (over 15μm) for reduced friction and maximum wear resistance
- Fully compliant with ISO5211 & DIN3337 standards
- Customizable dimensions available
- Optional materials: stainless steel and aluminum alloy
Durable Actuator Body
Constructed from hard anodized (over 30μm) aluminum extrusion for superior wear and corrosion resistance while minimizing piston friction.
Optional coatings: Epoxy Coated and PTFE Coated versions available.
Robust End Caps
Epoxy coated (over 80μm) die-cast aluminum end caps provide exceptional resistance against corrosive elements.
Optional treatments include PTFE Coating.
Precision Piston
- Precisely balanced die-cast aluminum construction
- Hard anodized treatment (over 30μm) for durability
- Fitted with high-quality guides
- Twin rack and pinion design ensures constant torque output
Adjustable Travel
Standard adjustment of ±5° in both open and closed positions via easily accessible external adjustment bolts.
High Performance Springs
- High tensile steel construction with epoxy coating for corrosion resistance
- Extended service life
- Pre-loaded design for safe and rapid disassembly
Premium Bearings & Guides
Highly durable compound material provides exceptional thrust stability with minimal friction for extended operational life.
