ISO5211 Standard VS-052~VS-400 Model Pneumatic Actuator with 6 Bar Air Supply for Industrial and Water Applications
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Model NO.: | VS-052~VS-400 | Driving Mode: | Pneumatic |
|---|---|---|---|
| Nominal Pressure: | PN1.0-32.0MPa | Channel Type: | Straight Through |
| Structure: | Piston | Actuator Type: | Rack & Pinion |
| Temperature Range: | Normal Temperature | Output Torque: | 9NM To 4620Nm |
| Air Supply: | 6 Bar | Stroke Adjustment: | +/- 5 Degree |
| Anodized Treatment: | 20um | Epoxy Coating: | 100um |
| Salt Spray Test: | 500 Hours | Coating Options: | PTFE, Nickel, Epoxy, Polyester, Ceramic |
| Production Capacity: | 50000PC / Y | ||
| Highlight: | ISO5211 Standard Pneumatic Actuator,VS-052~VS-400 Model Pneumatic Air Actuator,6 Bar Air Supply VS Series Actuator |
||
Product Description

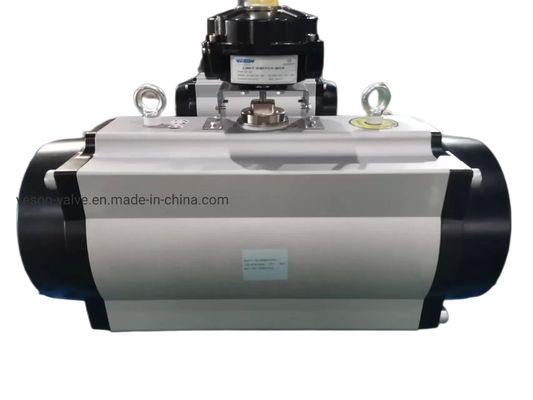

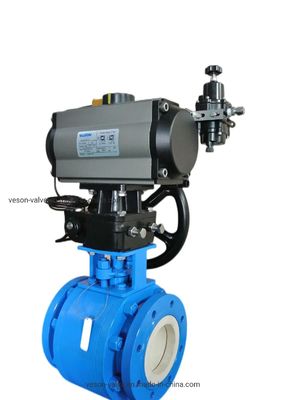

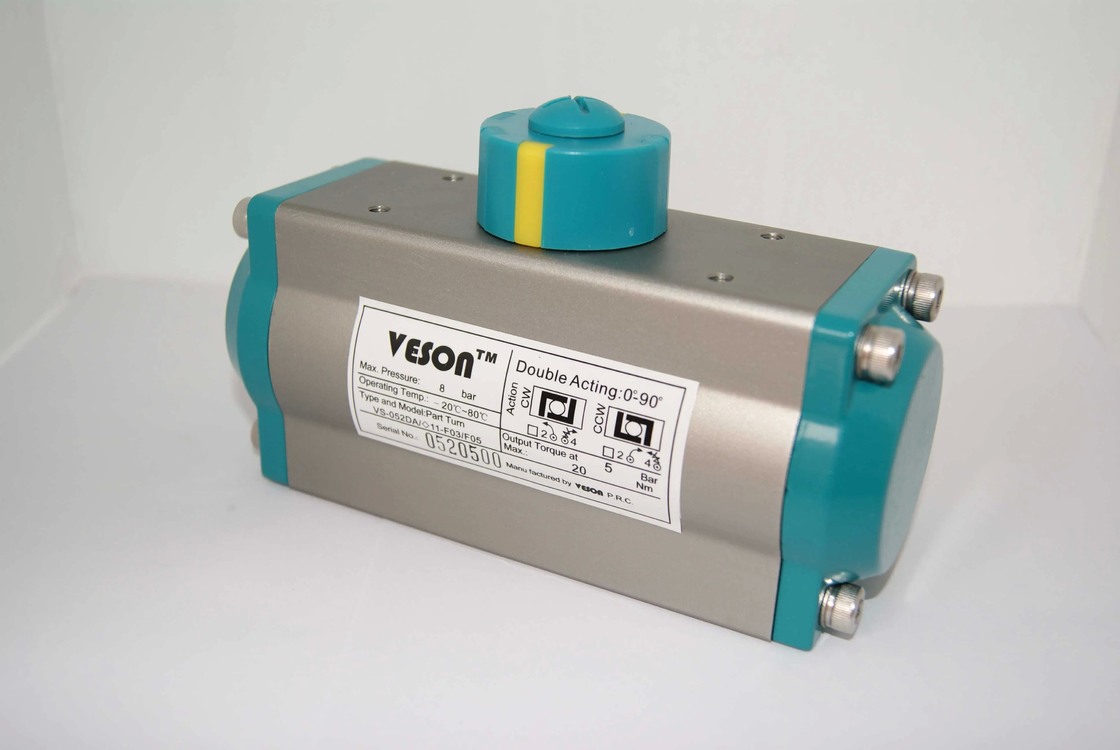

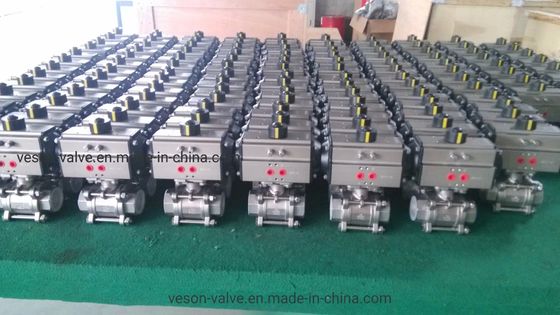

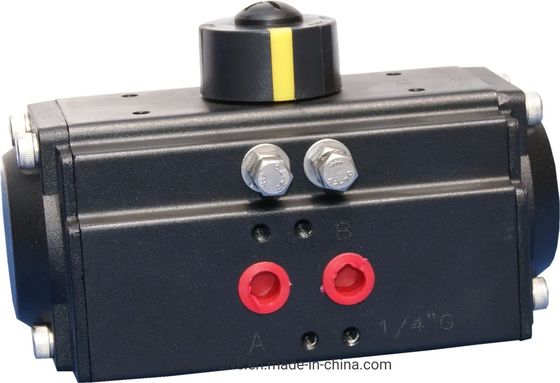

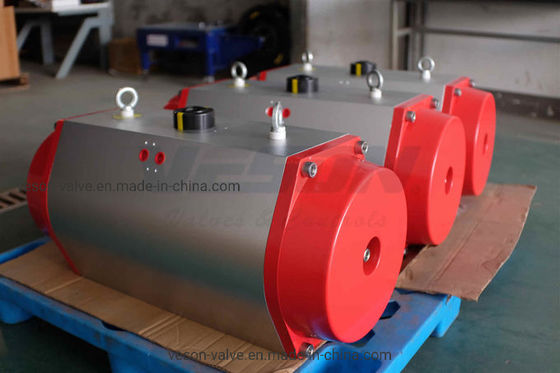

Pneumatic Actuator (VS-052) VS Series Pneumatic Actuators (Rack & Pinion)
Product Features
- 15 actuator models available with output torque ranging from 9NM to 4620Nm at 6 bar air supply
- Bottom drilling complies with ISO5211/DIN3337 standards for valve compatibility
- Interface for solenoid valve, shaft top end and top drilling for accessories comply with VDI/VDE3845 (Namur) standard
- ±5 degree stroke adjustment capability
- Actuator body & piston feature 20μm hard anodized treatment
- End caps with over 100μm epoxy coating meeting ASTM B117 qualification
- Passed 500+ hours salt spray test with no corrosion
- Available in multiple end cap colors (blue, black, grey, yellow, etc.) upon request
- Optional protective coatings: PTFE, Nickel, Epoxy, Polyester and Ceramic for corrosive/abrasive environments
Product Images
